Philips 17389/**/PN Outdoor Wall Light User Manual
Quick guide for the Philips 17389/**/PN outdoor wall light. Includes installation steps, wiring instructions, bulb requirements, and safety precautions.
Quick answers from the manual
Quick answer
- This manual provides installation instructions for the Philips 17389/**/PN outdoor wall light, including wiring and bulb replacement. p. 1, 3, 4, 5
Key actions
- Turn off power before installation p. 3
- Install E27 bulb (max 42W) p. 5
First start
- Ensure power is off, mount the base, connect wires, install bulb, and reassemble. p. 3, 4, 5, 6
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Base | E27 | Standard screw base | p. 2 |
| Max Wattage | 42W | Maximum power rating | p. 2 |
| Ingress Protection | IPX4 | Splash-proof | p. 2 |
Where to find it in the PDF
- Installation Steps p. 3, 4, 5, 6
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation instructions for the Philips 17389/**/PN outdoor wall light. Before starting, ensure the power supply is turned off at the main circuit breaker. The light is rated IPX4, making it suitable for outdoor use.
Installation
Tools required: Drill, screwdriver, and utility knife.
- Power Off: Switch off the electricity at the circuit breaker.
- Disassembly: Unscrew the housing from the base.
- Preparation: Prepare the wall surface and insert the rubber grommet for the cable.

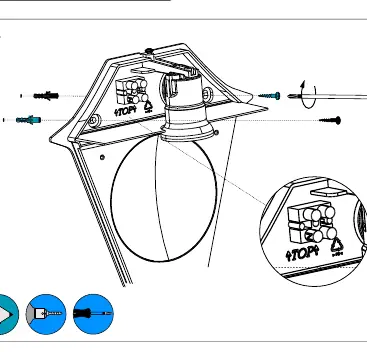

- Mounting: Secure the base to the wall using the provided screws and wall plugs.
- Wiring: Connect the electrical wires to the terminal block.
- Bulb Installation: Insert an E27 bulb (maximum 42W).
- Reassembly: Attach the housing back to the base and secure it with screws.
- Power On: Switch the electricity back on at the circuit breaker.
Technical specifications
- Bulb type: E27
- Maximum wattage: 42W
- Ingress protection: IPX4 (Splash-proof)
Manufacturer information
Philips
Practical help
Common problems
Light does not turn on
Check if the bulb is properly installed and the power supply is switched on at the circuit breaker.
Before use
- Ensure power is turned off at the circuit breaker
- Gather tools: drill, screwdriver, utility knife
- Verify bulb type is E27
- Check that the mounting surface is suitable
