Powerology GaN 170W Universal Charger

Product Overview

The Powerology GaN 170W Universal Charger is a high-performance charging solution designed for home, office, and travel. Utilizing advanced GaN technology, it delivers up to 170W of power across four charging ports, enabling simultaneous charging for laptops and other electronic devices. It is capable of charging a laptop from 0% to 60% in approximately 35 minutes and is compatible with outlets in over 150 countries.

Specifications

• Model Number: PWC042
• Input: 100-250V, 10A Max
• Rated Power: 2500W
• USB-C1/C2 Output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A (140W)
• USB-C3 Output: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A (30W)
• USB-A1 Output: 5V/3A, 9V/2A, 12V/1.5A (18W)

Operation Instructions

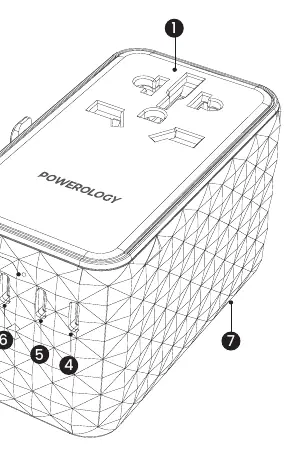

The adapter features built-in multi-nation plugs. To use, press the button and slide the knob to extend the desired plug type. The mechanism automatically locks other pins when one is selected. Ensure the button is fully reset after extending the plug. To retract, press and hold the corresponding button while pulling the plug back into the housing.

Safety Notes

• This device does not convert voltage (AC-AC). Ensure your device is compatible with the local power outlet voltage.
• For indoor use only.
• Do not use permanently; this is a temporary travel adapter.
• Do not insert one adapter into another.
• Designed for use with unearthed or double-insulated appliances only.
• Always disconnect when not in use.

Troubleshooting and Maintenance

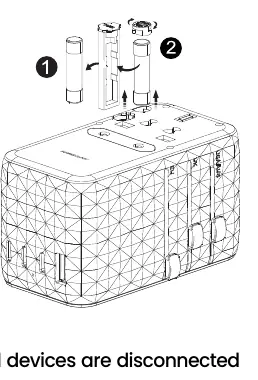

If the LED indicator does not light up, the device may be overloaded or the fuse may have blown. To resolve an overload, unplug one connected device. If the fuse has blown, it can be replaced. Ensure all devices are disconnected before replacing the fuse with a 250Vac 10A, 6.3x25.4mm standard fuse. Ensure the unit is dry and free of water before use.

Disposal

This product must not be disposed of as unsorted household waste. Please follow local waste management regulations for proper treatment and recycling.
