Rockville RDF9U 1U 15A Rack Mount Power Supply

Product Overview

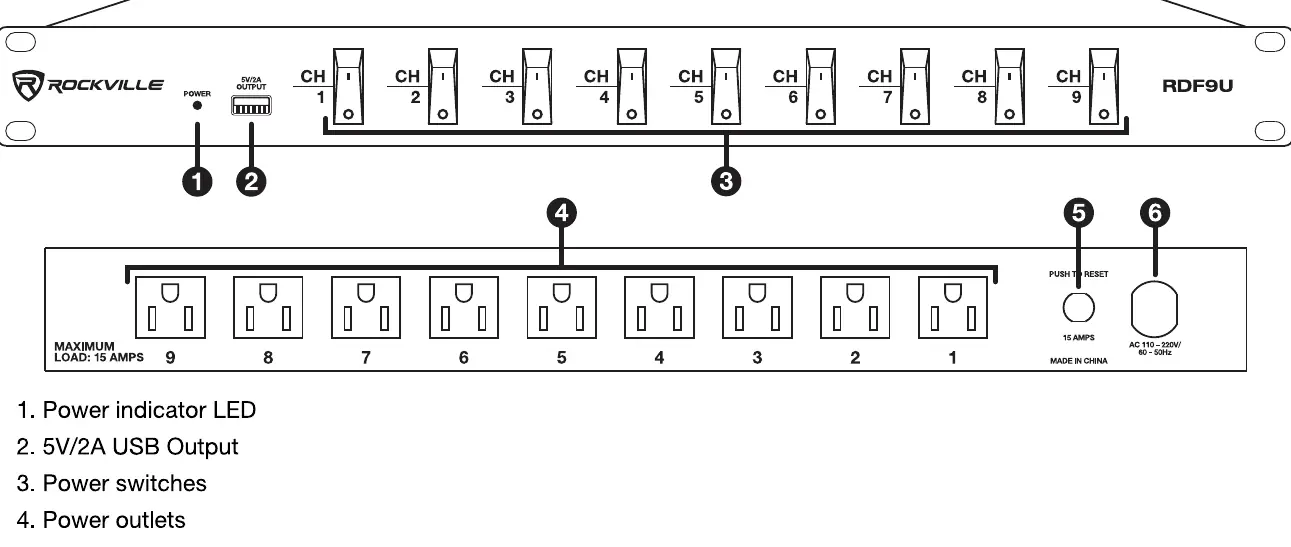

The Rockville RDF9U is a professional-grade 1U rack-mountable power supply designed to organize and protect your audio and lighting equipment. It features nine individual power outlets on the rear, each controlled by a dedicated switch on the front panel, allowing for precise control over your connected devices. The unit is built with a durable steel chassis and includes a 5V/2A USB charging port for mobile devices.

Safety Instructions

To ensure safe operation and prevent electrical shock, please adhere to the following guidelines:

• Never open the unit; there are no user-serviceable parts inside. Refer all service to authorized personnel.
• Do not expose the unit to moisture or liquids.
• Ensure the unit is installed in a well-ventilated area.
• Place the unit on a level and stable surface.

Operation

Before connecting any equipment, ensure all front-panel power switches are in the off position. Connect the RDF9U to a standard wall outlet. Plug your 110V/220V devices into the rear outlets and use the corresponding front switches to toggle power. The integrated USB port provides 5V power for compatible devices.

Technical Specifications

• Outlets: 9 rear-mounted 3-prong outlets
• Maximum Load: 15 Amps or 1800 Watts
• Protection: Built-in 15A resettable circuit breaker, surge and spike protection
• Energy Dissipation: 150 Joules
• Peak Impulse Current: 1200 Amps
• Operating Voltage: 110V-220V, 50/60Hz
• Dimensions: 19 inches x 1.8 inches x 3.9 inches
• Power Cord: 6-foot, 3 x 14 AWG

Troubleshooting

If there is no power to the AC outlets, first check the resettable circuit breaker located on the rear of the unit. If the button has popped out, unplug the device and press the button to reset it. Additionally, verify that the unit is securely plugged into a wall outlet and that the power cable is not damaged.
