User Manual for SAL VBT 1100/BL & VBT 1100/RD Car Radio and MP3/WMA Player
Comprehensive user manual for the SAL VBT 1100/BL and VBT 1100/RD car radio and MP3/WMA player, covering installation, safety, operation, and troubleshooting.
Table of contents
Product Overview
The SAL VBT 1100/BL and VBT 1100/RD are car radio and MP3/WMA players designed for vehicles with a 12V negative ground electrical system. Key features include wireless BT connectivity for music streaming and hands-free calling, an integrated microphone, 18 FM radio presets, USB and SD card playback, and a 3.5mm AUX input. The unit provides 4 x 45W Hi-Fi speaker output and includes RCA outputs for connecting an external amplifier or active subwoofer.
Safety and Installation

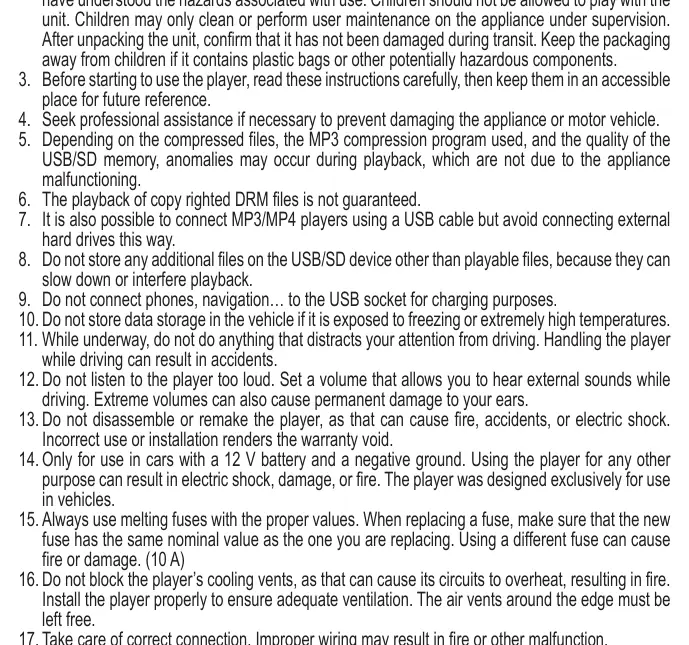

Important: Installation must be performed by a qualified specialist. Before starting, disconnect the vehicle battery's negative terminal to prevent short circuits. Ensure the unit is installed in a location that does not obstruct safe vehicle operation. Do not connect speaker wires to the vehicle chassis or ground. Ensure proper ventilation around the unit to prevent overheating. The device is designed for use in temperatures between 0°C and +40°C.
Operation
Use the rotary knob to adjust volume and navigate menu settings (bass, treble, balance, loudness, EQ). The unit automatically detects and plays music when a USB or SD device is inserted. Use the MOD button to switch between radio, USB/SD, BT, and AUX modes. The radio features both automatic and manual tuning for FM stations.
Maintenance and Troubleshooting
Clean the unit with a soft, dry cloth and brush; do not use cleaning agents or liquids. If the unit malfunctions, press the RESET button on the front panel with a thin, pointed object for 2 seconds. If the radio fails to power on, check the fuse (10A) and the wiring connections (red for ignition, yellow for constant battery memory). For radio reception issues, ensure the antenna is fully extended and properly connected.
Contact
For further information or support, visit the official website at www.somogyi.hu or contact the manufacturer, Somogyi Elektronic Kft., at the address provided in the manual.
Official resources from the manual
Practical help
Common problems
Unit does not turn on or has no display.
Check if the car ignition is on, verify the red (power) and yellow (memory) wire connections, and check if the 10A fuse is blown.
Radio loses saved stations or settings.
The memory power supply is likely interrupted when the ignition is turned off. Check the yellow wire connection to the battery.
Radio does not tune to stations automatically.
Ensure the antenna is fully extended and properly grounded. If in an area with weak signal, use manual tuning.
Playback from USB/SD is noisy or fails.
Ensure the file format is supported (MP3/WMA) and the memory is formatted as FAT32 (not NTFS). Clean the connector if necessary.
Before use
- Disconnect the vehicle battery's negative terminal before wiring.
- Ensure the vehicle has a 12V system with negative ground.
- Verify that the 10A fuse is installed.
- Ensure the unit is at a temperature between 0°C and +40°C before switching on.
- Perform a factory reset using the RST button after installation.
Specs in practice
- 12V Negative Ground
- The unit is exclusively designed for vehicles with this specific electrical system.
Images and diagrams
- Figure 1 shows the front panel layout, including the power button, volume/menu selector, and various playback control buttons.
- Figure 2 illustrates the rear connections, including the DIN antenna socket, 4xRCA outputs, and ISO power/speaker connectors.
Model compatibility
- Only for use in cars with a 12V battery and negative ground.
- Do not connect external hard drives to the USB socket.
- Do not use the USB socket for charging mobile phones or navigation devices.
- The remote controller uses a CR2025 3V button battery.
Manual page author
David Miller
Documentation analyst
Organizes user manual content into clear summaries, with attention to model details, product context, and everyday usability.
