Schneider Electric SmartSocket Single 16A
The SmartSocket Single 16A allows for remote control and power consumption monitoring of connected electrical loads, featuring built-in temperature protection and Zigbee 3.0 connectivity.
Table of contents
About the Product
The SmartSocket Single 16A is a smart electrical outlet designed to provide remote control and real-time monitoring of power consumption for connected devices. It is equipped with an integrated temperature protection mechanism that automatically switches off the socket if high loads are detected over an extended period to prevent overheating.
Safety Information
Danger: Electrical installation must be performed exclusively by qualified professionals. Improper installation poses a severe risk of electric shock, explosion, or arc flash. Ensure the device is disconnected from the circuit during any insulation resistance testing to avoid equipment damage.

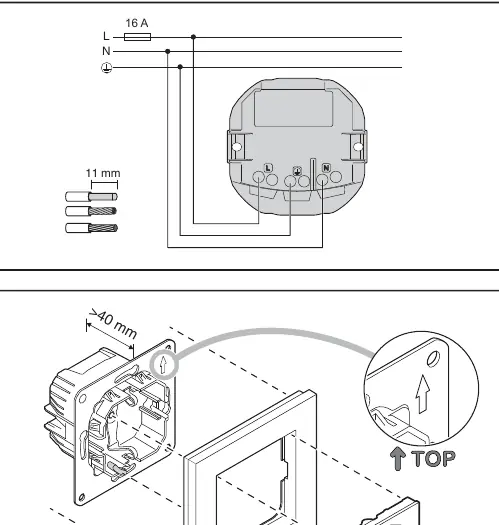

Installation and Operation
The device is designed for standard electrical network integration. Ensure that the wiring is performed according to local regulations. The socket supports Zigbee 3.0 communication, allowing it to be paired with a Wiser Home system or other compatible platforms. For detailed configuration, pairing, and advanced operation, please scan the QR code provided in the documentation to access the full online user guide.
Important Usage Tips
- Do not connect devices that require a permanent, uninterrupted power supply.
- Avoid mixing different types of electrical loads within the same socket.
- Do not use multi-socket adapters or extension leads in the controlled outlet.
- This device is strictly prohibited for use in electric vehicle (EV) charging.
Technical Specifications
- Nominal Voltage: AC 230 V, 50 Hz
- Standby Power: Max 0.4 W
- Connection Terminals: Max 2 x 2.5 mm²
- Operating Frequency: 2405–2480 MHz
- Radio Frequency Power:< 10 mW
- Protection Rating: IP20
- Measurement Accuracy: ± 1% for loads > 25 W
Maintenance and Disposal
The device does not require specific maintenance. If the unit reaches the end of its service life, it must be disposed of separately from household waste at an official collection point. Professional recycling helps mitigate potential negative environmental and health impacts.
