Stoves 100cm Chimney Cooker Hood Installation Guide
Comprehensive installation instructions for the Stoves 100cm chimney cooker hood, covering both extraction and recirculation modes, mounting procedures, and filter setup.
Table of contents
Manual images
Jump to the sectionProduct Overview
The Stoves 100cm chimney cooker hood is a high-performance appliance designed to effectively remove cooking vapors and odors from your kitchen. This manual provides detailed instructions for both ducted extraction and recirculation modes, ensuring optimal performance and safety during installation.
Safety and Preparation
Before beginning the installation, it is essential to read the safety information provided in the main user manual. Ensure that the installation area is clear and that you have all necessary tools. The hood must be installed at a minimum distance of 65 cm from the cooking surface to ensure safety and efficiency. Always wear protective gloves during the installation process to prevent injury from sharp edges.
Installation Modes
The cooker hood can be configured in two ways:
- Extraction Mode: Vapors are vented outside through a ducting pipe. This requires a 120mm or 150mm diameter pipe.
- Recirculation Mode: Air is filtered through charcoal filters and returned to the kitchen. This requires the installation of charcoal filters and an air deflector.
Mounting Procedure
The installation involves securing the mounting brackets to the wall, aligning the hood with the center of the cooking surface, and attaching the chimney sections. Use the provided screws and wall plugs to ensure a stable fit. The telescopic chimney sections allow for height adjustment to suit your kitchen layout. Ensure that all electrical connections are made according to local regulations and that the unit is securely fastened to the wall.
Maintenance and Filters
Regular maintenance is crucial for the longevity and efficiency of your cooker hood. The grease filters should be cleaned periodically to prevent buildup. If using the hood in recirculation mode, the charcoal filters must be replaced regularly to maintain effective odor removal. Always disconnect the power supply before performing any maintenance tasks or replacing filters.
Manufacturer information
Stoves
Practical help
Common problems
Hood not extracting properly
Check if the ducting is blocked or if the charcoal filters in recirculation mode are saturated and need replacement.
Unstable mounting
Ensure all mounting brackets are securely fixed to the wall using the provided screws and wall plugs, and that the chimney sections are properly aligned.
Before use
- Read all safety information in the user manual.
- Ensure a minimum distance of 65 cm from the hob.
- Verify the wall structure can support the weight of the hood.
- Choose between extraction or recirculation mode.
- Wear protective gloves during installation.
- Check that all necessary mounting hardware is present.
Specs in practice
- Minimum distance (65 cm)
- The required safety gap between the hob and the bottom of the hood to prevent fire hazards.
- Ducting diameter (120/150 mm)
- The required size for the exhaust pipe when using the hood in extraction mode.
Images and diagrams

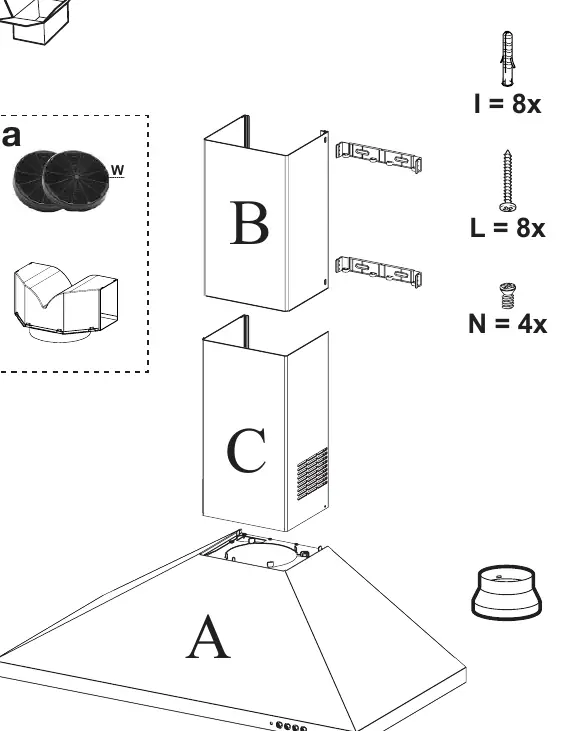

- Page 3 shows the components: main hood (A), chimney sections (B, C), and mounting hardware.
- Page 4 illustrates the safety distance and the two operating modes (extraction vs. recirculation).
- Page 7 details the wall drilling template and bracket positioning.
- Page 9-10 shows the assembly of the chimney sections and the installation of the charcoal filters.
Model compatibility
- Compatible with 120mm or 150mm ducting for extraction.
- Requires specific charcoal filters for recirculation mode.
