User Guide for Systemair EC-BASIC-U Universal 0-10V Controller
Quick guide for the Systemair EC-BASIC-U Universal 0-10V Controller. Learn about installation, wiring, technical specifications, and jumper settings for direct or reverse action.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
The Systemair EC-BASIC-U is a universal controller designed to regulate EC fans using a 0-10V signal. It utilizes a PI algorithm to compare input signals with an adjustable set point. The device is compatible with both 220V single-phase and 380V three-phase EC fans. Key configuration is performed via jumper JP1 to select between direct or reverse action.
Description
The controller is designed for demand-controlled ventilation. It is simple to install and connect, accepting 0-10V inputs from various control sensors or Building Management Systems (BMS). It conforms to CE standards EN 60730-1, EN 61000-6-3, and EN 61000-6-1.
Technical parameters
- Voltage: 85-265 V
- Power consumption: max 0.46 W
- Frequency: 50/60 Hz
- Temperature range: -20 to 50 °C
- Working range: 0-100%

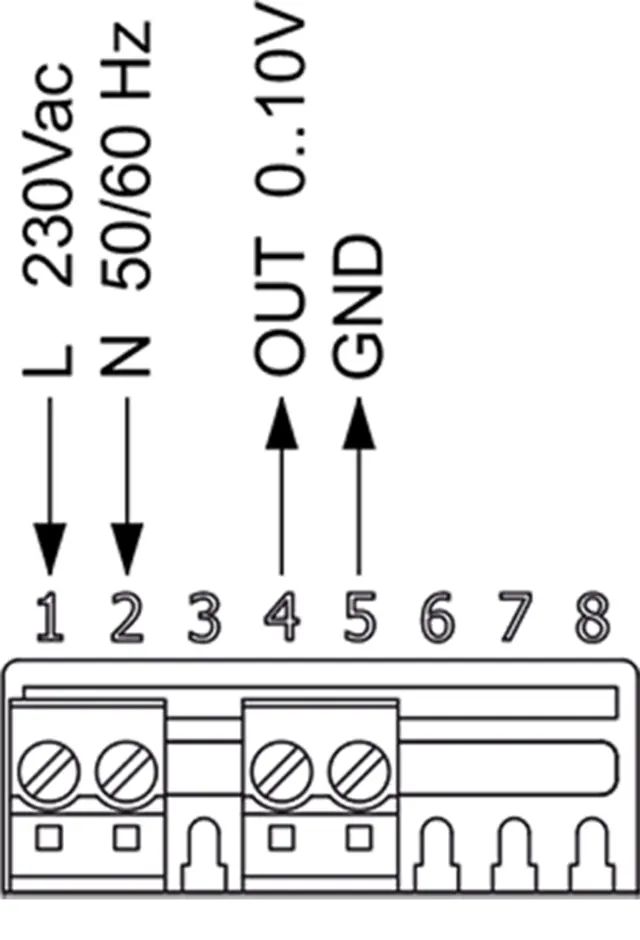

Wiring
The wiring terminal block allows for power input and signal output. Ensure connections are made according to the following layout:
- Terminal 1: L (230Vac)
- Terminal 2: N (50/60 Hz)
- Terminal 4: OUT 0..10V
- Terminal 5: GND
Configuration
The controller's behavior is determined by the setting of jumper JP1:
- JP1 closed 1-2: Reverse action
- JP1 closed 2-3: Direct action
Accessories
The following electric accessories are compatible with the controller:
- Systemair-1M CO2 duct sensor (14908)
- Systemair-1 CO2 duct sensor (14906)
- Systemair-2 CO2 duct sensor (14907)
Contact Information
For support, you can contact Puravent at 0845 6880112 or via email at [email protected]. The office is located at Puravent, Adremit Limited, Unit 5a, Commercial Yard, Settle, North Yorkshire, BD24 9RH.
Practical help
Common problems
Fan operates in the wrong direction (e.g., speed increases when it should decrease)
Check the jumper JP1 setting. JP1 closed 1-2 sets reverse action, while JP1 closed 2-3 sets direct action.
Before use
- Verify the power supply is within the 85-265V range.
- Ensure the connected fan is a compatible EC fan (220V single phase or 380V three phase).
- Confirm the control sensor or BMS provides a 0-10V signal.
- Check that the ambient temperature is between -20 and 50 °C.
Specs in practice
- Power consumption
- The controller is energy efficient, consuming a maximum of 0.46 W.
- Working range
- The output signal range is 0-100%.
Images and diagrams
- Terminals 1 and 2 are for the 230Vac power supply (L and N).
- Terminal 4 provides the 0-10V output signal.
- Terminal 5 is the GND (Ground) connection.
Model compatibility
- Compatible with 220V single phase EC fans.
- Compatible with 380V three phase EC fans.
- Accepts 0-10V input from any control sensor or BMS.
