Thule Yepp Nexxt 2 Mini Bicycle Seat User Guide
Quick guide for the Thule Yepp Nexxt 2 Mini front-mounted child bike seat. Includes installation instructions, safety warnings, usage limits, and maintenance tips.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential installation and safety information for the Thule Yepp Nexxt 2 Mini front-mounted child bike seat. Always ensure the seat is correctly installed and the child is securely fastened before every ride.
Safety and Usage Limits
- Age range: 9 to 36 months.
- Weight capacity: 9 to 15 kg (20 to 33 lbs).
- Height limit: Maximum 93 cm (36.61 inches).
- Speed limit: Maximum 25 km/h (15 mph).
- Conditions: Do not use in extreme weather or on rough terrain.
- Safety: Never leave the child unattended in the seat. Always use a helmet.
Installation
The seat is designed for front mounting on a bicycle handlebar stem. Two installation alternatives are provided depending on the bike's stem configuration:
- Alternative 1: Standard stem mounting (pages 16-18).
- Alternative 2: Alternative stem mounting (pages 19-23).
- Ensure all bolts are tightened to 6 Nm.
- Verify the seat is level and securely locked before use.
Operation and Maintenance
- Securing the child: Use the harness system. Ensure the buckle clicks securely. Adjust straps to fit snugly.
- Footrests: Adjust footrests to the child's height and secure with straps.
- Locking: The seat includes a key-operated lock to secure it to the bike. Keep your key number safe.
- Cleaning: Clean with mild soap and water. Do not use harsh chemicals.
- Storage: Store in a dry place, protected from direct sunlight and extreme temperatures.
Contact
Thule Sweden AB, Borggatan 5, 335 73 Hillerstorp, Sweden. Email: [email protected]. Website: www.thule.com.
Official resources from the manual
Manufacturer information
Thule
Practical help
Common problems
Seat is not level after installation
Loosen the mounting bolts, adjust the seat position until level, and re-tighten to 6 Nm.
Harness is difficult to adjust
Ensure the harness straps are not twisted and the release mechanism is fully engaged.
Before use
- Check that the seat is securely locked to the bike mount.
- Ensure the child is wearing a properly fitted helmet.
- Verify that the harness is buckled and adjusted snugly.
- Check that footrest straps are secure.
- Confirm the bike's brakes and lights are functional with the seat installed.
Images and diagrams
- Pages 16-23 detail the two mounting alternatives for different stem types.
- Page 24 shows how to attach the seat shell and footrests to the mounting bracket.

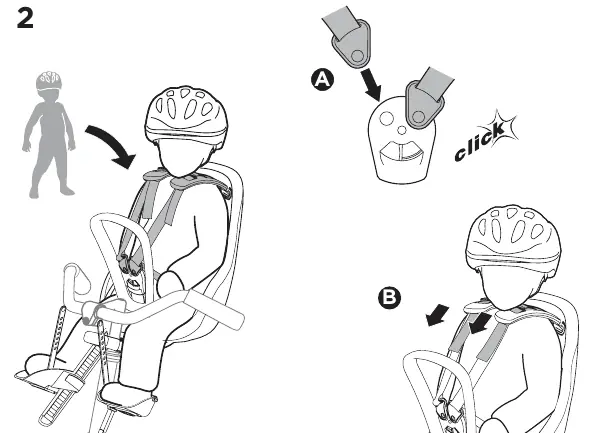

- Page 28-29 illustrates the harness adjustment and securing the child.
Model compatibility
- Compatible with bicycle stems with a diameter of 20-28.6 mm (0.87-1.125 inch).
- Requires a minimum of 21 mm (0.83 inch) of space on the stem.
