Tiny Love Take Along Mobile Instruction Manual
Quick guide for the Tiny Love Take Along Mobile. Includes installation instructions for cribs, play yards, and strollers, battery replacement steps, and operating modes.
Table of contents
Quick guide from the manual
The Tiny Love Take Along Mobile is designed for babies from birth to 5 months. It provides visual stimulation and music. It is intended to be attached to cribs, play yards, or strollers. Important: Remove the mobile when the child begins to push up on hands and knees to prevent entanglement injuries. Never use this product in a motor vehicle.
Product Overview
The mobile consists of the main mobile unit and a 2-part connector arm. It operates on 3 x AA (1.5V) alkaline batteries (not included).
Battery Installation
- Loosen the screw on the battery compartment using a crosshead screwdriver.
- Open the compartment and insert 3 new AA alkaline batteries, ensuring correct polarity.
- Replace the cover and tighten the screw securely.
Installation
Attaching to Cribs, Play Yards, or Travel Cots
- Click the two parts of the connector arm together.
- Locate a sturdy, hard edge on the crib or play yard. Do not attach to soft material edges.
- Place the mobile on the edge and turn the ring at the bottom of the connector arm clockwise to tighten.
- Ensure the mobile is securely attached and does not swing.
- Loop the Velcro strap through the plastic handle of the mobile and secure it by pressing both sides together.

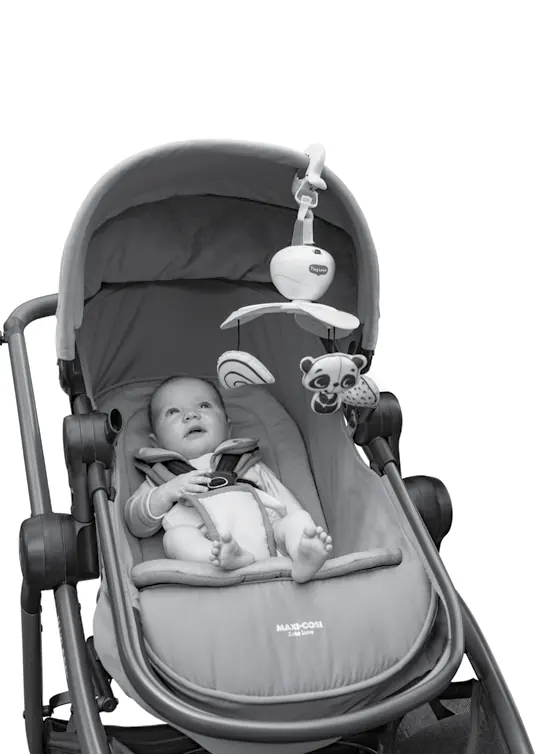

Attaching to Strollers
- Thread the Velcro strap through the loop of the alligator clip.
- Thread the Velcro strap through the plastic buckle and secure it by pressing both sides together.
- Clip the mobile onto the stroller canopy.
Operation
The mobile has three modes: MUTE, ON, and OFF.
- ON: Slide the switch to the "ON" position. The mobile will play continuous music for 30 minutes and rotate. It plays 5 melodies consecutively, each for about one minute. After 30 minutes, it turns off automatically. To continue playing, slide the switch to "OFF" and then back to "ON".
- MUTE: Slide the switch to the "MUTE" position to operate the mobile without music.
- OFF: Slide the switch to the "OFF" position to stop the mobile.
Cleaning and Maintenance
- Use a damp cloth to wipe clean.
- Do not submerge any part of the product in water.
- Remove batteries for long-term storage or periods of non-use.
Manufacturer information
Tiny Love
Practical help
Common problems
Mobile does not turn on or music stops
Check if batteries are installed correctly with the right polarity. Replace with 3 new AA alkaline batteries.
Mobile swings or is unstable
Ensure the connector arm is tightened securely to a hard, sturdy edge. Do not attach to soft material edges.
Before use
- Ensure you have a Philips (crosshead) screwdriver for battery installation.
- Check that all contact surfaces are clean and bright before installing batteries.
- Verify that the crib/play yard edge is hard and sturdy.
- Ensure the connector arm is tightened clockwise.
- Confirm the mobile is securely attached and does not swing.
Specs in practice
- Age Suitability
- Suitable for babies from birth to 5 months.
- Operating Time
- The mobile plays music and rotates for 30 minutes before turning off automatically.
Images and diagrams
- Figure 1-2: Battery compartment location and installation.
- Figure 3-5: Assembly and attachment to cribs/play yards using the connector arm.
- Figure 7-9: Attachment to strollers using the alligator clip.
- Figure 10: Operating switch positions (MUTE/ON/OFF).
Model compatibility
- Compatible with most travel cots, play yards, bassinets, and strollers.
- Not for use in motor vehicles.
- Remove when the child starts to push up on hands and knees.
