Bright Starts 5-in-1 Your Way Ball Play Activity Gym & Ball Pit

Quick guide from the manual

The Bright Starts 5-in-1 Your Way Ball Play Activity Gym & Ball Pit is designed for infant play. It features multiple modes, including an activity gym and a ball pit. Key requirements include adult assembly, the use of 3 AA/LR6 alkaline batteries, and strict adherence to safety guidelines regarding placement and supervision.

Safety warnings

• Adult supervision is required at all times.
• Never leave the child unattended.
• Do not allow babies to sleep on this product.
• Do not use in a crib, play yard, or on elevated surfaces like tables or countertops. Use only on the floor.
• Do not use on soft surfaces (bed, sofa, cushion) as the unit may tip over and cause suffocation.
• Do not add additional strings or straps.
• Do not connect links to form a chain longer than 12 inches (30 cm).
• The toy bars are under tension; grasp firmly and release slowly to avoid injury.

Parts list

• Play mat
• Toy bar assembly
• Elephant toy, crinkle toy, rattle, mirror, flash cards
• Ball storage bag
• 40 balls
• 6 Fun Links

Assembly instructions

Toy Bar Installation: Attach the toy bar assembly to the base of the play mat. Ensure the toy loops are positioned correctly as shown in the manual diagrams. The toy bars are tensioned, so handle with care during assembly.

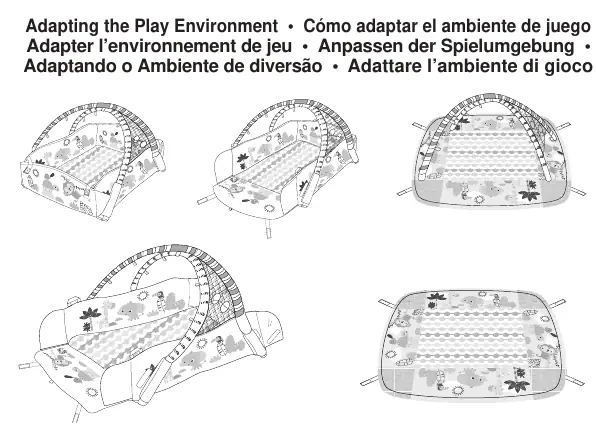

Adapting the Play Environment: The gym can be adapted to different configurations, including a flat play mat or a ball pit by folding up the sides. Ensure all hook-and-loop straps are fastened securely when converting to the ball pit configuration.

Battery installation

The musical toy requires 3 AA/LR6 (1.5V) alkaline batteries (not included). To install:

1. Locate the battery compartment on the toy.
2. Use a screwdriver to open the compartment.
3. Insert 3 AA/LR6 batteries, ensuring the polarity matches the markings inside.
4. Secure the compartment cover.

Note: Weak batteries cause erratic operation, including distorted sound and dimming or failed lights. Replace batteries when functions fail.

Operating modes

• Baby Mode: Moving or "bopping" the toy plays a single short melody with colored lights.
• Parent (Melody) Mode: Plays continuous melodies for 20 minutes with colored lights.
• Nature Mode: Plays calming water sounds for 20 minutes with soft colored lights.

Care and cleaning

• Mat and Ball Storage Bag: Remove toys and toy bars before washing. Fasten all hook-and-loop straps. Machine wash with cold water on a gentle cycle. Do not bleach. Air dry.
• Toy Bar and Toys: Clean before use with a damp cloth and mild soap. Air dry. Do not immerse in water.
