TRIO 2041691XX Wall Lamp Installation Manual
Installation guide for the TRIO 2041691XX wall lamp. Includes step-by-step mounting instructions, motion sensor settings, and technical specifications.
Quick answers from the manual
Quick answer
- The TRIO 2041691XX is a wall lamp with an integrated motion sensor. Installation requires drilling, wiring, and mounting to a wall. The sensor settings are adjustable for light sensitivity and duration. p. 2
Key actions
- Turn off power before installation p. 2
- Install E27 bulb p. 2
Problems and fixes
Check mounting height and detection range (9m/120°).
p. 2Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 230V ~ 50Hz | Standard mains power | p. 2 |
| Bulb | 1 x E27 / max. 28W | Maximum wattage for the light source | p. 2 |
Where to find it in the PDF
- Safety Warnings p. 1
- Installation and Specs p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation instructions for the TRIO 2041691XX wall lamp. Before starting, ensure the power supply is disconnected at the circuit breaker. The lamp is rated IP44, making it suitable for outdoor use.

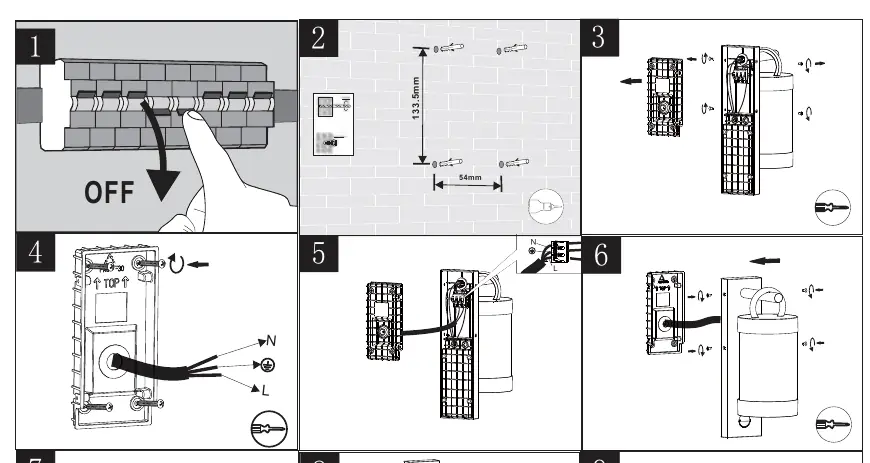

Installation
- Switch off the power supply at the circuit breaker.
- Mark and drill holes on the wall using the provided dimensions (54mm width, 133.5mm height).
- Prepare the wiring and mount the base plate to the wall.
- Connect the power cables (L, N, and Ground) to the terminal block.
- Secure the lamp housing to the base plate.
- Install the E27 light bulb (max 28W).
Sensor settings
The lamp features an integrated motion sensor with adjustable settings:
- LUX: Adjusts the ambient light threshold (10-2000 LUX) at which the sensor activates.
- Time: Adjusts the duration the light remains on after motion is detected (5 seconds to 8 minutes).
- Detection range: 9 meters at a 120-degree angle.
Technical specifications
- Voltage: 230V ~ 50Hz
- Socket: 1 x E27
- Max wattage: 28W
- Protection: IP44
Practical help
Common problems
Check power supply, ensure the bulb is correctly installed, and verify that the LUX setting is appropriate for the current ambient light.
Verify the mounting height and ensure the detection area (9m/120°) is not obstructed.
Before use
- Ensure power is switched off at the circuit breaker.
- Verify wall surface is suitable for mounting.
- Check bulb compatibility (E27, max 28W).
- Ensure all necessary tools for drilling and wiring are available.
