VEVOR 150W/300W Foldable Solar Panel

Product Overview

The VEVOR foldable solar panel is a portable energy solution available in 150W and 300W models. Designed for efficiency and convenience, it features a foldable design for easy transport and storage. The panels are constructed with high-quality single-crystal silicon cells and are protected by a durable, waterproof outer fabric.

Safety Precautions

• Do not use the product in abnormal conditions such as smoke or burning odors.

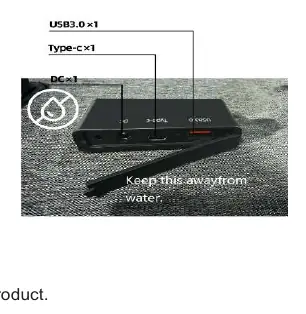

• Keep away from water: While the panel and fabric are waterproof, the USB charging port is not. Ensure it remains dry.
• Avoid overheating: Do not place the panel in high-temperature areas like car interiors, on engine hoods, or on asphalt.
• Child safety: Keep the product out of reach of children to prevent burns or accidents.
• Do not disassemble: Unauthorized modifications may cause electric shock or damage.
• Metal objects: Do not place metal objects between the panel and the device being charged to prevent fire hazards.

Operation and Charging

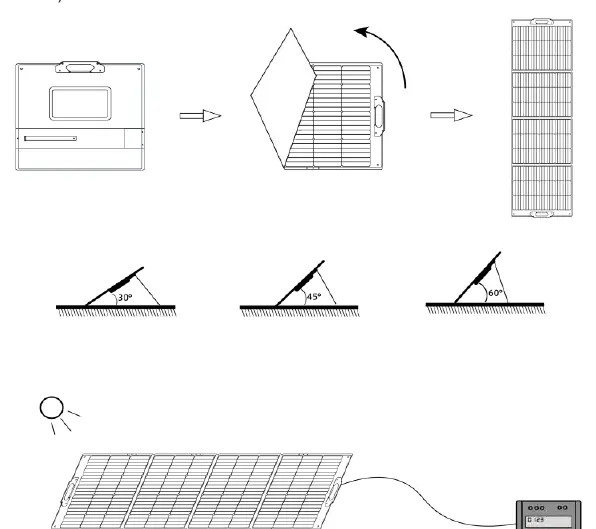

To achieve optimal charging performance, unfold the solar panel completely and position it perpendicular to direct sunlight. Adjust the panel's angle periodically to track the sun's movement. The charging rate depends on the intensity and angle of the sunlight. Avoid covering the panel with stickers or cloth, as this will significantly reduce efficiency.

You can charge devices simultaneously via the USB and DC interfaces. Note that the panel and connected devices may generate heat during charging, which is normal. If a device (like an iPhone) overheats, it may stop charging automatically to protect itself; keep devices shaded while charging.

Maintenance and Troubleshooting

If the panel is not charging, ensure it is fully unfolded and receiving direct, unobstructed sunlight. Avoid charging behind glass or in shaded areas. When cleaning, disconnect all cables and devices. If the product is not in use for an extended period, store it in a dry, safe place.

Technical Specifications

• 150W Model: 22.5V Open-circuit Voltage, 8.8A Short-circuit Current, 18.73V Operating Voltage, 8.43A Operating Current.
• 300W Model: 44.94V Open-circuit Voltage, 8.84A Short-circuit Current, 37.45V Operating Voltage, 8.43A Operating Current.
• Common Features: 22-23% Conversion Efficiency, IP67 Protection Grade, -20 to 65°C Operating Temperature.

Disposal

This product is subject to European Directive 2012/19/EC. Do not dispose of it with household waste. Please take it to a designated collection point for recycling electrical and electronic equipment.
