Installation and Operation Manual for WFAE 23AW Air Conditioner
Quick guide for the WFAE 23AW air conditioner. Includes installation steps, operation instructions, maintenance tips, and troubleshooting.
Quick answers from the manual
Quick answer
- The WFAE 23AW is a window-type air conditioner. It requires professional installation, proper grounding, and should be operated within 18-43°C outdoor temperature. p. 1, 8, 9
Key actions
- Clean the air filter every two weeks p. 13, 15
- Wait 3 minutes before restarting p. 14, 16
First start
- Ensure the unit is installed in a firm location p. 9, 10
- Connect to a dedicated, grounded circuit p. 8, 11
Show 4 more answers Show less
Problems and fixes
Check power failure, plug, and fuse.
p. 16Maintenance and reset
- Press the 'Check Filter' button after cleaning p. 7
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Temperature setting range | 16-30°C | Operating temperature range | p. 7 |
| Outdoor operating temperature | 18-43°C | Recommended outdoor temperature range | p. 8 |
Where to find it in the PDF
- Installation p. 4, 9, 10, 11
- Operation p. 6, 7, 8
- Maintenance p. 15
Table of contents
Manual images
Click an image to enlargeQuick Guide

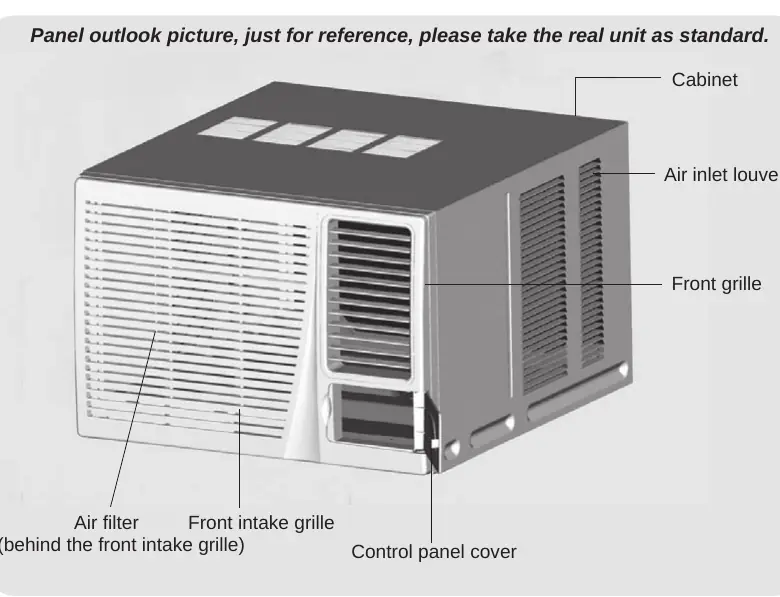

This manual provides instructions for the WFAE 23AW window-type air conditioner. Key safety requirements include using a qualified technician for installation and maintenance, especially when dealing with R32 refrigerant. Ensure the unit is installed in a well-ventilated area away from fire sources.

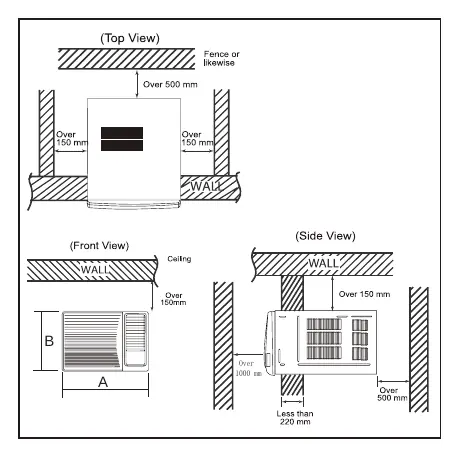

Installation
Professional installation is recommended. The unit must be installed in a location with sufficient clearance (300mm top, 1500mm bottom, 500mm sides, 1500mm front). Ensure the unit is slanted slightly backward (6-10mm) to prevent noise and vibration. A leak test is mandatory after installation.
Operation
Use the remote control panel to select modes: Auto, Heat, Cool, Fan, or Dry. The temperature setting range is 16-30°C. Always wait at least 3 minutes before restarting the unit after it has been switched off.
Maintenance
Clean the air filter at least every two weeks. Use a soft, dry cloth for the cabinet. Do not use harsh chemicals or splash water directly on the unit.
Practical help
Common problems
Check for power failure, ensure the plug is connected, and verify the fuse or switch is on.
Check if air inlet/outlet is blocked, remove heat sources, clean dirty air filters, and ensure fan speed is not set to LOW.
This is normal in high humidity conditions as the air is cooled rapidly.
Sounds like water flowing or showering are normal; they are caused by freon circulation and dehumidifying water processing.
Before use
- Check power supply
- Ensure proper ventilation
- Check for fire sources
- Verify installation stability
- Ensure the unit is grounded
