Whirlpool WPD 0649W ADS BE Washer-Dryer User Guide

Quick user guide for the Whirlpool WPD 0649W ADS BE washer-dryer, covering installation, operation, maintenance, and troubleshooting.

Table of contents

Manual images

Jump to the section
Symbol table for programs and functions Page 11 Install the protective cover into the designated slot on the appliance base. Page 13 Insert the remaining cover plug into the corresponding opening on the base. Page 13 Connect the water inlet hose to the appliance and the water tap. Page 14 Adjusting the feet Page 15 Locate the detergent dispenser drawer on the front of the machine. Page 19

Quick guide from the manual

This document provides essential instructions for the safe and efficient use of the Whirlpool WPD 0649W ADS BE washer-dryer. Key procedures include proper installation, laundry preparation, detergent usage, program selection, and routine maintenance. Always ensure the appliance is installed on a stable, level surface and that all transport bolts are removed before first use.

Installation

Installation must be performed by qualified personnel. Ensure the appliance is placed on a hard, level floor. Remove all transport safety bolts before operation. Connect the water inlet and drain hoses according to local regulations, ensuring no kinks or bends. The appliance must be leveled using its adjustable feet.

Install the protective cover into the designated slot on the appliance base.
Install the protective cover into the designated slot on the appliance base.
Insert the remaining cover plug into the corresponding opening on the base.
Insert the remaining cover plug into the corresponding opening on the base.
Connect the water inlet hose to the appliance and the water tap.
Connect the water inlet hose to the appliance and the water tap.
Adjusting the feet
Adjusting the feet
Locate the detergent dispenser drawer on the front of the machine.
Locate the detergent dispenser drawer on the front of the machine.
Open the detergent drawer to access the compartments.
Open the detergent drawer to access the compartments.
Use the program selector dial and control panel to choose your wash cycle.
Use the program selector dial and control panel to choose your wash cycle.
Review the control panel layout for additional function settings.
Review the control panel layout for additional function settings.
Insert the tool into the filter cover to begin the opening process.
Insert the tool into the filter cover to begin the opening process.
Rotate the filter cover to unlock and remove it for cleaning.
Rotate the filter cover to unlock and remove it for cleaning.

Operation

Before starting, sort laundry by type, color, and soil level. Load the machine without exceeding the maximum capacity specified in the program table. Add detergent and fabric softener to the appropriate compartments. Select the desired program using the program selection knob and adjust settings like temperature and spin speed if necessary. The machine features an automatic dosing system for detergent and softener.

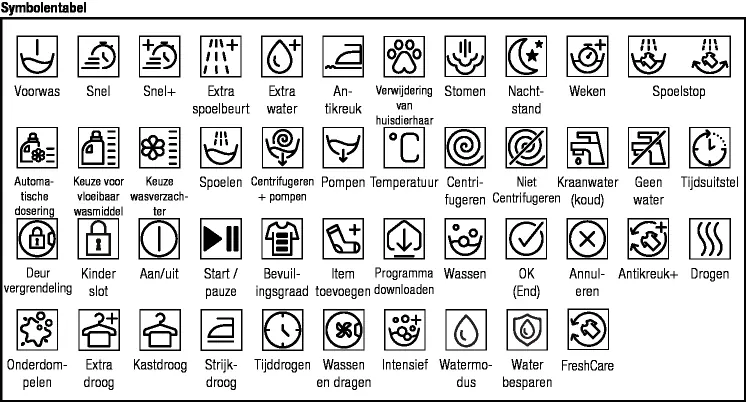

Symbol table for programs and functions
Symbol table for programs and functions
Detergent drawer compartments
Detergent drawer compartments

Maintenance and Cleaning

Regular maintenance is crucial for appliance longevity. Clean the detergent drawer periodically to prevent buildup. The drum should be cleaned using the Drum Cleaning program. Regularly inspect and clean the water inlet filters and the pump filter to ensure proper drainage and prevent blockages.

Troubleshooting

If the machine does not start, check the power connection and ensure the door is properly closed. If the machine does not drain, inspect the drain hose for kinks and clean the pump filter. For vibration issues, ensure the machine is level and that all transport bolts have been removed.

Manufacturer information

Whirlpool Corporation

Brand profile
Manufacturer website https://www.whirlpool.com Support https://www.whirlpool.com/support Manufacturer manuals https://www.whirlpool.com/manuals

Practical help

Common problems

Machine does not start or program cannot be selected

Check power connection, ensure the door is closed, and verify the child lock is disabled.

Machine does not drain water

Check if the drain hose is kinked or clogged and clean the pump filter.

Excessive vibration or noise

Ensure the machine is level, remove transport bolts, and check for foreign objects in the pump filter.

Door cannot be opened

Wait for the program to finish or the water temperature to drop. If there is a power failure, use the emergency door release.

Before use

  • Remove all transport safety bolts.
  • Ensure the machine is level on a hard floor.
  • Connect water inlet and drain hoses securely.
  • Perform a calibration run using the Drum Cleaning program without laundry.
  • Check that the power supply meets requirements.

Specs in practice

Washing capacity
10 kg (cotton)
Drying capacity
6 kg (cotton)
Max spin speed
1400 rpm

Images and diagrams

  • The control panel features a program selection knob, display screen, and various buttons for temperature, spin speed, and auxiliary functions.
  • The detergent drawer has three compartments: liquid detergent, powder detergent, and fabric softener.

Model compatibility

  • Requires a 16A grounded power outlet.
  • Water supply pressure must be between 0.1-1 MPa.
  • HomeWhiz app requires a 2.4 GHz Wi-Fi connection.
