Owner's Manual for Xiamen 40FT Container House
Comprehensive owner's manual for the Xiamen 40FT Container House, including technical specifications, electrical and waterway diagrams, and a detailed list of replaceable parts.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document serves as the owner's manual for the Xiamen 40FT Container House. It provides essential technical data, including structural dimensions, electrical circuit layouts, and waterway diagrams. Users should refer to these diagrams for maintenance and understanding the internal infrastructure of the unit.
Layout and Diagrams
The manual includes detailed architectural and utility plans:

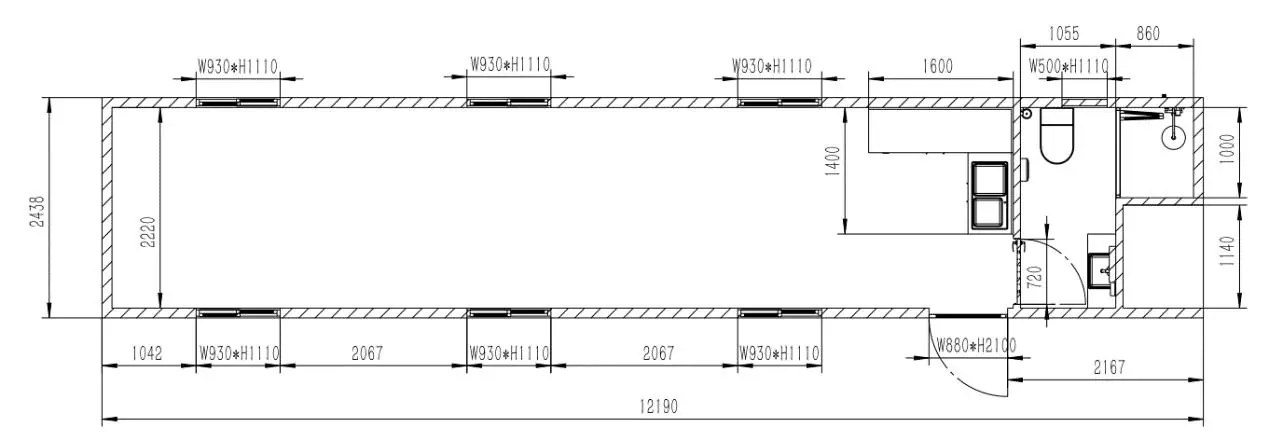

- Plan sketch: Provides the overall floor layout with dimensions for windows and doors.

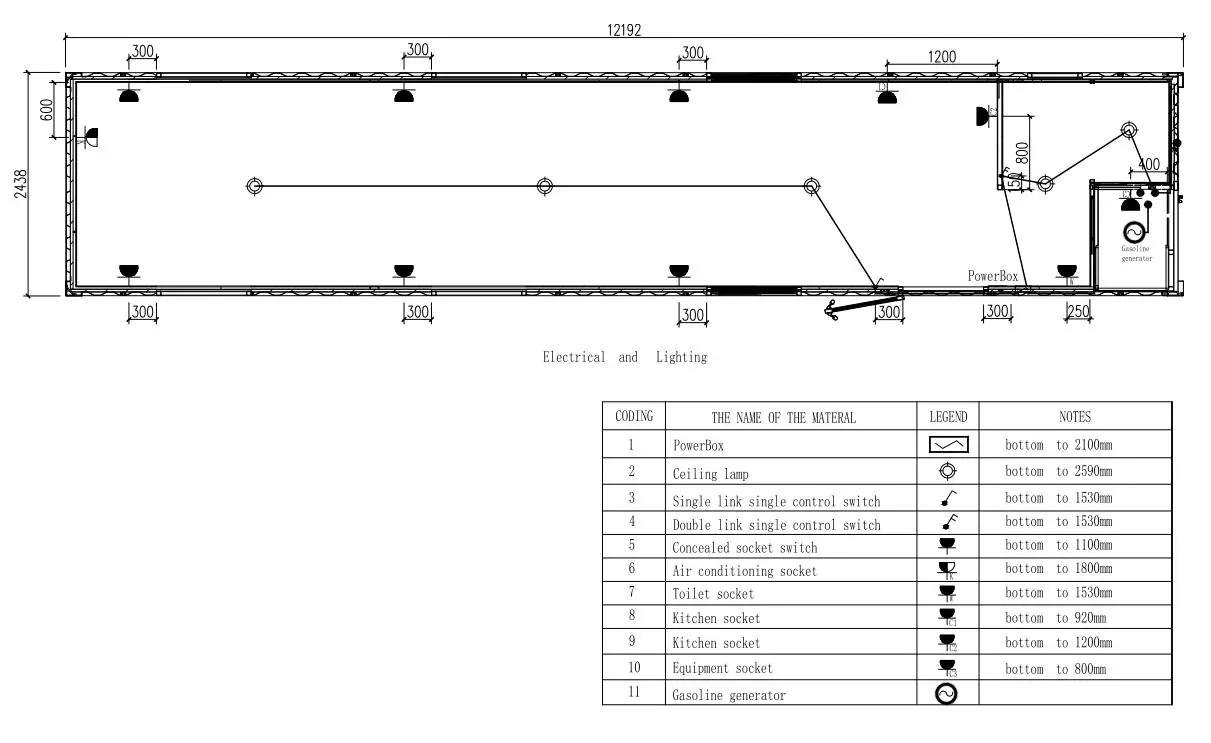

- Circuit diagram: Details the placement of power boxes, lighting, switches, and sockets, including height specifications for installation.

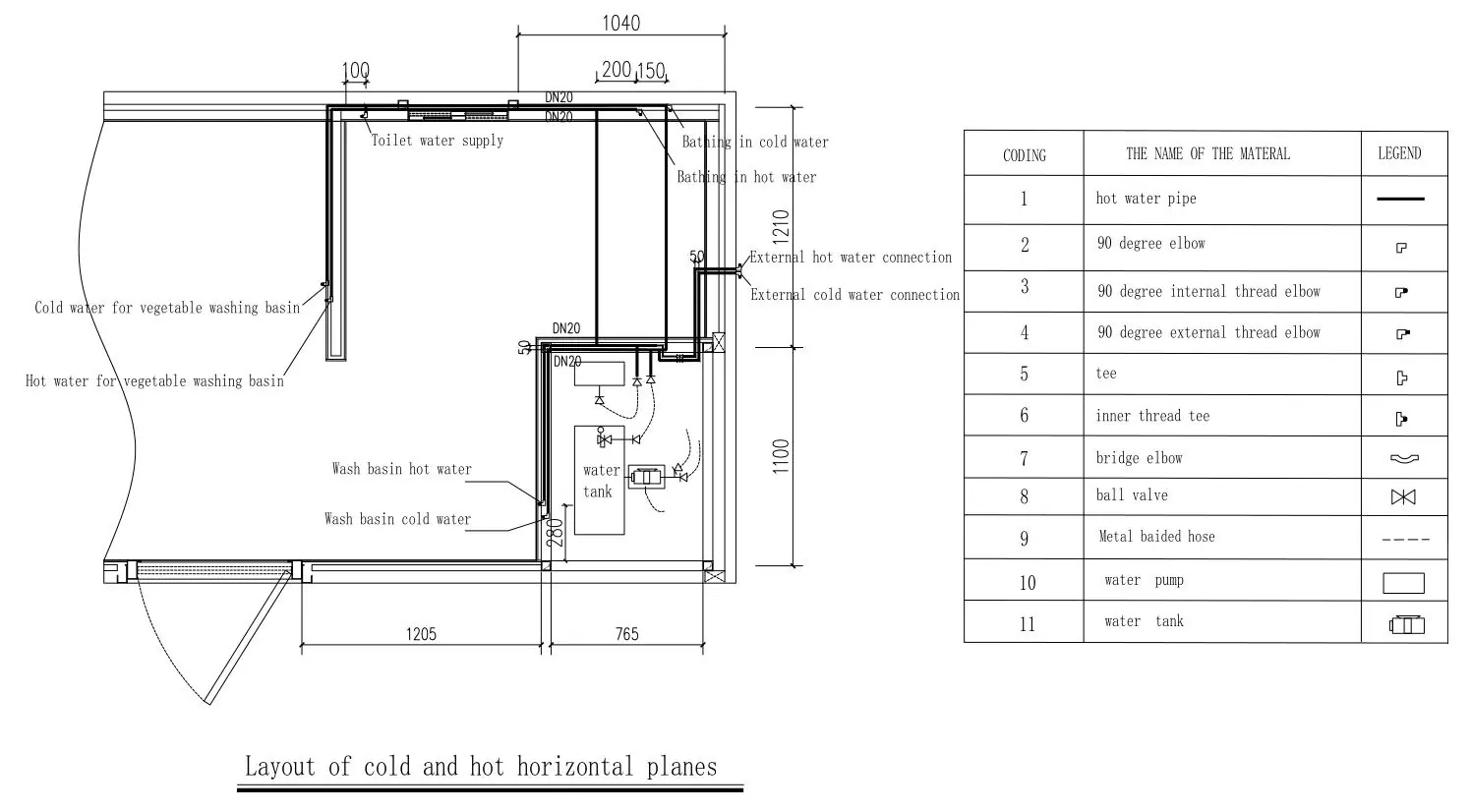

- Waterway diagram: Illustrates the routing of hot and cold water pipes, drainage, and the location of the water tank and pump.

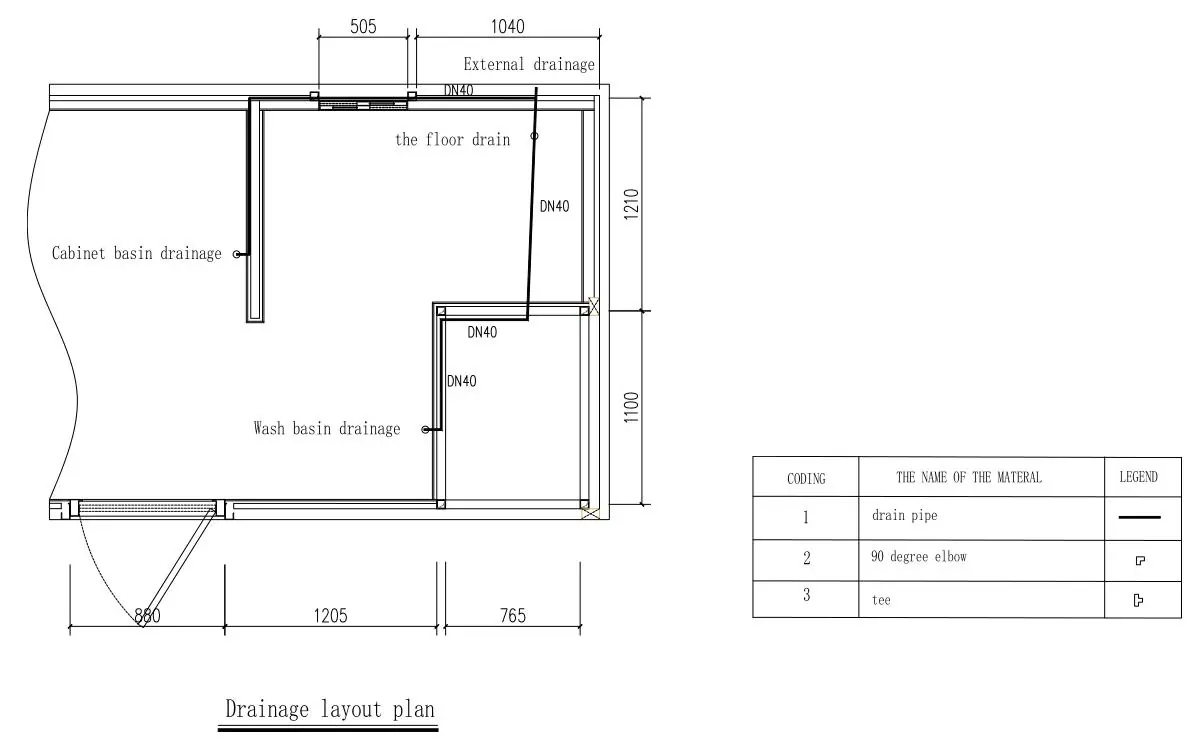

- Drainage layout plan: Shows the floor drain and basin drainage paths.
Specifications
The container house features the following technical parameters:
- Overall Dimensions: 12190mm x 2440mm x 2900mm (40FT x 8FT x 10FT).
- Structure: 40HQ container steel structure (light gray RAL7035) with TPS and wood-plastic composite wall/roof boards.
- Flooring: 15mm ecological board with 3mm anti-slip plastic flooring.
- Water System: Includes a 200L water tank, 1/2" cold/hot water lines, and Φ40/Φ125 drainage/discharge pipes.
- Fire Resistance: A1/B2 (Optional).
Product replaceable parts list
The manual provides a comprehensive list of replaceable components, including:
- Electrical: 16A aviation sockets, circuit breakers, 18W LED ceiling lights, and switches.
- Plumbing: Shower faucets, basin drainers, S-shaped sewer pipes, and shower nozzles.
- Fixtures: Louver ventilating fans, wood doors, broken bridge aluminum windows, and L-shaped combination cabinets.
Practical help
Common problems
Electrical component failure
Refer to the circuit diagram to locate the specific socket or switch and check the circuit breaker status.
Water drainage issues
Consult the drainage layout plan to identify the location of floor drains and S-shaped sewer pipes for potential blockages.
Before use
- Verify the electrical standard (110V, 220V, or 240V) matches your local power supply.
- Inspect the water tank and pump connections for leaks.
- Ensure all windows and doors are properly sealed and functional.
- Check the circuit breaker panel for correct operation.
Specs in practice
- 40HQ Container
- High Cube container structure providing extra interior height.
- Broken Bridge Aluminum
- Thermal break window technology for improved insulation.
Images and diagrams
- Plan sketch: Shows internal room dimensions and window/door placements.
- Circuit diagram: Maps out all electrical points and their height from the floor.
- Waterway diagram: Details pipe routing for hot/cold water and drainage.
- Drainage layout: Specific view of floor and basin drain pipe paths.
Model compatibility
- American Standard: 110V
- British Standard: 220V
- Australian Standard: 240V
