Parts List for Zephyr Presrv™ 24-Inch Dual Zone Refrigerator Freezer Drawer PRRFD24C2AS
Access the official parts list and exploded view diagram for the Zephyr Presrv™ 24-Inch Dual Zone Refrigerator Freezer Drawer (PRRFD24C2AS). Use this guide to identify components, part numbers, and quantities for maintenance and repair.
Quick answers from the manual
Quick answer
- This document is an official parts list and exploded view diagram for the Zephyr PRRFD24C2AS Refrigerator Freezer Drawer, used to identify components and part numbers for repair. p. 1, 2, 3, 4
Key actions
- Identify parts using the exploded view diagram on page 1. p. 1
- Locate specific part numbers in the tables on pages 2-4. p. 2, 3, 4
Where to find it in the PDF
- Exploded View Diagram p. 1
- Parts List p. 2, 3, 4
Table of contents
Parts List and Exploded View
This document provides a comprehensive parts breakdown and exploded view diagram for the Zephyr Presrv™ 24-Inch Dual Zone Refrigerator Freezer Drawer (Model PRRFD24C2AS). It is intended for identifying components for maintenance, repair, or replacement.
Exploded View Diagram

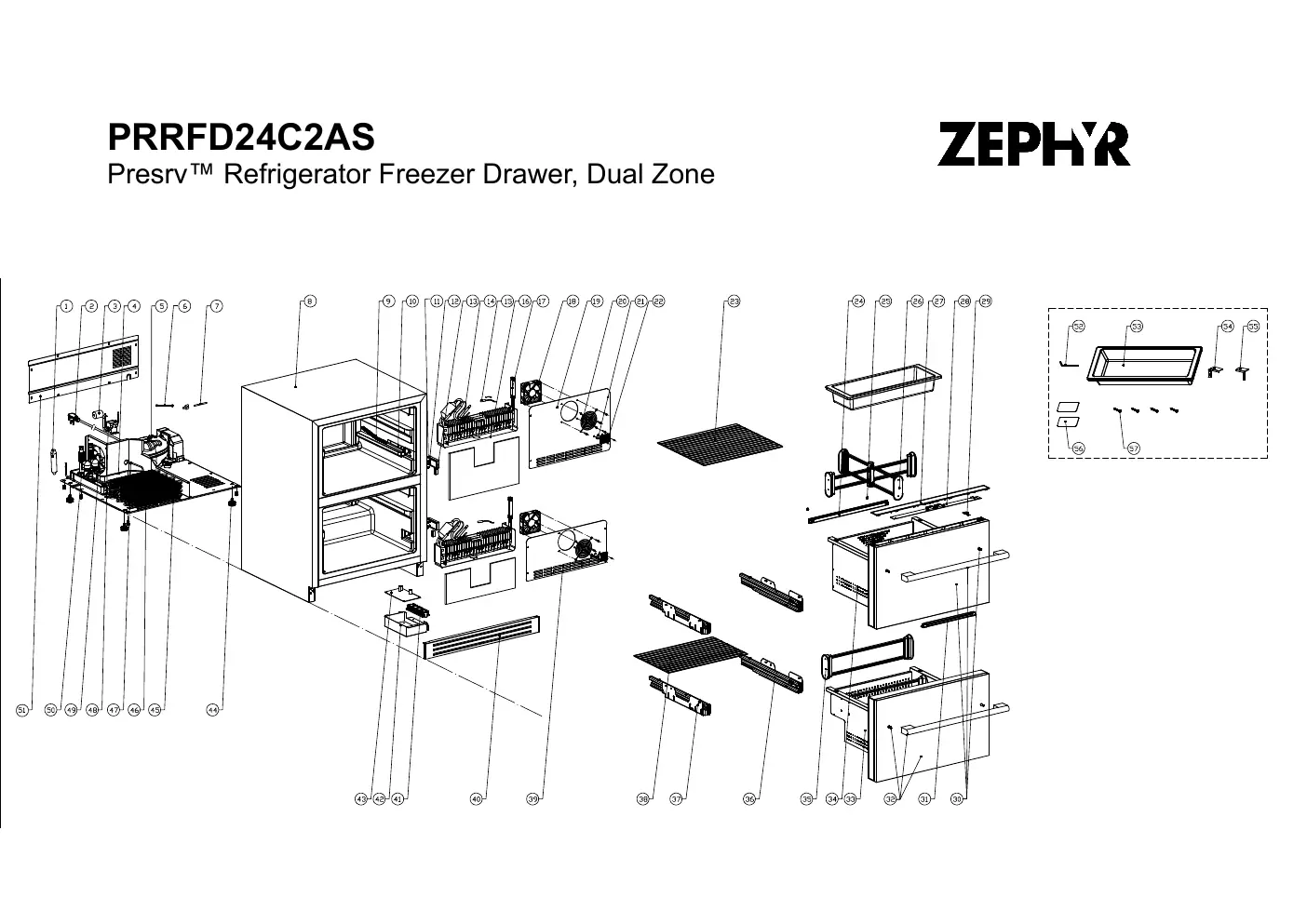

The diagram on page 1 illustrates the assembly of the refrigerator, showing the relative positions of all internal and external components, including the compressor, drawers, sliding rails, and control boards. Each component is labeled with a reference number corresponding to the parts list.
Parts Breakdown
The parts list covers 57 distinct items, including:
- Cooling System: Compressor, dryer filter, evaporator (upper/lower), condenser, and fans.
- Control System: Main power control board, display control board, sensors, and hall switches.
- Drawer Assembly: Drawer doors, gaskets, handles, sliding rails, and dividers.
- Hardware: Various screws, bolts, washers, and leveling legs.
- Accessories: Silicone mats, drip trays, and anti-tip brackets.
Ordering Replacement Parts
When ordering replacement parts, refer to the 'Part #' column in the provided tables. Ensure you match the reference number from the diagram with the specific part number to guarantee compatibility with the PRRFD24C2AS model.
Practical help
Before use
- Verify the model number (PRRFD24C2AS) matches your unit.
- Use the exploded view diagram to locate the faulty component.
- Identify the correct Part # from the list before ordering replacements.
- Ensure all hardware (screws, washers) is accounted for during reassembly.
Images and diagrams
- The exploded view diagram (Page 1) uses reference numbers (1-57) to identify every component in the unit.
- The parts list tables (Pages 2-4) map these reference numbers to specific manufacturer part numbers and quantities.
