ARROW 16GA Straight Finish Nailer Owner’s Manual

Product Overview

The Arrow 16GA Straight Finish Nailer is a professional-grade pneumatic tool designed for precision fastening. It is ideal for applications such as door and window trims, decorative molding, cabinet work, and flooring. The tool features a lightweight die-cast aluminum body, a comfortable rubber grip for extended use, and a contact safety mechanism to prevent accidental firing.

Technical Specifications

• Capacity: 100 nails
• Nail Length: 1-1/4" to 2-1/2" (32-64mm)
• Gauge: 16 Gauge (1.40x1.60mm)
• Operating Pressure: 70-110 PSI (5-7.5 bar)
• Air Inlet: 1/4" N.P.T.
• Weight: 4.52 lbs (2.05 kg)

Safety Guidelines

Always prioritize safety when operating pneumatic tools. Wear ANSI-approved safety glasses and ear protection at all times. Never use oxygen, combustible gases, or bottled gases as a power source, as this poses an explosion risk. Ensure the air supply does not exceed 120 PSI. Always disconnect the tool from the air supply before loading fasteners, performing maintenance, or clearing jams. Keep the tool pointed away from yourself and others during operation.

Operating Instructions

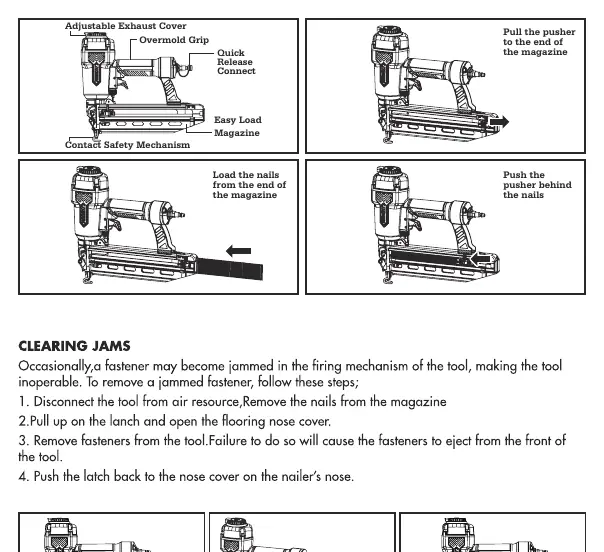

To operate the nailer, ensure the air supply is clean, dry, and regulated. Connect the tool to the air hose using a quick-connect coupler. To load nails, pull the pusher to the end of the magazine, insert the nail strip, and release the pusher to secure the nails. To fire, grip the handle, depress the trigger, and push the contact safety tip against the workpiece.

Maintenance and Troubleshooting

Regular maintenance ensures longevity and performance. Periodically inspect the tool for worn O-rings, seals, and loose screws. Keep the magazine and nose area clean and free of debris. If a jam occurs, disconnect the air supply, remove the nails from the magazine, open the flooring nose cover, clear the jammed fastener, and re-latch the nose cover before resuming work.
