User Manual for Baby Einstein 11710-MEWS Airplane Adventure 2-in-1 Activity Jumper

Quick guide from the manual

The Baby Einstein Airplane Adventure 2-in-1 Activity Jumper is designed for infants who meet specific developmental milestones. Before use, ensure the child is at least 6 months old, can sit up unassisted, is less than 30 inches (76.2 cm) tall, and weighs less than 25 lbs (11 kg). Always ensure the height adjustments on the legs are set to the same level before placing the child in the seat.

Safety Warnings

Fall Hazard: Babies can fall from the unit and suffer head injuries. Never leave the child unattended, do not use near stairs, and always place the product on a flat, level surface. Do not place the product on elevated surfaces.

Strangulation Hazard: Strings can cause strangulation. Do not place items with strings (hood strings, pacifier cords) around the child's neck. Do not suspend strings over the product or attach strings to toys.

General Safety: Do not use the product as a swing. Do not allow children who can stand or walk on their own to sit in the seat. Use only for short periods (20-minute intervals). Do not move the unit while the child is in the seat.

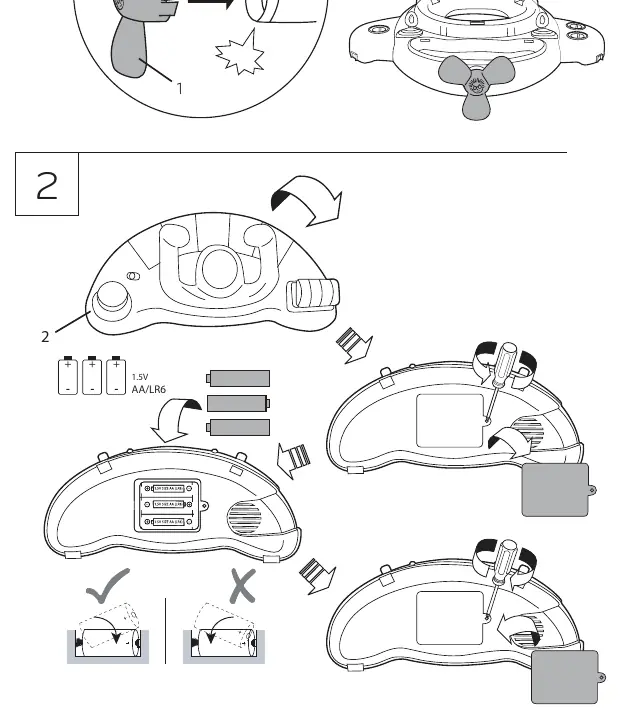

Battery Installation

This product requires (3) AA/LR6 (1.5V) alkaline batteries (not included). To install:

• Locate the battery compartment.
• Use a screwdriver to open the cover.
• Insert batteries ensuring polarity matches the markings in the compartment.
• Replace the cover and secure it with the screw.
• Replace batteries if functions fail or sound becomes distorted.

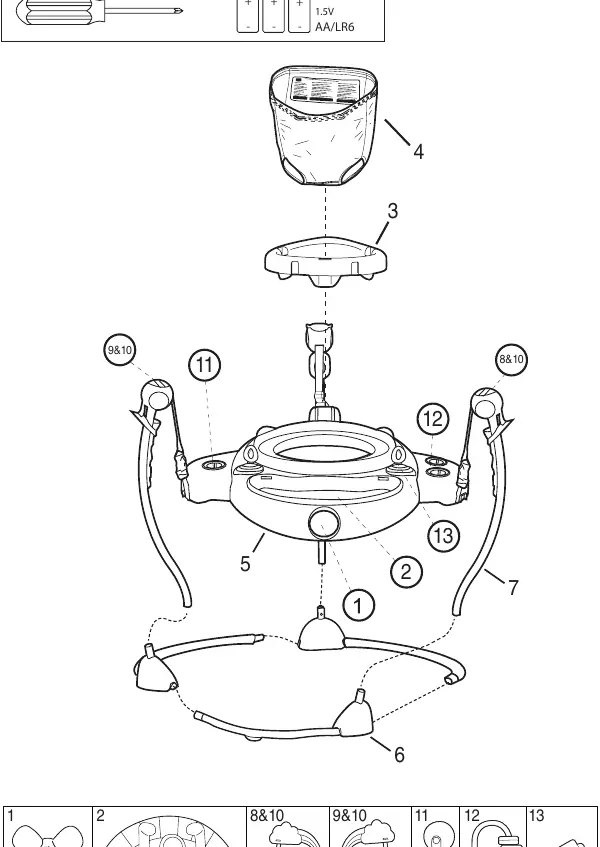

Assembly

Assembly must be performed by an adult. Follow the steps provided in the manual carefully:

1. Attach the propeller to the main unit.
2. Install batteries into the toy station.
3. Assemble the seat ring and seat pad.
4. Attach the seat assembly to the main unit.
5. Assemble the base tubes and connect them to the main unit using the metal arms with springs.
6. Attach all remaining toys (hanging sun, cloud toppers, roller ball, bead chaser) to the designated slots on the main unit.

Operating Instructions

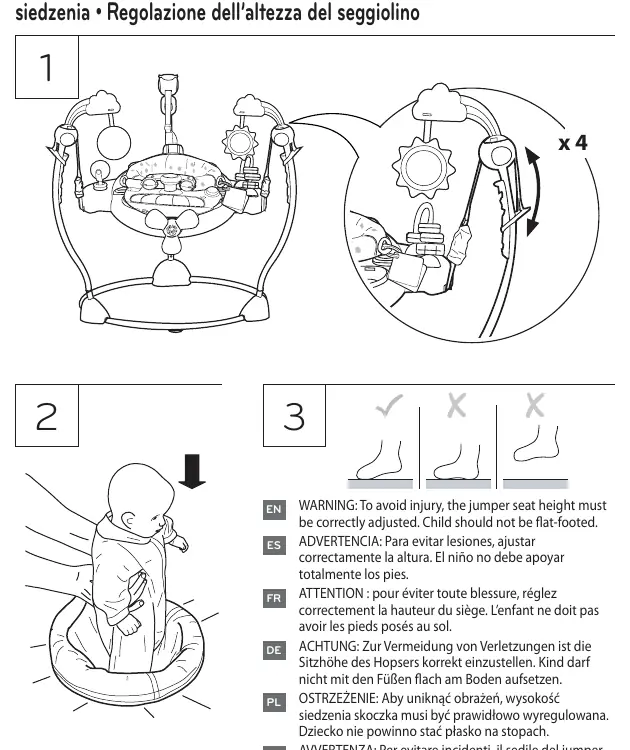

Seat Height Adjustment: Ensure the jumper seat height is correctly adjusted so the child is not flat-footed. Adjust the height on all four legs to the same level.

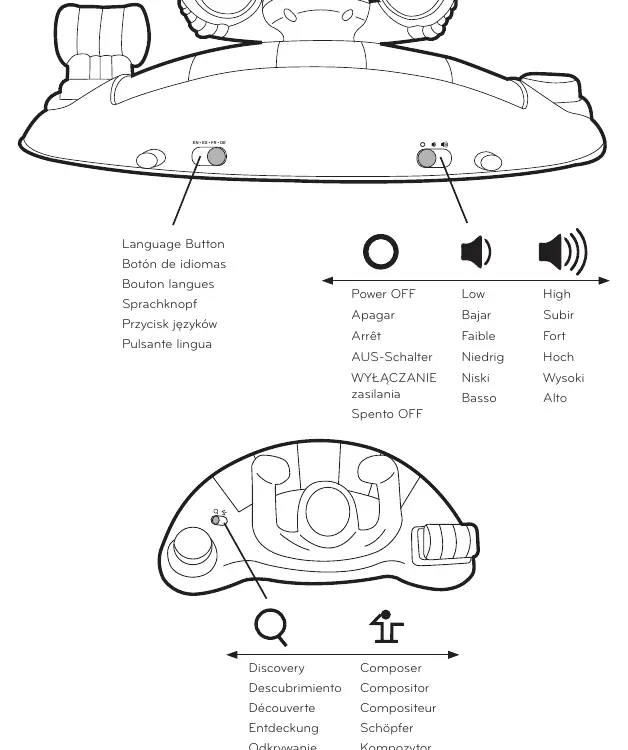

Mode Control: Use the controls on the unit to switch between modes. The unit features a Language Button to toggle between languages (EN, ES, FR, DE) and a mode switch to toggle between Discovery and Composer modes. Volume can be adjusted between Low, High, and Power OFF.

Care and Cleaning

• Seat pad: Machine wash in cold water on a gentle cycle. Do not use bleach. Tumble dry on low heat.
• Plastic Parts: Wipe clean with a damp cloth and mild soap. Air dry. Do not immerse in water.
• Frame: Wipe the metal frame with a soft, clean cloth and mild soap.

Storage

To store the product, disassemble the base and frame components as shown in the storage section of the manual. Remove batteries before storing for a prolonged period.
