User Manual for Baby Einstein Neptune's Ocean Discovery Jumper
Quick guide for the Baby Einstein Neptune's Ocean Discovery Jumper. Includes assembly instructions, safety warnings, battery installation, seat height adjustment, and cleaning tips for model 10455-ES.
Table of contents
Manual images
Click an image to enlargeImportant Information from the Manual
This jumper is designed for children who meet all of the following conditions: at least 6 months of age, can sit up unassisted, are less than 30 inches (76.2 cm) tall, and weigh less than 25 lbs (11 kg). Adult assembly is required. Always keep the child in view while they are in the product and never leave them unattended.
Safety Warnings
- Fall Hazard: Never use near stairs. Do not place the product on an elevated surface. Always ensure the product is on a flat, level surface.
- Strangulation Hazard: Do not place items with strings around a child's neck (e.g., hood strings, pacifier cords). Do not suspend strings over the product or attach strings to toys.
- General Safety: Do not move the unit while the child is in the seat. Do not use the product as a swing. Allow use only for short periods (20-minute intervals). Ensure height adjustments on legs are at the same level before use.

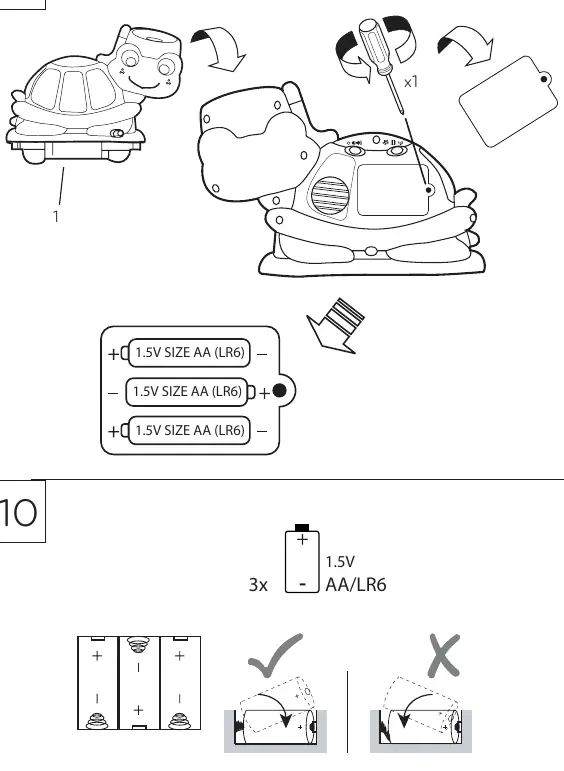

Battery Installation
The electronic turtle toy requires (3) AA/LR6 (1.5V) alkaline batteries (not included). To install: use a screwdriver to open the battery compartment on the toy, insert batteries matching the polarity markings, and secure the cover.

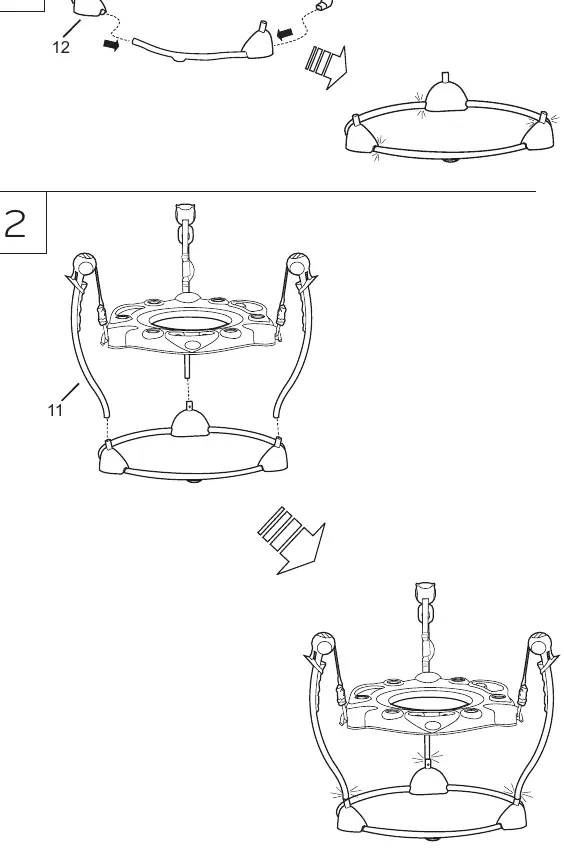

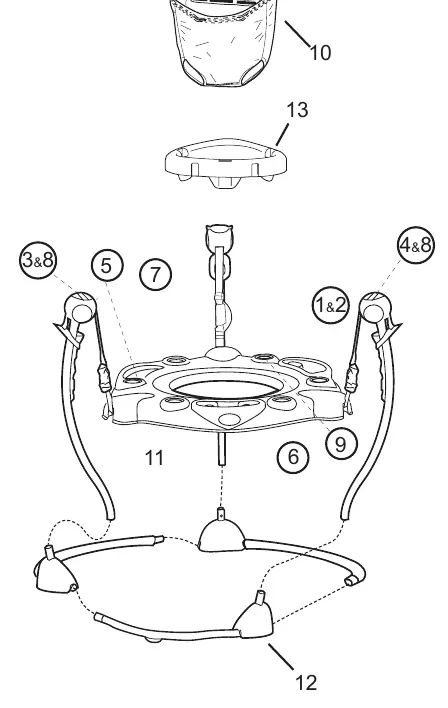

Assembly Instructions
- Connect the base tubes (12) together.
- Attach the play surface with spring legs (11) to the base.
- Snap the seat ring (13) into the play surface.
- Attach the seat pad (10) to the seat ring by securing the tabs.
- Attach the various hanging toys (3, 4, 5, 6, 7) to the play surface.
Operating Instructions

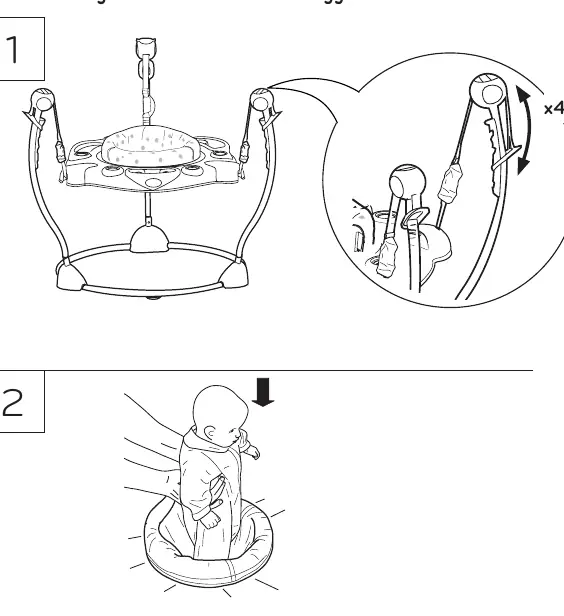

Adjusting Seat Height: The jumper features height adjustments on the legs. Ensure all legs are set to the same level. The child's feet should not be flat-footed on the floor to avoid injury.
Turtle Toy Operation: The turtle toy features controls for power (OFF), volume (Low/High), melody, sound effects, and game mode.
Care and Cleaning
- Seat Pad: Machine wash in cold water on a gentle cycle with no bleach. Tumble dry on low heat.
- Plastic Parts: Wipe clean with a damp cloth and mild soap. Air dry. Do not immerse in water.
- Frame: Wipe the metal frame with a soft, clean cloth and mild soap.
Storage
To store, disassemble the unit by reversing the assembly steps. Ensure all parts are clean and dry before storage.
Manufacturer information
Baby Einstein
Practical help
Common problems
Distorted sound or erratic product operation
Replace batteries with fresh AA/LR6 alkaline batteries. Weak batteries often cause these issues.
Product sliding during use
Ensure the product is placed on a flat, level surface.
Before use
- Child is at least 6 months old.
- Child can sit up unassisted.
- Child is less than 30 inches (76.2 cm) tall.
- Child weighs less than 25 lbs (11 kg).
- All parts are present and undamaged.
- Height adjustments on all legs are set to the same level.
Specs in practice
- Weight Limit
- Maximum 25 lbs (11 kg).
- Height Limit
- Maximum 30 inches (76.2 cm).
Images and diagrams
- Assembly steps 1-13 illustrate the connection of the base, seat, and toy attachments.
- Battery compartment is located on the turtle toy.
Model compatibility
- For indoor use only.
