Baby Einstein 11749-6WS 4-in-1 Kickin’ Tunes Music and Language Discovery Gym

Quick guide from the manual

This guide provides essential information for the Baby Einstein 11749-6WS 4-in-1 Kickin’ Tunes Music and Language Discovery Gym. Always ensure adult assembly and supervision during use.

Safety Warnings

• Never leave the child unattended.
• Use only on the floor. Do not use in cribs, play yards, or as a blanket.
• Do not add extra strings or straps.
• Babies should not sleep on this activity gym.
• Toy bars are under tension; grasp firmly and release slowly.

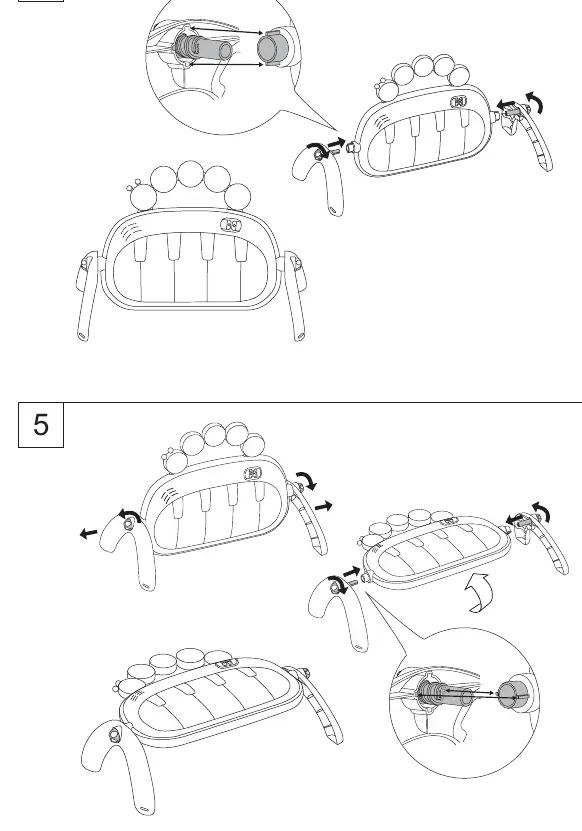

Assembly

Follow these steps to assemble the gym:

1. Lay the mat flat on the floor.
2. Connect the toy bar assembly to the mat using the provided loops.
3. Attach the piano legs to the piano unit.
4. Ensure all parts are securely connected before use.

Battery Installation

The vibration unit requires 3 AA/LR6 (1.5V) alkaline batteries (not included).

• Open the battery compartment.
• Insert batteries matching the polarity (+/-) markings.
• Replace the cover securely.
• Replace batteries if sound is distorted, lights are dim, or motorized parts are slow.

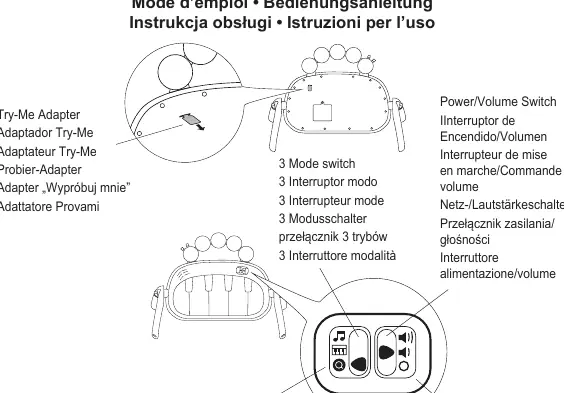

Operating Instructions

The gym features a power/volume switch and a mode switch.

• Modes: Melody mode, Piano mode, Discovery mode.
• Volume: Adjustable via the power/volume switch (High/Low/Off).

Care and Cleaning

• Play mat: Remove toy bar, piano, and toys. Machine wash cold, gentle cycle, no bleach. Air dry flat.
• Toys and toy bar: Wipe clean with a damp cloth and mild soap. Air dry. Do not immerse in water.
