Bestway 60340 Hydrogenic 0.5g/h Saltwater Chlorinator User Guide
Quick guide for the Bestway 60340 Hydrogenic saltwater chlorinator, covering setup, salt concentration requirements, operation procedures, maintenance of the electrolytic cell, and troubleshooting error codes.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential instructions for the Bestway 60340 Hydrogenic saltwater chlorinator. Key operations include charging the device, maintaining a salt concentration of 3000 ppm (3 g/L), and following the recommended daily working hours based on pool size. Always use 99.8% pure sodium chloride (NaCl).
Product specifications
- Chlorine production: 0.5 g/h
- Charging: DC 5V/2A (max 6 hours)
- Working time: Up to 8 hours
- Water capacity: Up to 370 gal (1400 L)
- Operating temperature: 10°C to 40°C
Setup and salt requirements
Before first use, ensure the pool water has a salt concentration of 3000 ppm. Use the provided pool salt table to calculate the exact amount of salt needed based on your pool's capacity in gallons or liters. If the device displays error F1, add salt according to the formula: Water capacity (gal) * 0.0084 (lb) or Water capacity (l) * 0.001 (kg).
Operation procedures
- Charge the chlorinator using the provided USB cable until the indicator turns green.
- Press and hold the Power Button for 3 seconds to activate.
- Set the desired working time (1-8 hours) by pressing the Power Button.
- Place the chlorinator into the pool water.
The device features a standby mode and will automatically restart the next day at approximately the same time.
Maintenance
Inspect the electrodes monthly. If the water is hard, clean the electrolytic cell more frequently using a 50% water and 50% vinegar solution. Avoid harsh chemicals that may damage the titanium plate. Always store the device in a clean, dry place during the off-season.
Troubleshooting
If you encounter issues, check the following:
- Insufficient chlorine: Increase daily running time, check salt levels, or clean the electrolytic cell.
- Flocculent precipitation: Reduce water hardness by draining 20-25% of pool water and refilling with fresh water.
- Error F1: Low salt; add salt or ensure the device is submerged.
- Error F2: Salt concentration too high; drain 20% of water and refill with fresh water.
Manufacturer information
Bestway
Practical help
Common problems
Insufficient chlorine concentration
Increase daily running time, check salt concentration (must be 3000 ppm), or clean the electrolytic cell.
Error code F1
Low salt concentration. Add salt according to the pool salt table or ensure the device is fully submerged in the pool.
Error code F2
Salt concentration too high. Drain about 20% of pool water and refill with clean water.
LED indicator has no display
The device may be out of power. Charge the unit using the provided USB cable.
Before use
- Verify all components are present.
- Charge the device fully until the indicator turns green.
- Ensure pool water salt concentration is 3000 ppm.
- Check that water temperature is between 10°C and 40°C.
- Calculate required salt based on pool capacity.
Specs in practice
- Salt concentration
- Optimal level is 3000 ppm (3 g/L) for efficient chlorine production.
- Max water capacity
- The device is designed for pools up to 370 gal (1400 L).
- Charging voltage
- Use a 5V/2A USB charger to recharge the internal battery.
Images and diagrams

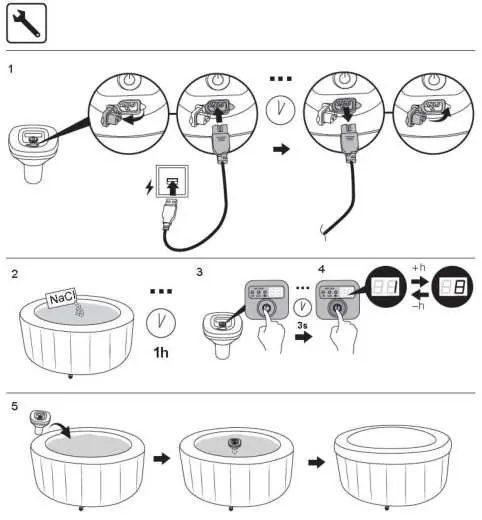

- The manual includes diagrams for charging the device via USB.
- Step-by-step visual guides show how to add salt and set the timer.
- Maintenance diagrams illustrate how to disassemble and clean the electrolytic cell.
Model compatibility
- Use only 99.8% pure sodium chloride (NaCl).
- Not for commercial use; household use only.
- Must be stored indoors during winter/off-season.
