Service Manual for Bosch AdvancedDrill 18V-80 Cordless Drill/Driver
Technical service guide for the Bosch AdvancedDrill 18V-80, featuring exploded views, internal wiring diagrams, and precise screw torque specifications for professional maintenance.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document serves as a technical service and repair reference for the Bosch AdvancedDrill 18V-80 (model number 3 603 JE2 000). It provides exploded views of the tool's internal components, detailed wiring routing instructions, and specific torque requirements for assembly. This guide is intended for qualified service personnel.

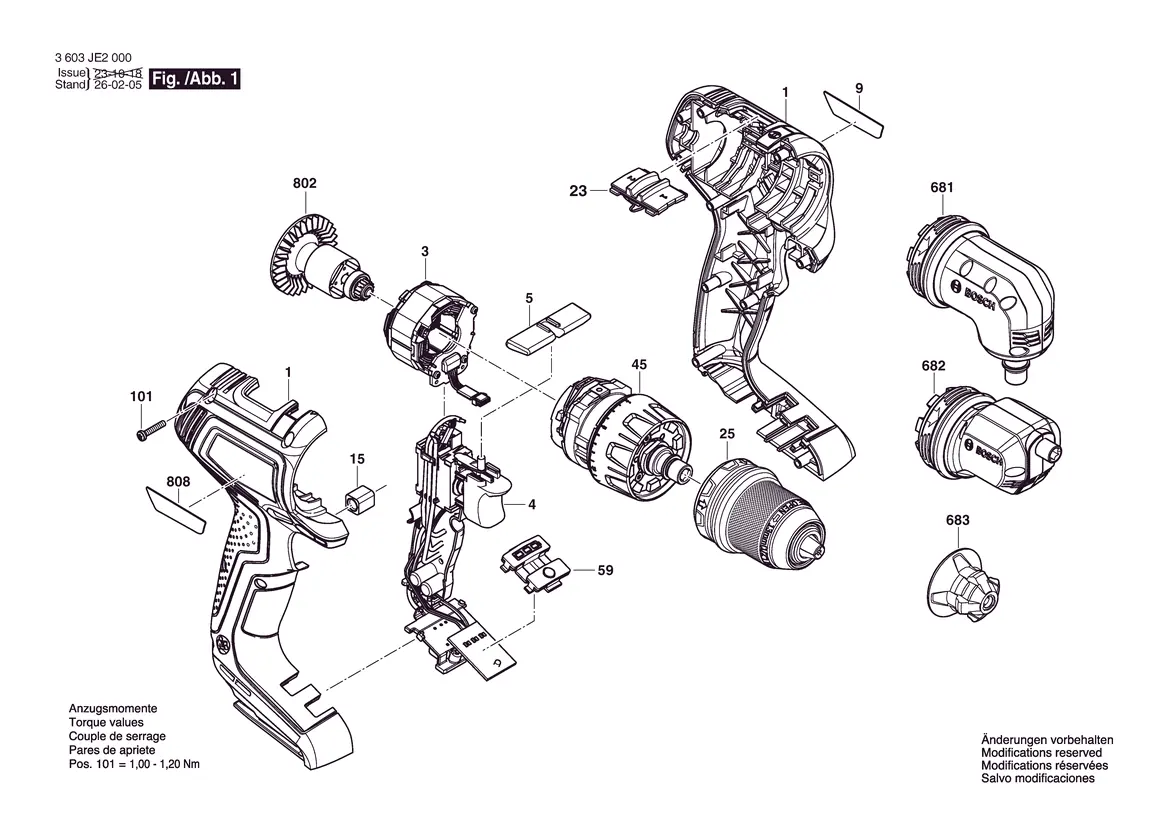

Exploded view and components
The manual provides a comprehensive exploded view of the drill, identifying individual internal parts such as the motor, housing, chuck, and electronic modules. These diagrams are essential for identifying replacement parts and understanding the internal assembly structure.

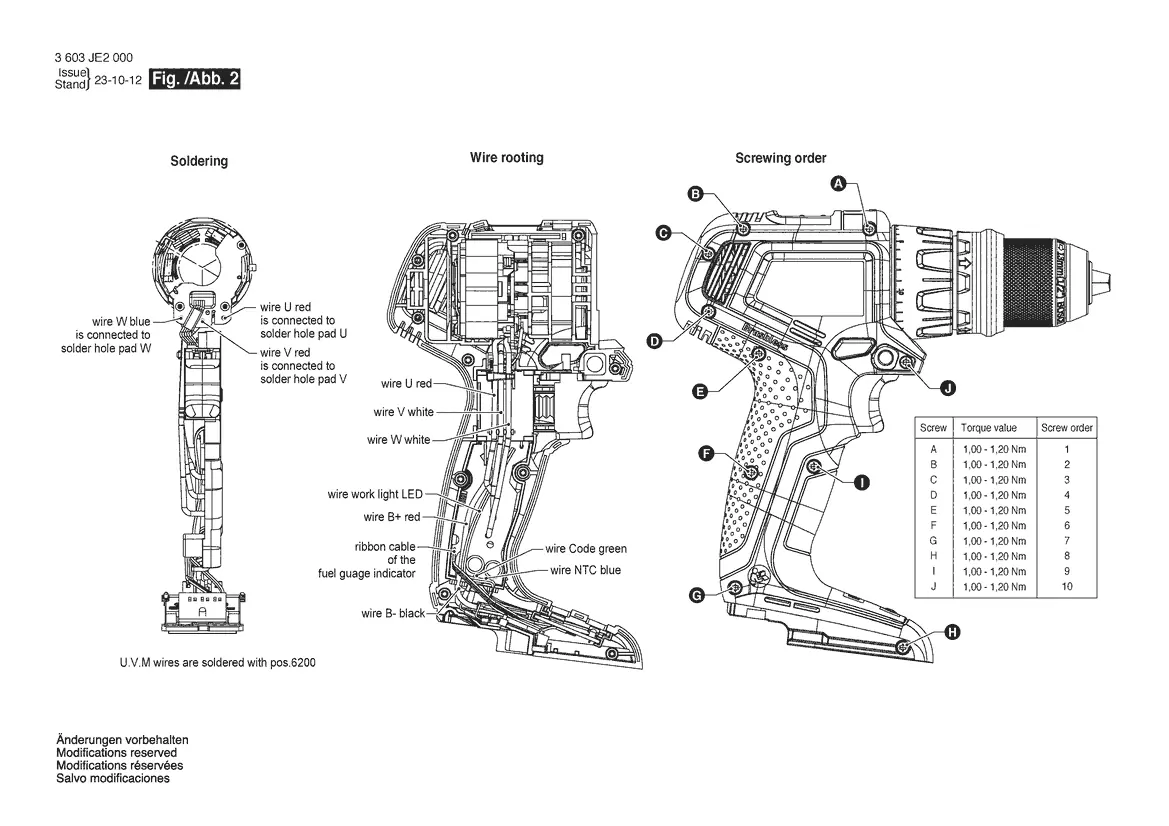

Wiring and assembly
The documentation includes a specific wiring routing diagram. It details the connection points for internal wires (U, V, W, and others) to the solder pads and control modules. Proper routing is critical to ensure the tool functions correctly and to prevent damage to internal components during reassembly.
Torque specifications
For reassembly, the manual specifies precise torque values for the housing screws. All designated screws (labeled A through J) must be tightened to a torque value of 1.00 - 1.20 Nm to ensure the structural integrity of the tool housing.

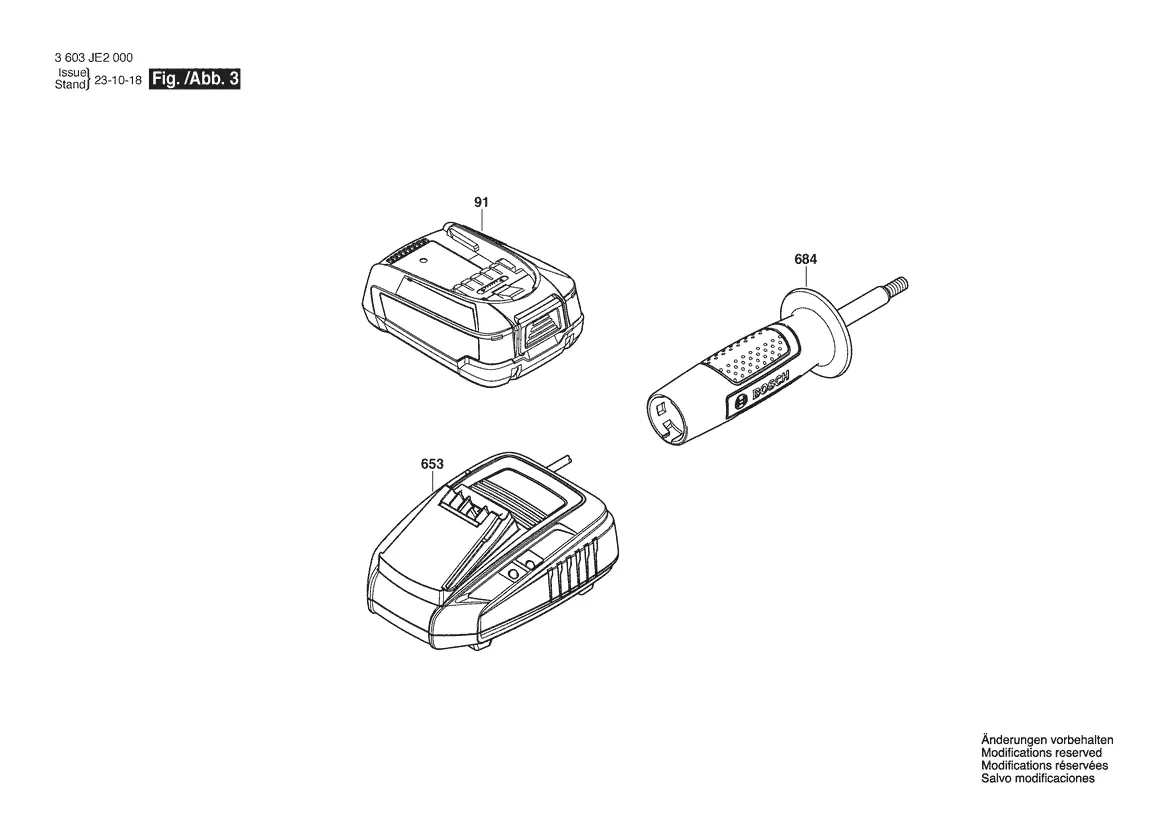

Accessories
The manual identifies key accessories compatible with the system, including the battery pack and the battery charger, which are essential for the operation of the cordless drill/driver.
Manufacturer information
Bosch
Practical help
Common problems
Housing screws loose or misaligned
Ensure all housing screws (A-J) are tightened to the specified torque of 1.00 - 1.20 Nm.
Internal wiring damage
Follow the provided 'Wire rooting' diagram to ensure all wires are correctly positioned and not pinched during housing closure.
Before use
- Verify the model number 3 603 JE2 000 matches your device.
- Ensure you have the correct battery pack and charger.
- Check that all housing screws are present and tightened to 1.00 - 1.20 Nm.
- Confirm all internal wires are soldered to the correct pads as per the wiring diagram.
Specs in practice
- Screw Torque
- 1.00 - 1.20 Nm is the required force for all housing screws to maintain structural integrity.
Images and diagrams
- Exploded view: Shows the internal arrangement of the motor, chuck, and housing components.
- Soldering diagram: Indicates specific connection points for U, V, and W wires.
- Wire rooting: Illustrates the path for internal wiring to prevent damage.
- Screwing order: Provides the sequence and torque values for closing the tool housing.
Model compatibility
- Designed specifically for Bosch AdvancedDrill 18V-80 (3 603 JE2 000).
