Bosch AdvancedShear 18V-10 Extension Pole User Guide
Quick guide for the Bosch AdvancedShear 18V-10 Extension Pole, covering assembly, operation, maintenance, and safety instructions.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
The AdvancedShear 18V-10 Extension Pole is designed exclusively for use with the AdvancedShear 18V-10 unit. It allows for comfortable edge trimming near the ground and overhead shrub trimming. Always ensure the blade guard is attached before mounting or dismounting the grass shear attachment.
Assembly and Operation
To attach the grass shear (3) to the extension pole, slide it upward until you hear a click. Insert the battery (7) into the battery port (9). To remove, press the release button (10) on the extension pole and slide the attachment out.
Trimming Edges
Rotate the product 90° to the left or right to set it to the vertical position. Guide the product along the lawn edge, avoiding contact with paved paths, stones, or walls to protect the blade.
Trimming Hedges
Ensure the product is switched off before removing cut material or performing maintenance. You can cut branches up to 8 mm thick. Move the product steadily along the cutting line. The double-sided blade allows for cutting in both directions or with a side-to-side motion.
Maintenance and Storage
Always remove the battery before performing any maintenance, tool changes, or transport. Keep the product and ventilation slots clean. Do not spray with water or immerse in water. Store in a dry, secure place out of reach of children. Regularly check that all nuts, bolts, and screws are tight.
Battery Care
Protect the battery from moisture and water. Store only within the temperature range of -20 °C to 50 °C. The ideal storage temperature is 5 °C. Clean ventilation slots occasionally with a soft, dry brush.
Manufacturer information
Bosch
Practical help
Common problems
Blade stalls on tough material
The anti-blocking mechanism will automatically reverse the motor to clear the obstruction. If the overload persists, the blade will stop in the open position.
Significantly reduced operating time after charging
The battery is likely worn out and needs to be replaced.
Before use

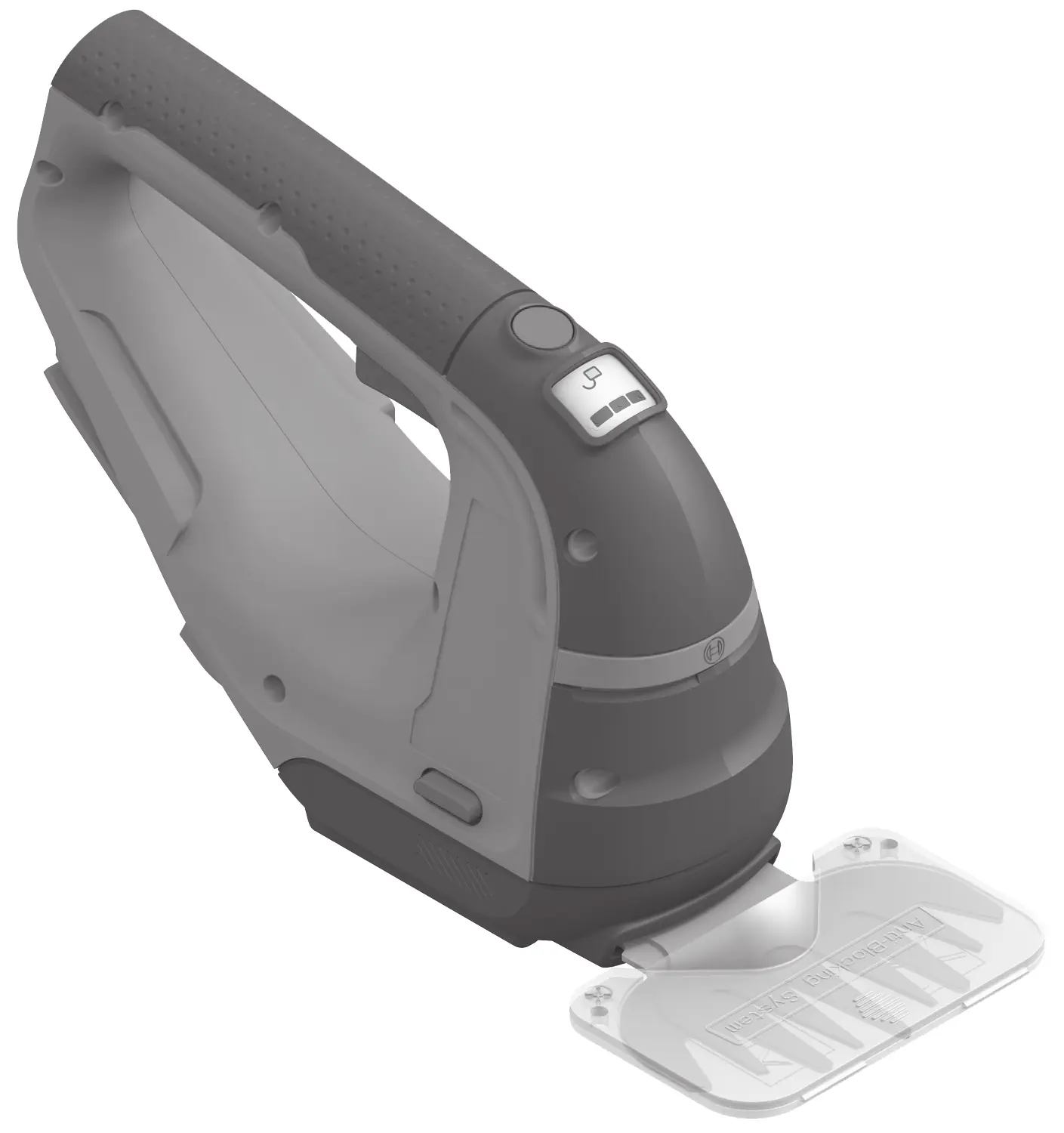

- Ensure the blade guard is attached before mounting/dismounting the grass shear.
- Check the hedge or shrub for hidden foreign objects like wire fences.
- Ensure the battery is fully charged.
- Verify that all nuts, bolts, and screws are tight.
- Wear appropriate eye, head, and hand protection.
Specs in practice
- Max. extension length
- 115 cm
Images and diagrams
- Figure A: Overview of components including lock-off button, blade attachments, and extension pole.
- Figure B/E: Mounting and dismounting the grass shear attachment.
- Figure C/I/J: Adjusting the product for edge trimming.
- Figure D/G/H: Techniques for hedge and shrub trimming.
Model compatibility
- Designed exclusively for use with the AdvancedShear 18V-10.
