Bosch GHE 18V-60 Cordless Hedgecutter Instruction Manual
Quick guide for the Bosch GHE 18V-60 and GHE 18V-50 cordless hedgecutters, covering operation, battery maintenance, safety, and troubleshooting.
Table of contents
Quick guide from the manual
This document provides essential operating instructions for the Bosch GHE 18V-60 and GHE 18V-50 cordless hedgecutters. Always read the full safety warnings before use. The tool is designed for cutting and trimming hedges and bushes.
Operation
To start the hedgecutter, insert the battery until it clicks, then simultaneously press the front switch (3) and the rear handle switch (2). To stop the tool, release either switch or both.
Working with the hedgecutter
- Move the tool evenly forward along the cutting line.
- The double-edge blade allows cutting in either direction or with a side-to-side motion.
- Cut the sides of the hedge first, then the top.
- For straight sides, cut from bottom to top in the direction of growth.
- Use a string guide to achieve a level finish on the top of the hedge.
Anti-Blocking Function
If the blade stalls on tough material, the motor load increases. The tool's micro-electronics will repeatedly reverse the motor to clear the obstruction. This action lasts up to 15 rounds. If the overload persists, the blades will stop in the open position.
Maintenance and Cleaning
- Always remove the battery before performing any maintenance, cleaning, or transport.
- Clean the tool with a damp cloth and apply Bosch lubricant spray to the blades after use.
- Keep the area around the front hand guard clean.
- Do not attempt to repair the tool or battery yourself; contact a Bosch service agent.
Battery Care
- Protect the battery from moisture, water, and heat.
- Store the battery within the temperature range of -20°C to 50°C.
- Clean ventilation slots occasionally with a soft, clean, dry brush.
- A significantly reduced operating time after charging indicates the battery is at the end of its life and must be replaced.
Manufacturer information
Bosch
Practical help
Common problems
Hedgecutter does not operate
Check if the battery is discharged or not fully connected (ensure both locking levels are engaged).
Cutting blade is hot
The blade may be blunt, have dents, or lack lubrication. Sharpen the blade, have it inspected, or apply lubricant spray.
Excessive vibrations or noise
The machine may be defective; contact a service agent.
Short cutting time per battery charge
Clean the blade, apply lubricant, check cutting technique, or ensure the battery is fully charged.
Before use
- Ensure the battery is fully charged.
- Check that the battery is properly inserted and locked.
- Inspect the cutting blades for wear or damage.
- Ensure all handles and guards are securely fitted.
- Lubricate the cutting blade with protective spray.
- Clear the area of wires and foreign objects.
Specs in practice
- No-load stroke rate
- The speed of the blade movement without resistance (3000 min-1).
- Cutting length
- The effective length of the blade (60 cm for GHE 18V-60, 50 cm for GHE 18V-50).
- Tooth opening
- The maximum thickness of branches the blade can cut (23 mm).
Images and diagrams

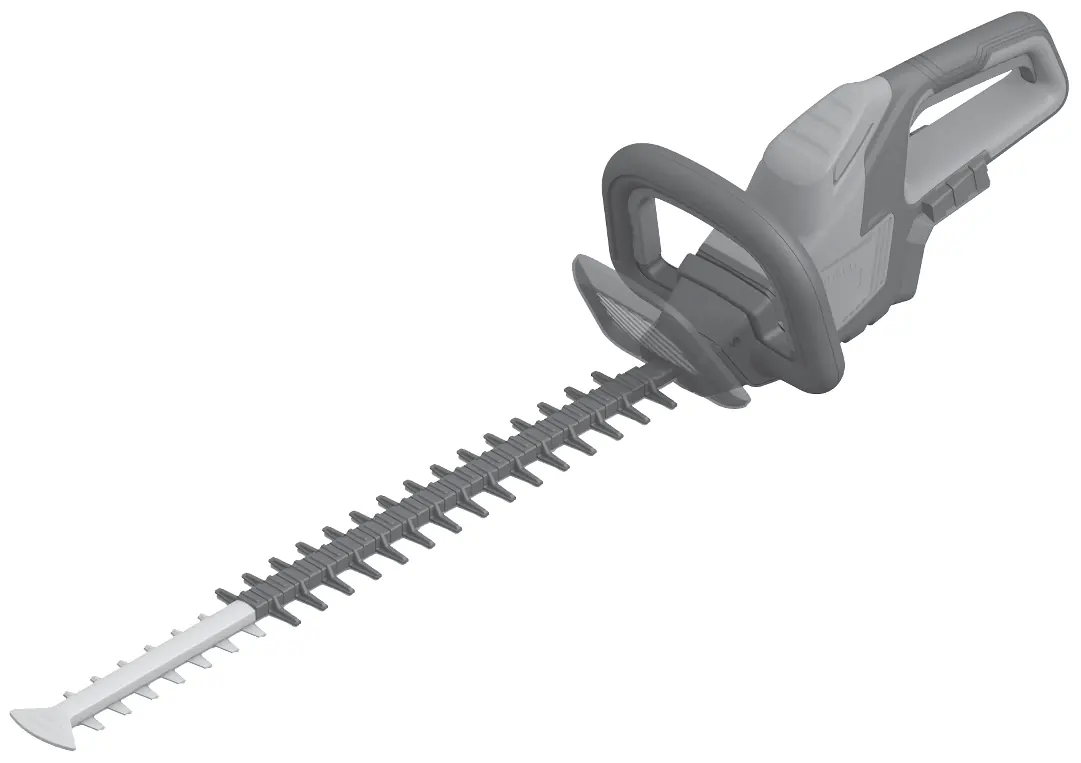

- Figure A: Overview of components including handle, switches, hand guard, and blade.
- Figure B: Battery insertion and charging process.
- Figure C: Starting the tool using both switches.
- Figure D: Stopping the tool.
- Figure E: Proper cutting technique for hedges.
Model compatibility
- Compatible with Bosch 18V battery system (GBA 18V, ProCORE18V, etc.).
- Recommended battery capacity is 4.0 Ah or higher.
- Use only compatible Bosch battery chargers (GAL 18..., GAL 36..., etc.).
