Bosch EasyMower 18V-32-150 / 18V-32-200 Lawnmower User Manual
Quick guide for the Bosch EasyMower 18V-32-150 and 18V-32-200 lawnmowers, covering assembly, operation, battery maintenance, and troubleshooting.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential instructions for the Bosch EasyMower 18V-32-150 and 18V-32-200. Before use, ensure the area is clear of debris and wildlife. Always remove the battery and isolator key before maintenance or cleaning. The mower is intended for domestic lawn mowing at ground level.
Assembly and Operation
For optimal cutting performance, set the cutting height to the same position on all four wheels. Refer to the assembly figures (A-L) for step-by-step guidance on mounting the handle, assembling the grassbox, and inserting the battery.
Operation
To operate, insert the isolator switch, then use the on/off switch. The blades continue to rotate for a few seconds after switching off. Do not tilt the machine when starting. Always maintain a safe distance from the discharge zone.
Battery Maintenance
Use only recommended chargers. The battery is protected against deep discharge by ECP. Store the battery separately from the mower in a dry place, ideally at 5°C. Do not leave the battery in direct sunlight.
Maintenance and Cleaning
Always wear gardening gloves when working near the blades. Keep the product and ventilation slots clean. Do not spray with water or immerse in water. Regularly check the grass bag for wear.
Troubleshooting
If the motor fails to start, check the battery charge, ensure the isolator key is fully inserted, and allow the motor to cool if the thermal protection has activated. If the mower leaves an uneven finish, check the cutting height and blade condition.
Manufacturer information
Bosch
Practical help
Common problems
Motor refuses to start
Check battery charge, ensure isolator key is fully inserted, or allow motor to cool if thermal protection is active.
Machine leaves ragged finish or motor labours
Increase cutting height, check for blockages, or replace blunt blade.
Blade not rotating when switched on
Clear obstruction from under the mower (wear gloves) or check if blade nut/bolt is loose.
Before use
- Inspect the area for wildlife and foreign objects (stones, sticks, wires).
- Visually inspect the blade and blade assembly for wear or damage.
- Check the grass catcher for wear or deterioration.
- Ensure all guards are in place and properly mounted.
- Set the cutting height to the same position on all 4 wheels.
Specs in practice
- Cutting width
- 32 cm
- Height of cut
- 20 / 40 / 60 mm
- Grass bag capacity
- 31 liters
Images and diagrams

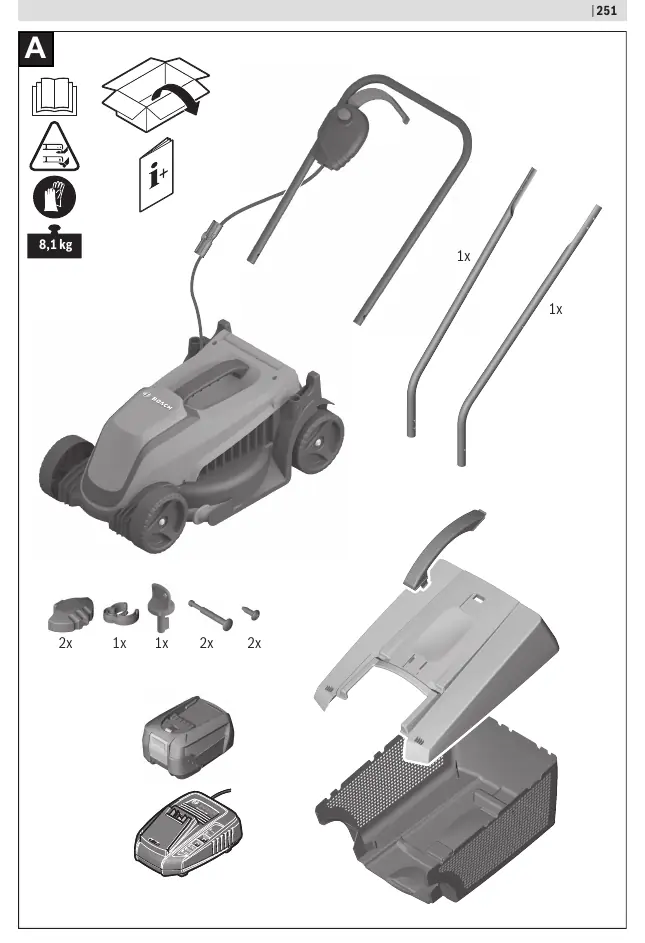

- Figure A: Delivery scope
- Figure B: Mounting the handle
- Figure C: Assembling the grassbox
- Figure E: Setting the height of cut
- Figure K: Blade maintenance/replacement
Model compatibility
- Compatible with Bosch PBA 18V batteries (3.0 Ah, 4.0 Ah, 5.0 Ah, 6.0 Ah).
- Use only with specified Bosch chargers (e.g., AL 1810 CV, AL 1830 CV, AL 1880 CV).
