User Manual for Bosch UniversalRotak 450-580 Electric Lawnmower
Quick guide for the Bosch UniversalRotak 450, 460, 470, 490, 550, and 580 electric lawnmowers. Includes safety instructions, operation, leaf collection, maintenance, and troubleshooting.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides instructions for the Bosch UniversalRotak series (450, 460, 470, 490, 550, 580). Always follow safety guidelines to ensure proper use and prevent injury.
Safety Notes
Read all instructions carefully. Keep bystanders at a safe distance. Do not touch rotating blades. Wear sturdy footwear and long trousers. Do not operate the machine in the rain.
Operation
Switch off and remove the plug from the mains before any adjustments, cleaning, or if the cable is entangled. Keep the supply cable away from the cutting blades. Wait until all machine components have completely stopped before touching them.
Leaf Collect
The leaf collect blade is designed to pick up autumn leaves. Set the cutting height to 70 mm for optimal results. Ensure the area is clear of foreign objects before collecting.
Maintenance
Always wear gardening gloves when handling or working near sharp blades. Ensure all nuts, bolts, and screws are tight to maintain safe working conditions. Check the grass catcher frequently for wear.

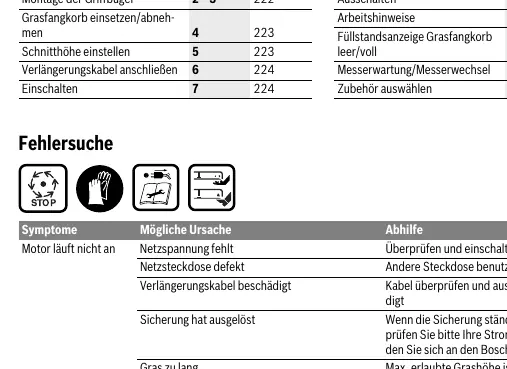

Troubleshooting
If the motor does not start, check the power supply, extension cable, and fuse. If the machine vibrates abnormally, check the blade and blade nut. If the motor labours, increase the cutting height.
Technical Data
The series features models with 1300W or 1400W power, 20-70mm cutting height, and 40L grassbox capacity.
Manufacturer information
Bosch
Practical help
Common problems
Motor does not start
Check power supply, check socket, check extension cable, check fuse, check if grass is too long (max 30cm), allow motor to cool.
Machine functions intermittently
Check extension cable for damage, contact Bosch customer service.
Ragged finish or motor labours
Increase cutting height, replace blunt blade, clear obstruction underneath the machine.
Before use
- Check blades and bolts for wear
- Inspect area for foreign objects
- Ensure grass catcher is in good condition
- Check extension cable for damage
- Wear protective gloves and sturdy footwear
Specs in practice
- Rated power input
- Power consumption of the motor (1300W-1400W depending on model).
- Height of cut
- Adjustable range (20-70mm).
- Grassbox capacity
- Volume of the grass collector (40L).
Images and diagrams
- Assembly of handle
- Grassbox fitting/removing
- Cutting height adjustment

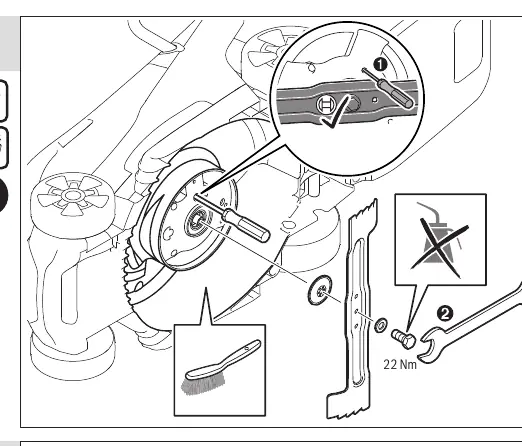

- Blade maintenance/swap
Model compatibility
- Use only approved extension cables.
- Use only Bosch-approved replacement parts.
