Operator's Manual for Husqvarna LC 137i Lawn Mower

Quick guide from the manual

This manual provides essential information for operating and maintaining your Husqvarna LC 137i lawn mower. Before use, ensure the battery is charged (supplied at 30% capacity) and that you have read the safety chapter. Always remove the battery and turn the safety key to 0 before performing any maintenance or assembly tasks.

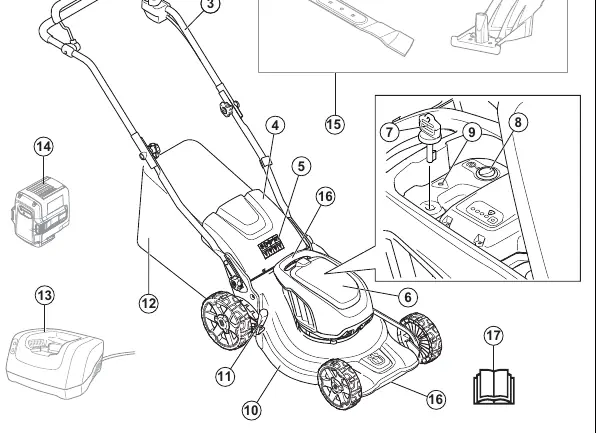

Product description

The Husqvarna LC 137i is a pedestrian-controlled rotary lawn mower. It features a grass catcher for collection, or it can be used for rear discharge. A mulch kit (accessory) is available to cut grass into fertilizer.

Assembly

Follow these steps to prepare your mower:

• Handle assembly: Align holes in the handlebar with the lower handle, attach screws, cable clips, and knobs. Tighten knobs fully.
• Grass catcher: Attach the frame to the grass bag with the rigid part at the bottom. Attach the bag to the frame using clips. Mount the catcher to the chassis.
• Mulch plug: Lift the rear cover, remove the grass catcher, and insert the mulch plug into the discharge channel.

Operation

To operate the mower:

• Starting: Open the battery lid, insert a charged battery, turn the safety key to 1, release the start inhibitor, and push the motor brake handle toward the handlebar.
• SavE™ function: Use this for longer operation time. Push the SavE™ button to position 1 to start.
• Stopping: Release the motor brake handle, open the battery lid, and turn the safety key to 0.

Maintenance

Regular maintenance is crucial for safety and performance:

• General inspection: Check that nuts and screws are tightened.
• Cleaning: Clean plastic parts with a dry cloth. Do not use water or high-pressure washers.
• Cutting equipment: Inspect the blade for damage or bluntness. If damaged, replace the blade. Always balance the blade after sharpening.

Troubleshooting

If the mower does not operate correctly, check the error LED on the battery or the warning indicator under the battery lid. Common issues include a blocked blade (5 flashes), motor overload (3 flashes), or incorrect start procedure (12 flashes). Refer to the troubleshooting section for specific solutions.

Technical data

The mower features a 36V BLDC (brushless) motor. Cutting height is adjustable between 25-75 mm, and the cutting width is 37.5 cm. The grass catcher capacity is 40 liters.
