Bosch GSR | GSB 180-LI Professional Cordless Drill/Driver

Product Description

The Bosch GSR 180-LI and GSB 180-LI are powerful, professional-grade cordless drill/drivers. The GSR 180-LI is ideal for driving screws and drilling in wood, metal, ceramic, and plastic. The GSB 180-LI offers the same functionality with the added capability of impact drilling in brick, concrete, and stone.

Technical Specifications

• Rated Voltage: 18V
• No-load Speed (1st/2nd gear): 0–500 / 0–1900 min-1
• Max. Torque (hard/soft): 54/21 Nm
• Max. Drilling Diameter (Wood/Steel/Masonry): 35mm / 10mm / 10mm (GSB only)
• Tool Holder: 1.5–13mm

Safety Instructions

General Safety: Always keep your work area clean and well-lit. Do not operate power tools in explosive atmospheres. Keep children and bystanders away while operating the tool.

Electrical Safety: Ensure the power tool plug matches the outlet. Avoid body contact with earthed surfaces. Keep power tools away from rain or wet conditions.

Personal Safety: Stay alert, watch what you are doing, and use common sense. Wear personal protective equipment, including eye protection. Prevent unintentional starting by ensuring the switch is in the off-position before connecting the battery.

Operation

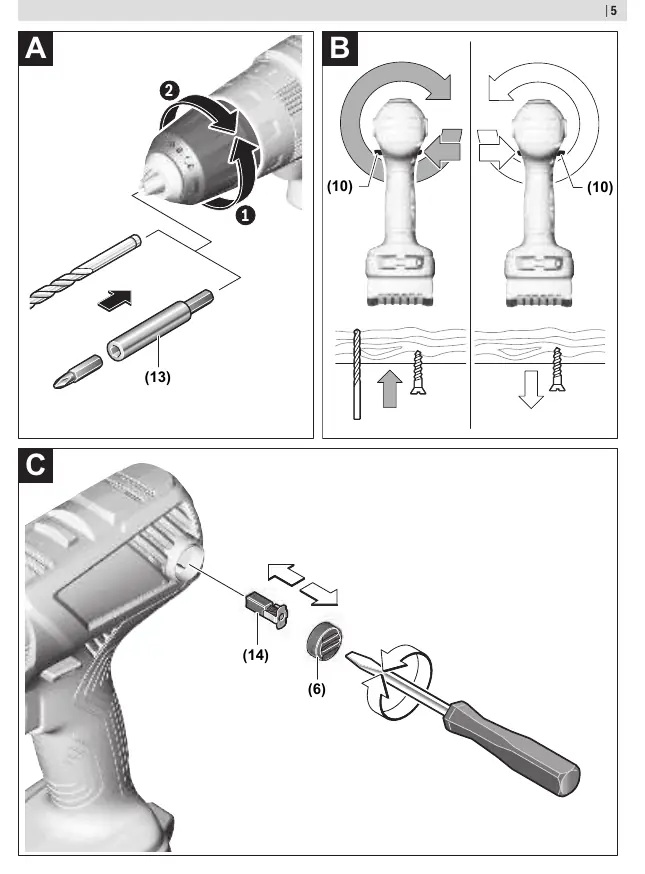

Inserting the Battery: Set the rotational direction switch to the middle position to prevent accidental activation. Insert the charged battery into the handle until it engages.

Setting Direction: Use the rotational direction switch to change the tool's direction. Right rotation for drilling and driving screws; left rotation for loosening screws and nuts.

Operating Modes: Use the torque presetting ring (GSR) or mode presetting ring (GSB) to select between drilling, screwdriving, and impact drilling (GSB only).

Maintenance

Maintenance and Cleaning: Remove the battery before any work on the tool (e.g., maintenance, tool change). Keep the tool and ventilation slots clean for safe operation.

Carbon Brushes: Check the length of the carbon brushes every 2–3 months and replace both if necessary. Use only original Bosch carbon brushes.

Troubleshooting

If the tool suddenly fails, remove and check the carbon brushes. If the battery is no longer functional, contact an authorized Bosch power tool service center.

Disposal

Power tools, batteries, accessories, and packaging should be sorted for environmentally friendly recycling. Do not dispose of power tools and batteries in household waste.
