Bosch GWS 17-125 CIE Angle Grinder Technical Overview

Product Overview

The Bosch GWS 17-125 CIE is a high-performance professional angle grinder designed for demanding grinding and cutting applications. Engineered for durability and precision, this tool features a robust motor and advanced internal components to ensure consistent power delivery under load. The device is built with a modular design, allowing for efficient maintenance and component replacement.

Technical Specifications and Assembly

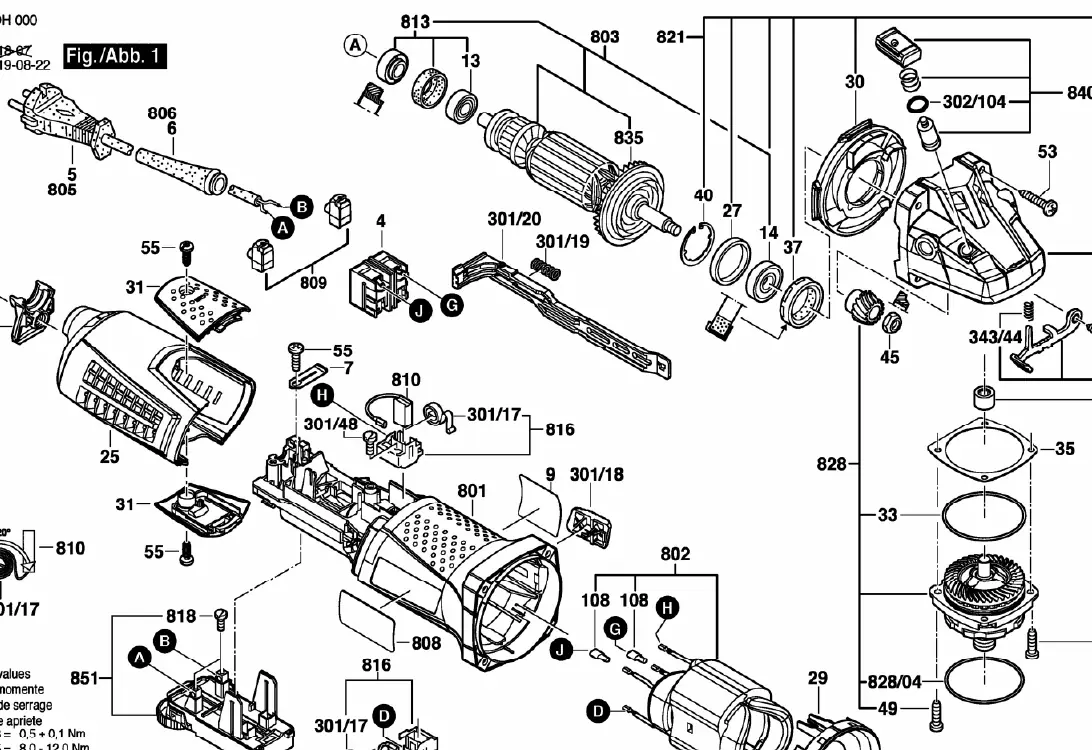

The internal architecture of the GWS 17-125 CIE consists of a high-precision armature, field coil, and gear assembly. Proper assembly is critical for the longevity of the tool. When performing maintenance or repairs, ensure that all fasteners are tightened to the specified torque values to prevent vibration and mechanical failure. Key components include the motor housing, gear head, and electronic control module, which regulates speed and performance.

Safety and Operation

Safety is paramount when operating high-speed power tools. Always wear appropriate personal protective equipment, including eye protection and hearing protection. Before starting the tool, ensure that the grinding disc or cutting wheel is securely mounted and free of cracks or damage. Never operate the grinder without the protective guard in place. The tool should be held firmly with both hands, maintaining a stable stance to control potential kickback forces.

Maintenance and Care

Regular maintenance is essential to extend the service life of your angle grinder. Keep the ventilation slots clear of dust and debris to prevent motor overheating. Periodically inspect the carbon brushes for wear and replace them if they reach the minimum length. Ensure that the gear housing is adequately lubricated with the recommended grease. If the tool exhibits unusual noise, excessive vibration, or a burning smell, discontinue use immediately and inspect the internal components for signs of wear or electrical faults.

Troubleshooting and Disposal

If the tool fails to start, check the power supply, the power cord for damage, and the integrity of the internal electrical connections. If the motor runs but the disc does not rotate, inspect the gear assembly for stripped teeth or mechanical obstruction. When the tool reaches the end of its operational life, it should be disposed of in accordance with local environmental regulations. Do not discard power tools in household waste; utilize authorized recycling centers to ensure proper handling of electronic components and materials.
