Bosch EasyLevel Laser Spirit Level

Product Description

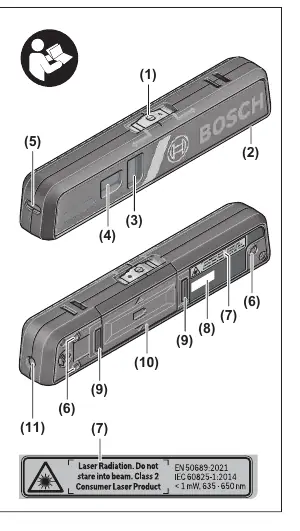

The Bosch EasyLevel is a consumer-grade laser tool designed for indoor use. It is intended for determining and checking horizontal and vertical lines. The device features integrated spirit levels for manual alignment and a magnetic holder for versatile mounting options, including on walls or tripods.

Technical Data

• Working range: Up to 5 m (line mode with holder), up to 20 m (point mode).
• Levelling accuracy: ±0.5 mm/m.
• Laser class: 2.
• Batteries: 2 x 1.5 V LR3 (AAA).
• Operating time: Approx. 15 hours.
• Dimensions: 154 x 24 x 30 mm.
• Weight: 0.14 kg.

Safety Instructions

Warning: Do not direct the laser beam at persons or animals and do not stare into the direct or reflected laser beam. This can cause blindness, accidents, or eye damage. Keep the device away from magnetic storage media and magnetically sensitive devices, as the integrated magnets can cause irreversible data loss. Keep the magnet away from medical implants like pacemakers or insulin pumps.

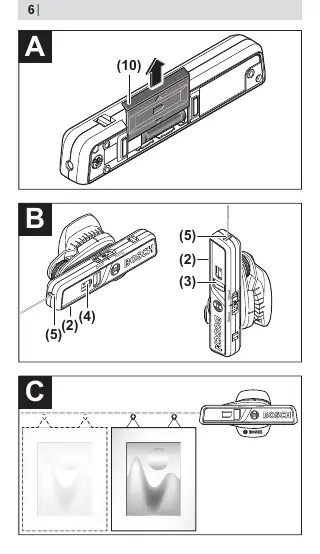

Operation

Starting Operation: Protect the tool from moisture and direct sunlight. Avoid extreme temperatures or temperature fluctuations. If the tool is subjected to a substantial knock or dropped, check its accuracy against a known reference line.

Switching On/Off: Use the on/off switch to select between line operation (— position) and point operation (● position). Always switch off the tool after use and never leave it unattended while switched on.

Maintenance and Cleaning

Keep the measuring tool clean at all times. Do not immerse it in water or other liquids. Wipe off dirt with a damp, soft cloth; do not use detergents or solvents. Regularly clean the areas around the laser outlet aperture, ensuring no lint is present.

Disposal

Measuring tools, accessories, and packaging should be recycled in an environmentally friendly manner. Do not dispose of measuring tools or batteries with household waste.
