Spare Parts List for Bosch GKS 12V-26 Circular Saw
A comprehensive spare parts guide for the Bosch GKS 12V-26 circular saw, including an exploded view diagram, part identification numbers, and essential torque specifications for maintenance.
Table of contents
Quick guide from the manual
This document serves as the official spare parts list for the Bosch GKS 12V-26 circular saw (Type 3 601 FA1 001). It provides an exploded view of the tool components and a corresponding list of part reference numbers to assist in identification and ordering of replacement parts. Always refer to the torque values provided when reassembling the tool.

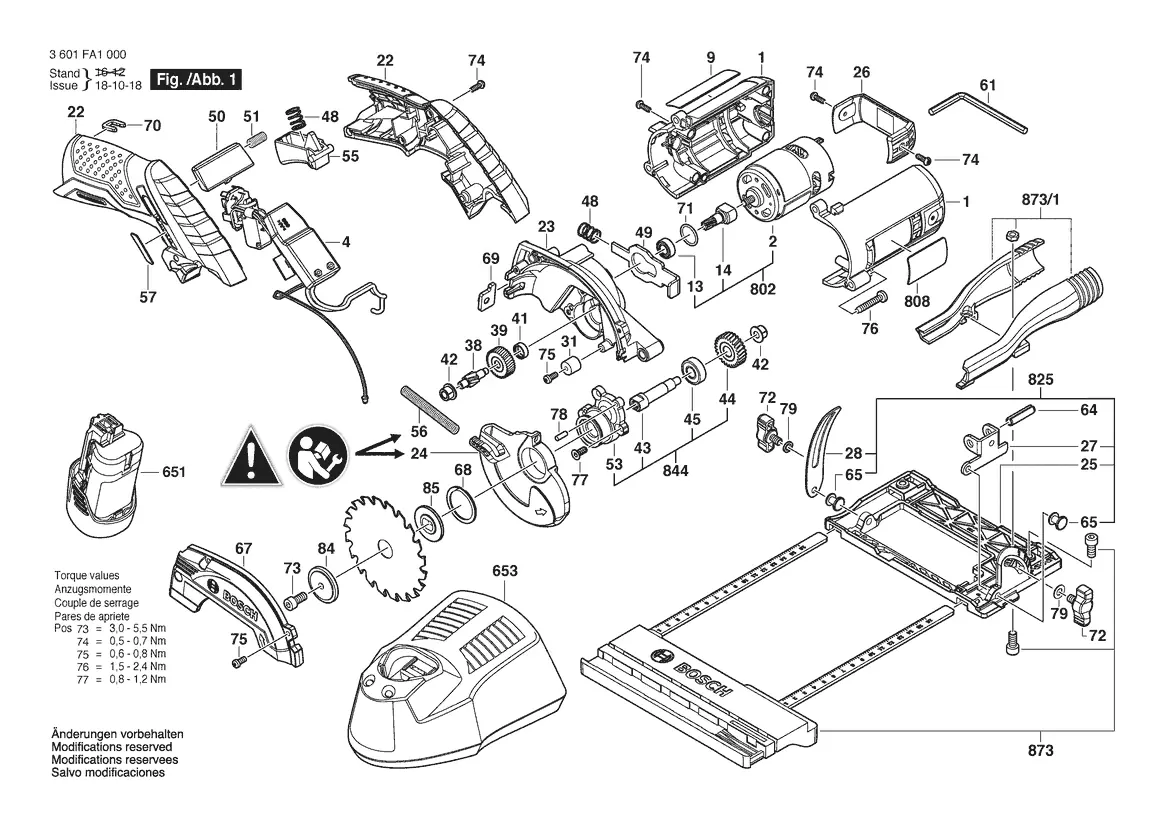

Exploded view and components
The diagram illustrates the internal and external assembly of the GKS 12V-26. Key components identified include the motor, electronic module, pendulum guard, transmission shaft, and base plate. Each part is marked with a reference number that corresponds to the official Bosch part list.
Torque specifications
When performing maintenance or replacing parts, ensure the following torque values are applied to maintain tool integrity:
- Pos 73: 3.0 - 5.5 Nm
- Pos 74: 0.5 - 0.7 Nm
- Pos 75: 0.6 - 0.8 Nm
- Pos 76: 1.5 - 2.4 Nm
- Pos 77: 0.8 - 1.2 Nm
Key spare parts reference
Below are some of the primary components available for the GKS 12V-26:
- Motor (DC): 1 607 022 64L
- Electronic module/switch: 1 619 P10 653
- Pendulum guard: 1 619 P10 722
- Transmission shaft: 1 619 P10 730
- Blade clamping screw: 1 619 P11 432
- Base plate: 1 619 P11 485
- Battery (GBA 12V 3Ah): 651
- Charger (GAL 12V-40): 653
Manufacturer information
Bosch
Practical help
Common problems
Part identification
Use the exploded diagram to locate the part number and cross-reference it with the provided list to ensure the correct replacement part is ordered.
Assembly safety
Strictly adhere to the specified torque values (0.5 Nm to 5.5 Nm depending on the screw position) to prevent damage to the tool housing or mechanical failure.
Before use
- Verify the tool type (3 601 FA1 001) matches the documentation.
- Ensure the battery (GBA 12V) is compatible with the charger (GAL 12V-40).
- Check that all screws are tightened to the specified torque values.
- Inspect the pendulum guard for smooth operation before use.
Specs in practice
- Torque values
- The specific force required for tightening screws to ensure safety and prevent stripping threads.
- Type 3 601 FA1 001
- The specific model identification code for the GKS 12V-26 required when ordering parts.
Images and diagrams
- The diagram provides an exploded view of the GKS 12V-26, showing the relationship between the motor, transmission, blade assembly, and base plate.
- Numbers in the diagram correspond directly to the part reference list provided in the manual.
Model compatibility
- Designed for use with Bosch 12V battery systems (GBA 12V).
- Compatible with GAL 12V-40 battery charger.
