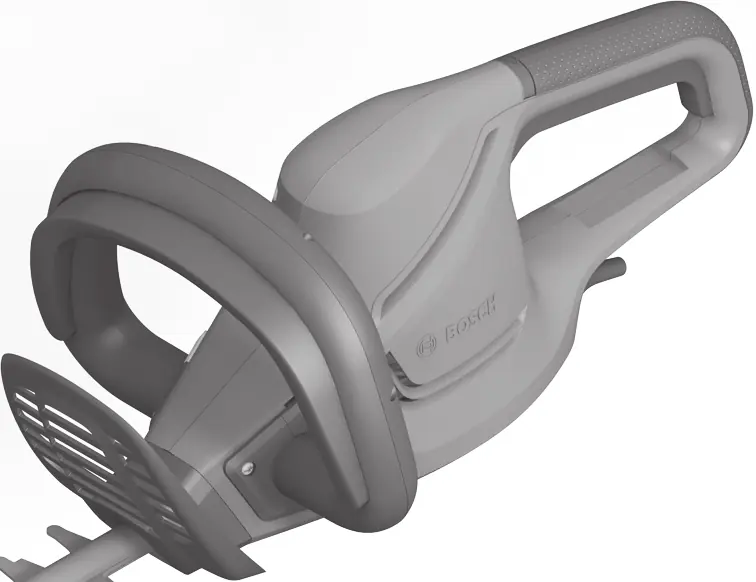

Bosch UniversalHedgeCut 50/58/60 & AdvancedHedgeCut 65/68/70 Hedge Trimmer User Manual
Quick guide for the Bosch UniversalHedgeCut and AdvancedHedgeCut series hedge trimmers. Includes safety instructions, operating procedures, maintenance, and troubleshooting.
Table of contents
Quick guide from the manual
This manual covers the operation and safety of the Bosch UniversalHedgeCut (50, 58, 60) and AdvancedHedgeCut (65, 68, 70) series hedge trimmers. Always ensure the tool is switched off and the plug is disconnected before performing any maintenance, cleaning, or if the cable is damaged.
Operation
To switch the trimmer on, press and hold the lock-off button (3), then press the On/Off switch (2). To switch off, release the lock-off button (3) and then the On/Off switch (2).
Working with the hedge trimmer
Move the trimmer evenly forward along the cutting line. The double-sided blade allows for cutting in either direction or with a side-to-side motion. Cut the sides of the hedge first, then the top. For straight sides, cut from bottom to top in the direction of growth.
Maintenance and cleaning
Always disconnect the mains plug before working on the product. Keep the product and ventilation slots clean for safe operation. Never spray the product with water or immerse it in water. Lubricate the blade with maintenance spray before each use. Store in a dry, secure place out of the reach of children.
Safety
Always wear eye protection and sturdy gloves. Do not operate the trimmer in bad weather, especially when there is a risk of lightning. Keep all power cords away from the cutting area. The tool is double-insulated and does not require an earth connection.
Manufacturer information
Bosch
Practical help
Common problems
Hedge trimmer does not operate
Check mains voltage, try another socket, check mains cable for damage, or replace the fuse.
Hedge trimmer operates intermittently
Contact your Bosch service agent for internal wiring or switch defects.
Blades become hot
Have the blade sharpened or inspected; apply lubricant spray to reduce friction.
Before use
- Inspect the hedge for wires or foreign objects.
- Check that all handles and guards are properly fitted.
- Ensure the mains cable and extension cord are not damaged.
- Lubricate the blade with maintenance spray.
- Check that all nuts, bolts, and screws are tight.
Specs in practice
- Rated power input
- 480W for Universal models, 500W for Advanced models.
- Cutting length
- Varies by model (500mm to 700mm) determining the reach of the blade.
- Tooth opening
- Maximum branch diameter the blade can cut (26mm to 34mm).
Images and diagrams
- Figures A & B: Identification of components including handle, switch, lock-off button, hand guard, and blade.
- Figures C & D: Correct two-handed operation for switching the tool on and off.
- Figure E: Proper technique for trimming hedge sides and top.
Model compatibility
- Use only approved extension cables compliant with EN 61242/IEC 61242 or IEC 60884-2-7.
- Extension cables must be earthed and watertight for outdoor use.
