User Manual for Bosch GDR | GDS | GDX Professional Cordless Impact Screwdriver
Quick guide for the Bosch GDR, GDS, and GDX Professional cordless impact screwdrivers. Includes setup, battery handling, tool changing, operation tips, and maintenance instructions.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides operating instructions for the Bosch GDR, GDS, and GDX Professional cordless impact screwdrivers. It covers essential safety, battery management, tool changing procedures, and operational advice for driving and loosening screws and bolts.
Device description
The tool features a tool holder, locking sleeve, carrying strap, belt clip, battery pack with unlocking button, rotational direction switch, On/Off switch, PowerLight, and handle. Carbon brushes are accessible for maintenance.
Battery and charging
Use only original Bosch lithium-ion batteries. The battery is supplied partially charged and should be fully charged before first use. It is protected against deep discharge by Electronic Cell Protection (ECP). The battery features NTC temperature control, allowing charging only between 0 °C and 45 °C.
Tool changing
GDR/GDX models: Pull the locking sleeve forward, insert the tool bit into the holder, and release the sleeve to lock. Use bits with a ball catch or a universal bit holder.
GDS/GDX models: Slide the application tool (impact socket) onto the square drive of the tool holder.
Operation
Set the rotational direction switch to the center position to prevent accidental starting. Press the switch to the left for right rotation (tightening) and to the right for left rotation (loosening). The speed is variably adjustable by the pressure applied to the On/Off switch.
Working advice
The impact mechanism activates once the screw connection runs tight. Maximum torque is typically achieved after 6–10 seconds of impact. Always verify the final tightening torque with a torque wrench.
Maintenance and cleaning
Regularly clean the air vents to prevent dust accumulation. Check carbon brushes every 2–3 months and replace them if necessary using only original Bosch parts. Always remove the battery before performing any maintenance or transport.
Manufacturer information
Bosch
Practical help
Common problems
Machine stops automatically
The battery is empty and protected by ECP. Do not continue pressing the On/Off switch as this may damage the battery.
Application tool feels wobbly
This is normal for the system and does not affect function or safety.
Reduced working period after charging
The battery has reached the end of its service life and must be replaced.
Before use
- Ensure the battery is fully charged.
- Set the rotational direction switch to the center position for safety.
- Check that the correct tool bit or socket is securely attached.
- Verify the work area is clean and well-lit.
Specs in practice
- No-load speed
- The rotational speed of the tool without any load, adjustable via the trigger.
Images and diagrams

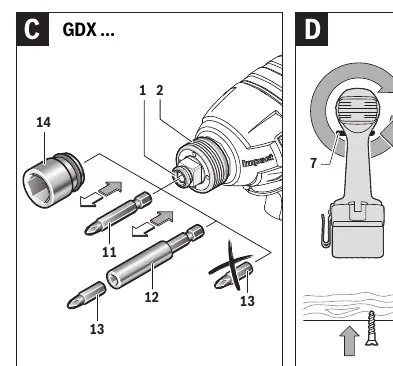

- Figure A/C: Shows inserting and removing bits for GDR and GDX models.
- Figure B: Shows attaching an impact socket to the GDS square drive.
- Figure D: Illustrates the rotational direction switch settings.
- Figure E: Demonstrates the procedure for replacing carbon brushes.
Model compatibility
- Use only original Bosch lithium-ion batteries.
- GDR/GDX models use 1/4" hexagon socket.
- GDS/GDX models use 1/2" square drive.
