Cisco IOS XE 17.x Ethernet Operations, Administration, and Maintenance (OAM) Guide

Overview of Ethernet OAM

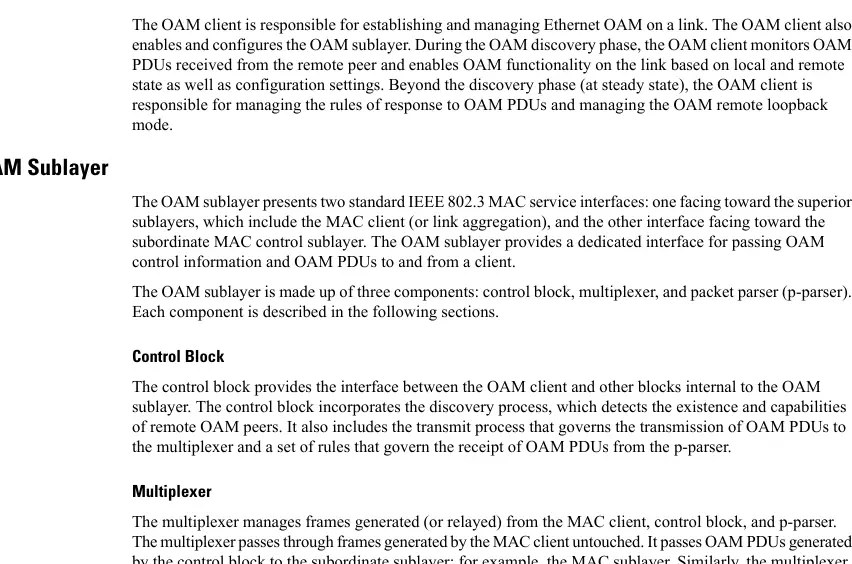

Ethernet Operations, Administration, and Maintenance (OAM) is a protocol designed for installing, monitoring, and troubleshooting metro Ethernet networks and WANs. It operates as an optional sublayer in the data link layer of the OSI model, providing essential management capabilities for link uptime in complex service provider environments.

Key OAM Features

• Discovery: Identifies network devices and their OAM capabilities.
• Link Monitoring: Detects link faults using event notification PDUs, including symbol errors, frame errors, and CRC errors.
• Remote Failure Indication: Communicates critical conditions like Link Fault, Dying Gasp, and other vendor-specific critical events.
• Remote Loopback: Allows administrators to test link quality, delay, jitter, and throughput by looping frames back to the source.

Configuration and Management

Ethernet OAM is disabled by default on interfaces. It can be enabled and configured using the ethernet oam command in interface configuration mode. Administrators can define specific thresholds for link monitoring, such as frame error rates or symbol period errors, to trigger alerts or actions. For large-scale deployments, OAM options can be managed using templates, allowing for consistent configuration across multiple interfaces.

High Availability and Redundancy

The implementation supports High Availability (HA) features, including Stateful Switchover (SSO) and Nonstop Forwarding (NSF), ensuring that OAM sessions remain stable during Route Switch Processor (RSP) switchovers. In-Service Software Upgrades (ISSU) are also supported, allowing for software updates without disrupting packet flow.

Verification and Troubleshooting

Administrators can verify OAM status and performance using various show commands, such as show ethernet oam summary, show ethernet oam discovery, and show ethernet oam statistics. These tools provide visibility into session states, error counters, and fault records, which are critical for maintaining network health and meeting service-level agreements.
