Corsair Carbide Series 175R RGB Mid-Tower Gaming Case

Product Overview

The Corsair Carbide Series 175R RGB is a compact mid-tower gaming case designed for clean aesthetics and efficient airflow. It features a tempered glass side panel to showcase your components and includes a 120mm RGB fan for customizable lighting.

Technical Specifications

• Dimensions: 418mm (L) x 210mm (W) x 450mm (H)
• Maximum GPU Length: 330mm
• Maximum CPU Cooler Height: 160mm
• Maximum PSU Length: 180mm
• Fan Mounts: Front (3x 120mm / 2x 140mm), Top (2x 120mm / 2x 140mm), Rear (1x 120mm)
• Radiator Compatibility: Front (360mm / 280mm), Top (240mm), Rear (120mm)

Installation and Setup

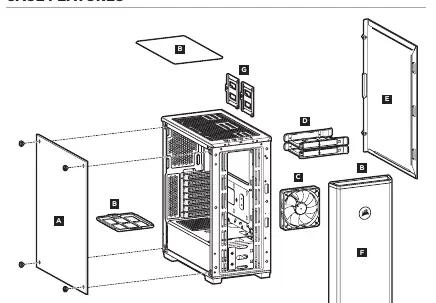

The case supports ATX, Micro-ATX, and ITX motherboards. Installation involves removing the side panels, securing the motherboard using the provided standoffs, and installing storage drives into the dedicated HDD and SSD trays. The front bezel can be removed to access front fan mounts and dust filters. The HDD cage is movable to accommodate different power supply sizes.

RGB Lighting

The included RGB fan connects to a 12V motherboard RGB header. Ensure correct orientation when connecting to the header to avoid damage.

Maintenance and Support

Regularly clean the dust filters to maintain optimal airflow. If you receive a damaged case or encounter issues with components like fans, please visit support.corsair.com to request an RMA for replacement parts.
