Costway 10x20FT Patio Heavy Duty Carport Garage Assembly Manual
Comprehensive assembly and setup guide for the Costway 10x20FT heavy-duty carport, including parts identification and structural assembly instructions.
Table of contents
Product Overview
The Costway 10x20FT Heavy Duty Carport is a robust outdoor shelter designed to provide protection for vehicles, equipment, or outdoor event spaces. This structure features a modular metal frame system that requires assembly. It is intended for use as a temporary or semi-permanent shelter and must be properly anchored to ensure stability against wind and environmental conditions.
Assembly Preparation
Before beginning assembly, ensure you have a clear, flat area large enough to accommodate the 10x20FT footprint. It is highly recommended to have at least two people assist with the assembly process due to the size and weight of the metal components. Verify all parts against the included parts list to ensure no components are missing before starting.
Frame Assembly
The frame is constructed using numbered poles (1 through 6) and specific connectors. Begin by laying out the components according to the provided diagram. Connect the roof support poles first, ensuring that the joints are fully seated. Once the roof structure is assembled, attach the vertical leg poles. Use the provided hardware, including bolts, wing nuts, and spring clips, to secure every connection point. Ensure all bolts are tightened firmly, but do not overtighten, as this may damage the metal tubing.
Safety and Maintenance
Safety is paramount when installing a large structure. Always use the included ground stakes or anchors to secure the carport to the ground. Do not attempt to assemble or use the carport during high winds or severe weather conditions. Regularly inspect the frame for any signs of rust, loose bolts, or bent poles. If the structure shows signs of instability, tighten all hardware immediately. During winter months or heavy snowfall, remove the canopy cover to prevent structural collapse due to the weight of snow accumulation.
Manufacturer information
Costway
Practical help
Common problems
Structure feels unstable or wobbly
Check all bolt connections and ensure all spring clips are fully engaged in their respective holes. Ensure the structure is properly anchored to the ground.
Difficulty aligning poles during assembly
Ensure you are working on a level surface. Do not fully tighten bolts until the entire frame section is connected to allow for minor adjustments.
Before use
- Verify all parts (poles 1-6, connectors, hardware) are present.
- Select a flat, level location for installation.
- Ensure at least two people are available for assembly.
- Check that all ground anchors are available and ready for use.
- Clear the area of sharp objects that could damage the canopy.
Images and diagrams

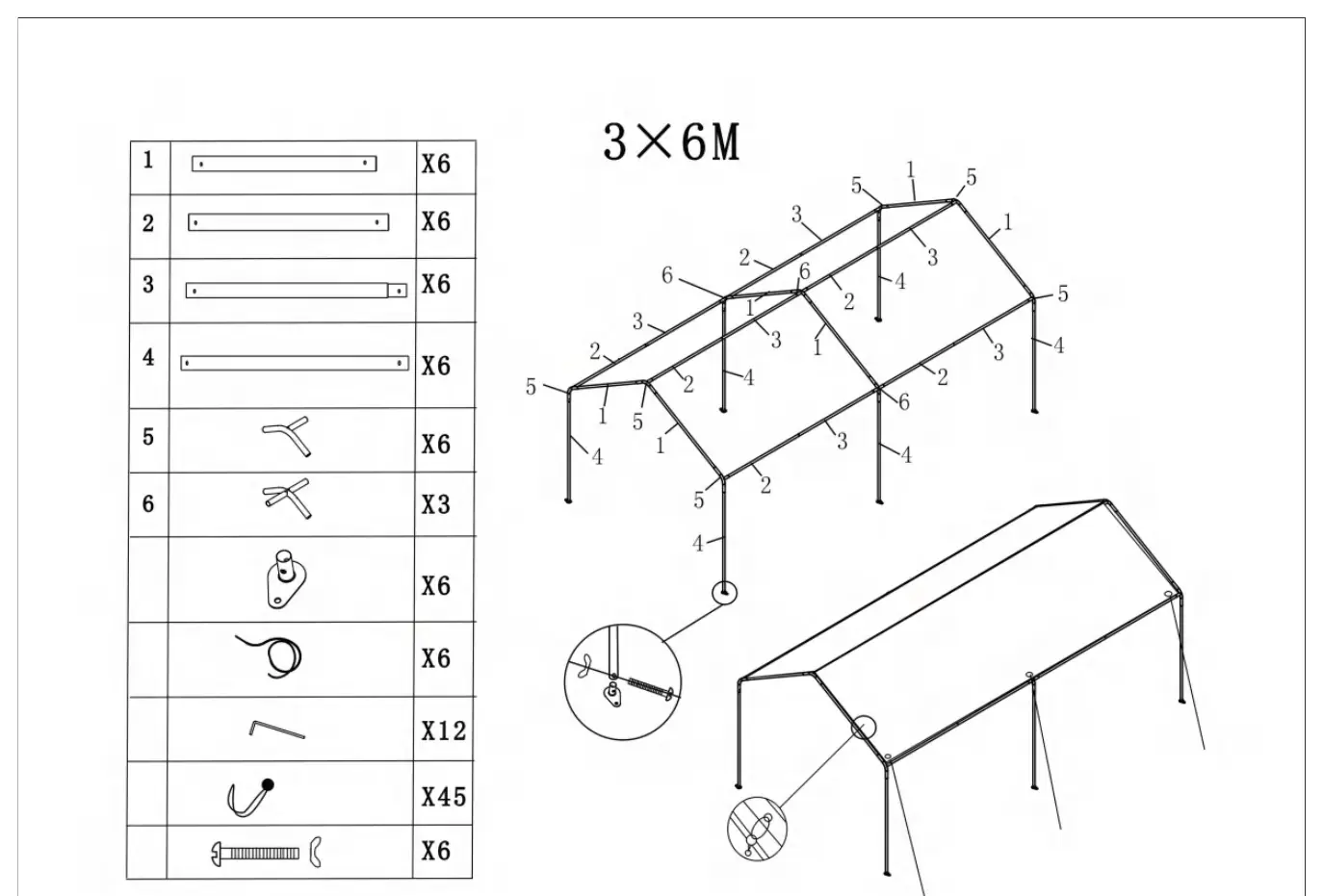

- The diagram illustrates the numbering system for poles 1 through 6, which must be placed in their specific positions to maintain structural integrity.
- Detailed callouts show the correct orientation of the spring clips and bolt-through connections at the joints.
Model compatibility
- Designed for outdoor use on level ground.
- Not intended for use in extreme weather or high-wind environments.
- Requires removal of the cover during heavy snow loads.
