Installation Instructions for Detex 01CM and 02CM Mortise Outside Trims
A comprehensive installation guide for Detex 01CM and 02CM Mortise Outside Trims, covering door preparation, drilling, and hardware assembly steps.
Table of contents
Quick guide from the manual
This document provides installation instructions for Detex 01CM (blank trim) and 02CM (trim with pull) Mortise Outside Trims. The recommended height from the finished floor to the trim/device centerline is 40 inches. Always wear safety glasses before beginning installation.
Tools and supplies
- Safety glasses
- Pencil
- Center punch
- Hammer
- Drill motor
- Drill bits and taps
- Phillips screwdriver
- Tape measure
Door preparation

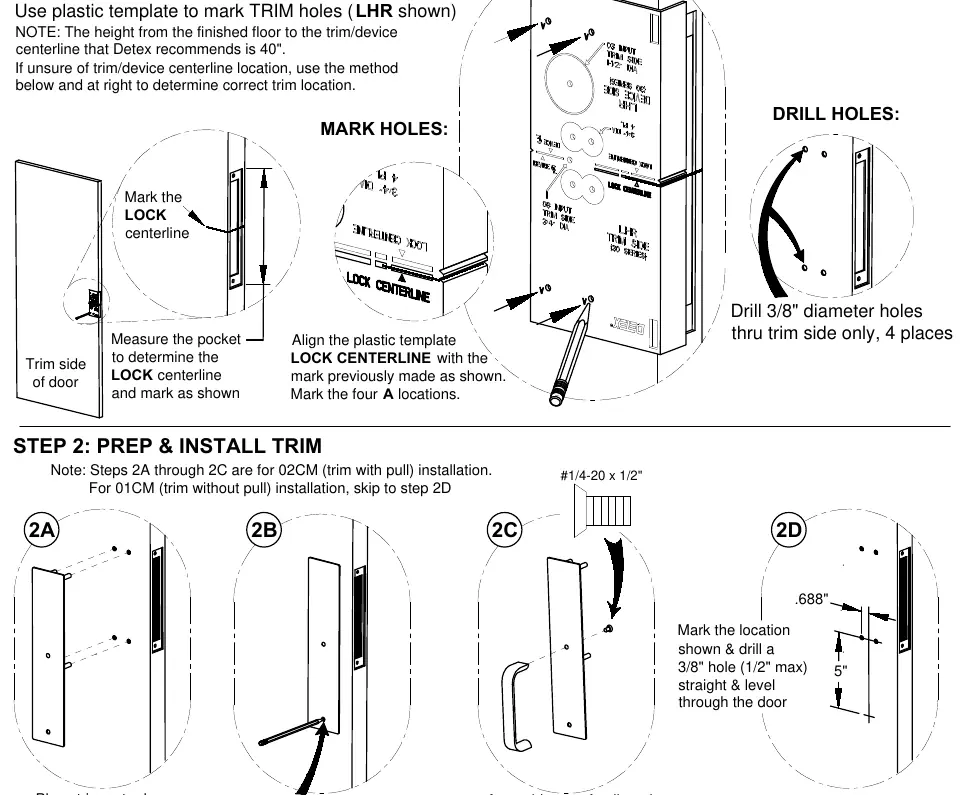

Before installing the trim, you must mark and drill the necessary holes:
- Measure the pocket to determine the lock centerline and mark it on the door.
- Align the provided plastic template's LOCK CENTERLINE with your mark.
- Mark the four A locations for the trim holes.
- Drill 3/8-inch diameter holes through the trim side only at the four marked locations.
- For 02CM models, mark and drill a 3/8-inch (1/2-inch max) hole straight and level through the door at the specified location (5 inches down, 0.688 inches offset).
Trim installation
For 02CM (Trim with pull):
- Place the trim onto the door.
- Assemble the top of the pull to the trim using the provided screw.
- Fasten the bottom of the trim using the provided screw and finish washer.
For 01CM (Trim without pull):
- Skip the pull assembly steps and proceed directly to installing the backplate.
Final assembly:
- Install the backplate using four 1/4-20 x 1-inch long screws and lockwashers provided with the exit device.
- Install the mortise lock using the hardware supplied with the exit device. Fasten screws loosely.
Manufacturer information
Detex Corporation
Practical help
Common problems
Unsure of correct trim/device centerline location
Use the measurement method described in the manual to determine the correct location relative to the lock pocket.
Difficulty with 02CM pull assembly
Ensure the top of the pull is assembled to the trim before fastening the bottom with the finish washer.
Before use
- Wear safety glasses
- Verify you have the correct trim model (01CM or 02CM)
- Ensure the door pocket is measured correctly
- Use the plastic template for marking holes
- Check that you have the correct drill bits for 3/8-inch holes
Specs in practice
- Recommended height
- 40 inches from the finished floor to the trim/device centerline.
- Drill hole size
- 3/8-inch diameter for trim holes; 1/2-inch maximum for through-door holes.
- Fastener types
- Includes 1/4-20 machine screws of various lengths (1", 2-1/4", 2-3/4") depending on the model.
Images and diagrams
- Page 2 shows the exploded view of parts for 01CM and 02CM functions.
- Page 3 provides a step-by-step visual guide for marking, drilling, and mounting the trim.
Model compatibility
- 01CM is a blank trim (no pull).
- 02CM includes a pull handle.
- Mortise lock and mounting hardware are supplied with the exit device, not the trim kit.
