DEXTER 150MD2.52 Mini Drill

Product Overview

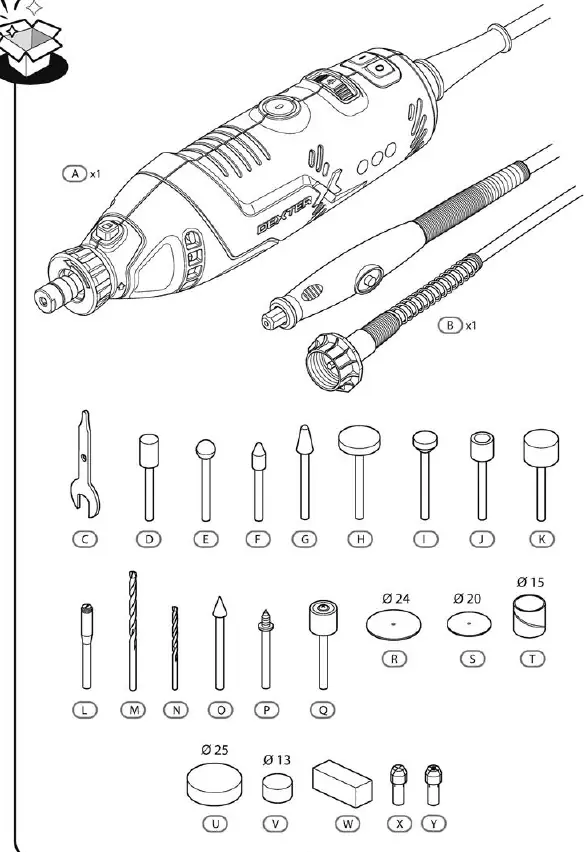

The Dexter 150MD2.52 is a versatile 150W mini drill designed for precision tasks such as drilling, grinding, sanding, and polishing. It comes with a wide range of accessories to handle various materials and applications. The tool features an adjustable speed control, allowing for precise operation depending on the task requirements.

Assembly and Setup

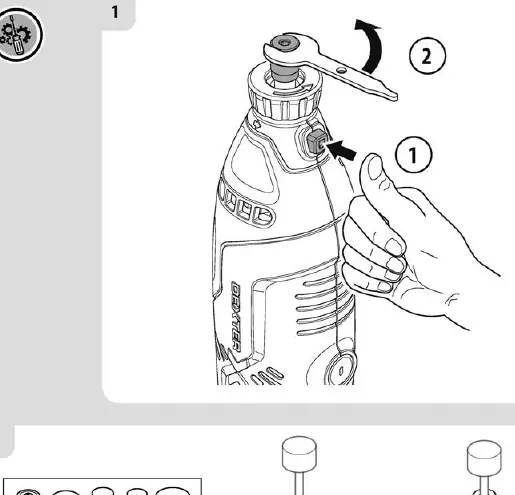

Before using the tool, ensure it is disconnected from the power supply. To install or change accessories:

• Press and hold the spindle lock button.
• Use the provided wrench to loosen the collet nut.
• Insert the desired accessory shank into the collet.
• Tighten the collet nut securely while holding the spindle lock button.

The device also supports the use of a flexible shaft attachment for intricate work, which can be attached by removing the front cap and securing the shaft to the spindle.

Operation

To operate the mini drill:

• Connect the tool to a suitable power outlet.

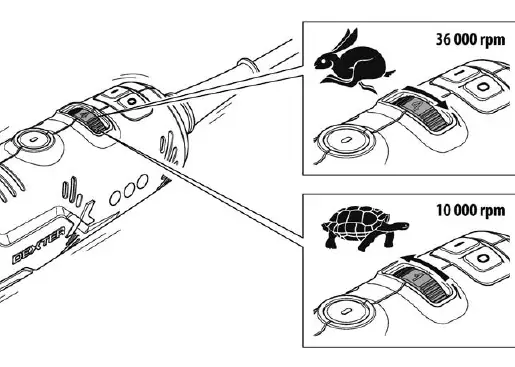

• Use the speed control dial to adjust the rotation speed between 10,000 and 36,000 rpm.
• Use lower speeds for tasks like polishing and higher speeds for drilling or cutting.
• Always ensure the accessory is properly seated and tightened before starting the motor.

Maintenance and Safety

Always disconnect the power plug before performing any maintenance or changing accessories. Keep the ventilation slots clean to prevent the motor from overheating. Regularly inspect the tool and accessories for signs of wear or damage. If the power cord is damaged, it must be replaced by a qualified professional. Store the tool in a dry, secure place away from children.

Disposal

This product is recyclable. When it reaches the end of its service life, do not dispose of it with household waste. Take it to a designated recycling center or collection point in accordance with local environmental regulations.
