The DS18 12PRO1400MB-8 is a 12-inch professional mid-bass loudspeaker designed for high-performance audio systems. This document provides the necessary technical specifications and physical dimensions required for proper installation and system integration. Ensure your amplifier is compatible with an 8-ohm load and can handle the RMS power requirements of 700 Watts.
Technical Specifications
The loudspeaker features the following performance characteristics:
- Nominal Diameter: 12 inches (300 mm)
- Nominal Impedance: 8 Ohms
- RMS Power Handling: 700 Watts
- MAX Power Handling: 1400 Watts
- Sensitivity (1w/1m): 100 dB
- Frequency Response: 50Hz - 5KHz
- Recommended Hi Pass Crossover: 60 Hz
Mounting and Dimensions
Proper installation requires accurate cutting of the mounting surface. Refer to the following dimensions:
- Overall Diameter: 12.3 inches (314 mm)
- Front Mount Baffle Cutout: 11.22 inches (285 mm)
- Mounting Depth: 5.2 inches (132 mm)
- Overall Depth: 5.74 inches (146 mm)
- Motor Diameter: 7.87 inches (200 mm)
Thiele & Small Parameters
These parameters are essential for enclosure design and system tuning:
- Equivalent Volume (Vas): 97.4L / 3.43ft3
- Excursion (Xmax): 4.5 mm
- Free Air Resonance (Fs): 49 Hz
- Mechanical Factor (Qms): 9.08
- Electrical Factor (Qes): 0.41
- Total Factor (Qts): 0.39
- Mechanical Mass (Mms): 41.619 g
- Mechanical Compliance (Cms): 0.214 mm/N
- BL Factor: 14.64
- Voice Coil Inductance (Le): 0.89 mH
- DC Resistance (Re): 5.2 ohm
Warranty and Safety
For detailed warranty information, please visit the official DS18 website at DS18.com. Note that the manufacturer reserves the right to change products and specifications at any time without notice. This product contains materials that may cause cancer and reproductive harm; please refer to P65Warning.ca.gov for more information.
Official resources from the manual
Manufacturer information
DS18
Practical help
Common problems
Distortion or speaker damage
Ensure the high-pass crossover is set to at least 60 Hz to prevent over-excursion of the cone.
Impedance mismatch
Verify that your amplifier is stable at 8 Ohms, as this speaker has a nominal impedance of 8 Ohms.
Before use
- Verify amplifier power matches the RMS rating of 700W.
- Ensure the mounting surface is rigid and can support the speaker weight.
- Check that the baffle cutout diameter is exactly 11.22 inches (285 mm).
- Set the high-pass crossover to 60 Hz before initial operation.
- Confirm the amplifier configuration is 8 Ohms.
Specs in practice
- Recommended Hi Pass Crossover
- 60 Hz - The minimum frequency the speaker should play to avoid damage.
Images and diagrams

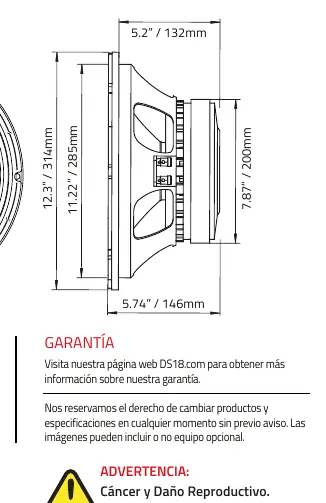

- The dimension diagram illustrates the overall diameter (12.3 inches), baffle cutout (11.22 inches), mounting depth (5.2 inches), and motor diameter (7.87 inches).
