DWVO 12x16ft Gazebo Assembly Guide
Comprehensive assembly guide for the DWVO 12x16ft Gazebo, including step-by-step installation instructions, safety precautions, and maintenance advice.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides assembly instructions for the DWVO 12x16ft Gazebo. The assembly is a multi-part process requiring 4-5 people and at least 300 minutes. Ensure all parts are present before starting and follow the steps in the exact order provided.
Safety Advice
- Use work gloves and safety goggles during assembly.
- Do not assemble in windy or wet conditions.
- Do not touch overhead power cables with aluminum profiles.
- Position and fix the gazebo on a flat, level surface.
- Keep children away from the assembly area.
- Do not climb or stand on the gazebo.
- Ensure no hidden pipes or cables are in the ground before inserting pegs.
- Do not store hot items like grills or blowtorches inside the gazebo.
Assembly Overview
The assembly process involves constructing the frame, installing the roof support structure, and attaching the roof panels. Key steps include:
- Frame Assembly: Connecting the main posts (A) with corner connectors (J) and assembling the perimeter beams (B, B1, B2, B3, C, D, etc.).
- Roof Structure: Installing the top frame (E, L) and roof support beams (E1, E2, G1, G2, F, F1, F2).

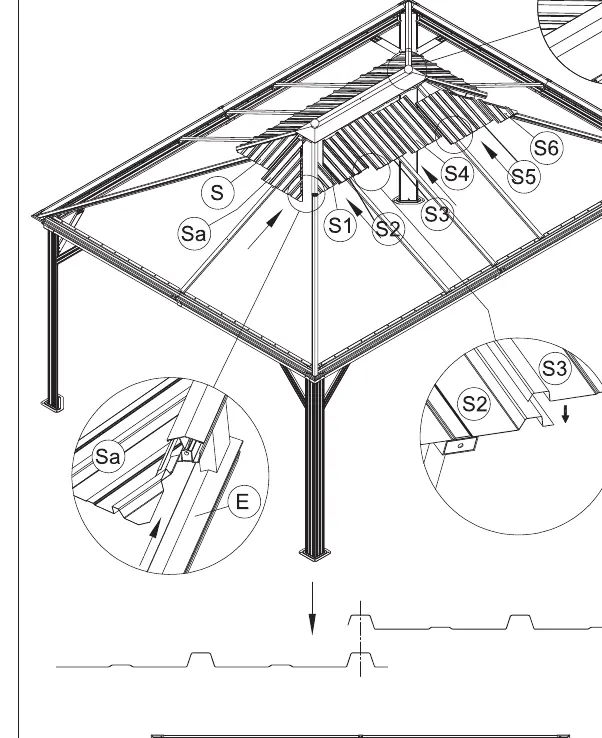

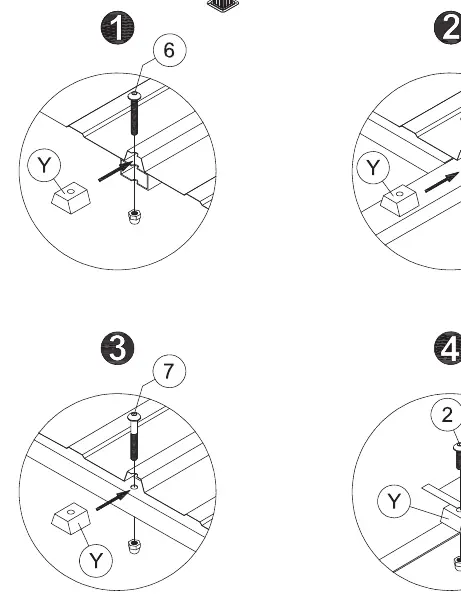

- Roof Panels: Inserting roof panels (Q, R, S series) into the grooves and securing them with plugs (Y) and screws.
- Finishing: Attaching curtains and netting using hooks (U) and clips (T, T1).
Maintenance
- Keep the roof clear of snow and leaves.
- Regularly check all connections and screws for stability.
Contact Information
For defects or missing parts, contact customer service at [email protected] or via Amazon Message by clicking the Sold by store name under the buy box, then ask a question.
Manufacturer information
DWVO
Practical help
Common problems
Missing or damaged parts
Contact customer service at [email protected] or via Amazon Message.
Difficulty during assembly
Ensure 4-5 people are working together and follow the sequence of steps exactly as illustrated.
Unstable structure
Ensure the gazebo is positioned and fixed on a flat, level surface.
Before use
- Verify all parts are present in the 5 boxes.
- Ensure you have the required tools: gloves, power drill, and step ladder.
- Choose a sunny, level location away from overhanging trees.
- Check for hidden underground pipes or cables.
- Ensure 4-5 people are available for assembly.
Specs in practice
- Assembly Time
- At least 300 minutes required.
Images and diagrams
- Pages 3-5: Parts identification list.
- Pages 6-28: Step-by-step assembly sequence (Steps 1-22).
- Page 2: Overall dimensions and required tools.
Model compatibility
- Not for use in areas exposed to excessive wind.
- Not intended for supporting heavy loads or climbing.
