This document provides essential operating instructions for the Ecolab Advanced Main Station/Satellite. It is intended for instructed personnel only. Always follow detergent supplier instructions and wear appropriate protective clothing and footwear.
Safety instructions
- Never direct the water jet towards people, pets, or electrical installations.
- Do not block the spray handle release mechanism.
- Always activate the locking device on the spray handle when changing nozzles.
- Use the system water exclusively for cleaning purposes.

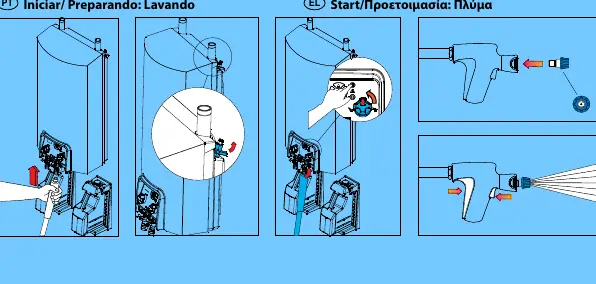

Start and preparation
The system supports rinsing and foaming operations. Ensure the spray handle is correctly connected. For rinsing, ensure the water flow is directed safely. For foaming, ensure the chemical supply is properly engaged.

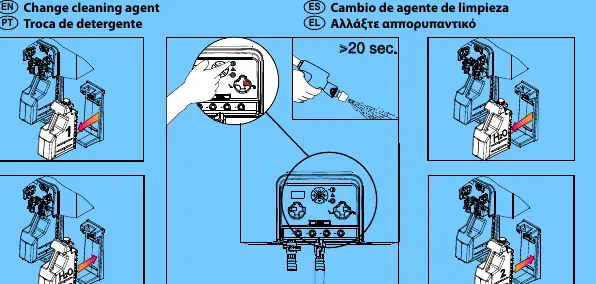

Changing cleaning agents
To change the cleaning agent, remove the current container and insert the new one. Ensure the system is flushed for at least 20 seconds to clear the previous agent before switching to a new one.
Disinfection using P3-User Pack
To perform disinfection, attach the appropriate nozzle to the spray handle. Ensure the P3-User Pack is correctly connected to the station before initiating the spray process.
Stop procedure
To stop the system, disconnect the chemical supply and flush the system with water for at least 20 seconds to ensure no chemicals remain in the lines. Secure the equipment after use.
Contact information
Ecolab GmbH & Co. OHG, P.O. Box 13 04 06, D-40554 Düsseldorf. Tel.: +49 211 98 93 203, Fax: +49 211 98 93 223, www.ecolab.com.
Official resources from the manual
Manufacturer information
Ecolab Inc.
Practical help
Common problems
Chemical residue in lines
Always flush the system with water for at least 20 seconds when changing agents or stopping the procedure.
Nozzle replacement safety
Always activate the locking device on the spray handle before attempting to change nozzles.
Before use
- Ensure personnel are properly instructed.
- Wear appropriate protective clothing and footwear.
- Check that the water supply is connected.
- Verify the correct detergent or P3-User Pack is installed.
- Ensure the spray handle is free of obstructions.
Images and diagrams
- Page 1: Rinsing and foaming setup illustrations.
- Page 2: Procedures for changing cleaning agents, disinfection with P3-User Pack, and system shutdown.
Model compatibility
- The manual uses the Atlantic 450 spray handle as an illustration for all compatible spray handles.
