Ecolab Hybrid Eco Satellite User Guide
Essential operating instructions for the Ecolab Hybrid Eco satellite cleaning system, covering safety, startup, detergent management, and shutdown procedures.
Table of contents
Manual images
Jump to the sectionProduct Overview
The Ecolab Hybrid Eco is a satellite cleaning system designed for professional use. It is intended exclusively for cleaning purposes using water and appropriate detergents. The system must only be operated by trained and instructed personnel.
Safety Precautions
Strict adherence to safety protocols is mandatory to prevent injury or damage:
- Always wear appropriate protective clothing and footwear.
- Never direct the water jet toward people, animals, or electrical installations.
- Do not block the spray handle activation trigger.
- Always engage the locking mechanism on the spray handle when changing nozzles.
- Ensure the water supply is properly connected to the unit before operation.
- Follow all instructions provided by the detergent supplier.

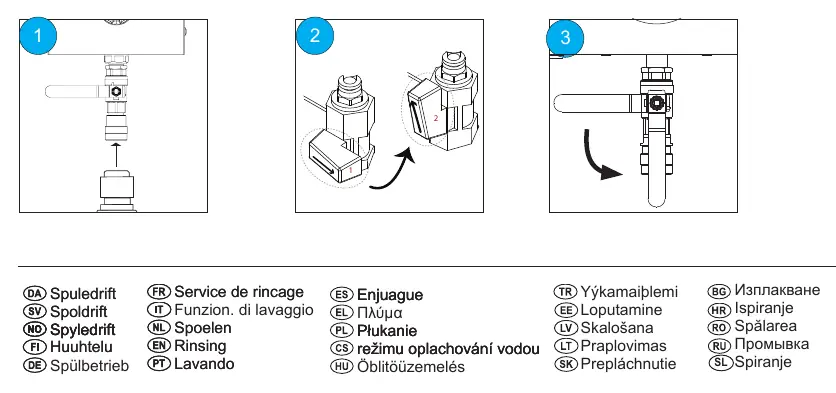

Startup and Operation
The system supports different modes, including rinsing and foaming. To start the system, ensure the water supply is connected. The spray handle used in the illustrations is based on the Atlantic 450 model. Users should follow the specific sequence for rinsing or foaming as indicated by the system controls.
Detergent Management

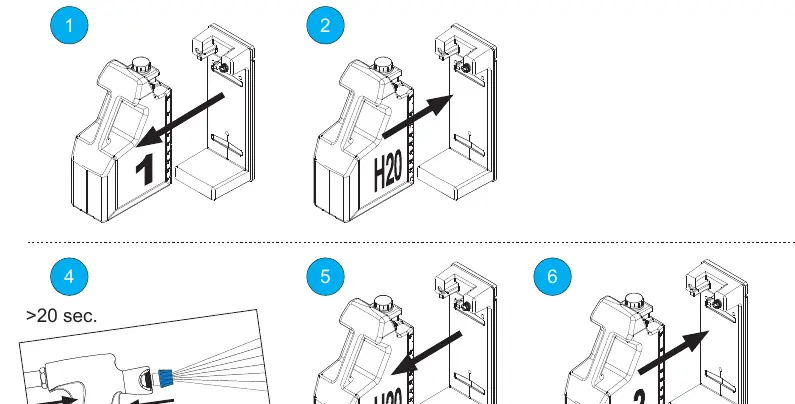

To change the cleaning agent, follow the designated procedure: insert the new detergent container, ensure the connection is secure, and flush the system for at least 20 seconds to clear the lines.
Shutdown Procedure
After completing cleaning tasks, follow the shutdown procedure to safely deactivate the system. This typically involves disconnecting the detergent supply and flushing the system with water for at least 20 seconds, followed by a final release of pressure (at least 5 seconds) to ensure the unit is safely depressurized.
Manufacturer information
Ecolab Inc.
Practical help
Common problems
Water jet not working
Ensure the water supply is connected to the unit and the main valve is open.
Detergent not dispensing
Check if the detergent container is correctly inserted and that the system has been properly primed.
Before use
- Verify that the water supply is connected to the unit.
- Ensure you are wearing appropriate protective clothing and footwear.
- Check that the spray handle is in good condition and the trigger is not blocked.
- Confirm that the correct detergent is installed for the intended task.
Images and diagrams
- The manual uses the Atlantic 450 spray handle as a reference illustration for all Hybrid Eco models.
- Startup diagrams show the connection sequence for water and detergent.
- Shutdown diagrams illustrate the necessary flushing time (>20 seconds) to clear chemicals from the lines.
Model compatibility
- The system is designed for use with professional cleaning detergents; always follow the supplier's specific instructions.
