User Manual for Enbrighten 14-inch LED Flush-Mount Ceiling Light
Quick guide for the Enbrighten 14-inch LED Flush-Mount Ceiling Light. Includes installation steps, hardware list, light temperature settings, and technical specifications for model 66140-1.
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Enbrighten 14-inch LED Flush-Mount Ceiling Light is a direct-wire lighting fixture featuring adjustable color temperature. This guide provides essential information for installation and operation. Ensure power is disconnected at the circuit breaker before beginning any installation work.
Installation
The installation process requires basic tools and the included hardware. Ensure you have a screwdriver and pliers ready before starting.
- Tools needed: Screwdriver, pliers.
- Included hardware: The package contains the necessary screws and mounting components required for a standard ceiling installation.
- Installation type: This is a direct-wire fixture. Ensure all electrical connections are made according to local electrical codes.
Light Temperature Adjustment
This fixture features an integrated switch that allows you to select your preferred light color temperature. You can adjust the light between the following settings:
- 2700K (Warm White)
- 3000K
- 3500K
- 4000K
- 5000K (Daylight)
Use the integrated switch on the unit to toggle between these color temperatures to suit your room's ambiance.

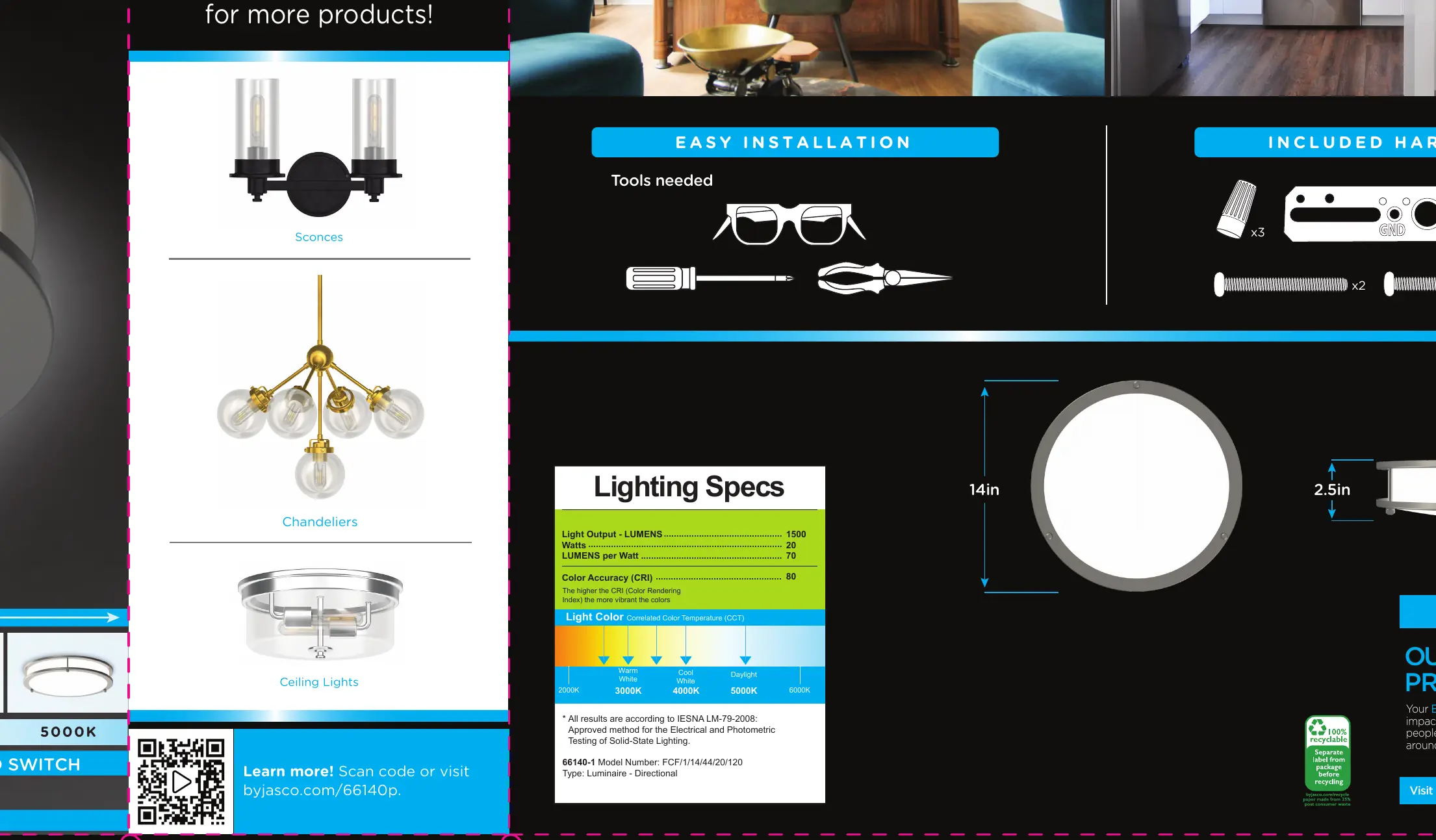

Technical Specifications
- Model Number: 66140-1
- Light Output: 1500 Lumens
- Power Consumption: 20 Watts
- Color Accuracy (CRI): 80
- Electrical Rating: 120V, 60Hz, 0.238A
- Type: Luminaire - Directional
Support
For warranty details or questions, contact U.S.-based Consumer Care at 1-800-654-8483 between 7AM-8PM, M-F, Central Time. You can also visit www.byjasco.com for more information.
Official resources from the manual
Manufacturer information
Enbrighten
Practical help
Common problems
Light does not turn on
Verify that the power is turned on at the circuit breaker and that all wiring connections are secure.
Light temperature is not desired
Use the integrated switch on the fixture to cycle through the available color temperatures (2700K to 5000K).
Before use
- Turn off power at the circuit breaker
- Verify all included hardware is present
- Ensure you have a screwdriver and pliers
- Confirm the installation location is suitable for a direct-wire fixture
Images and diagrams
- The hardware section identifies the screws and mounting brackets included in the box.

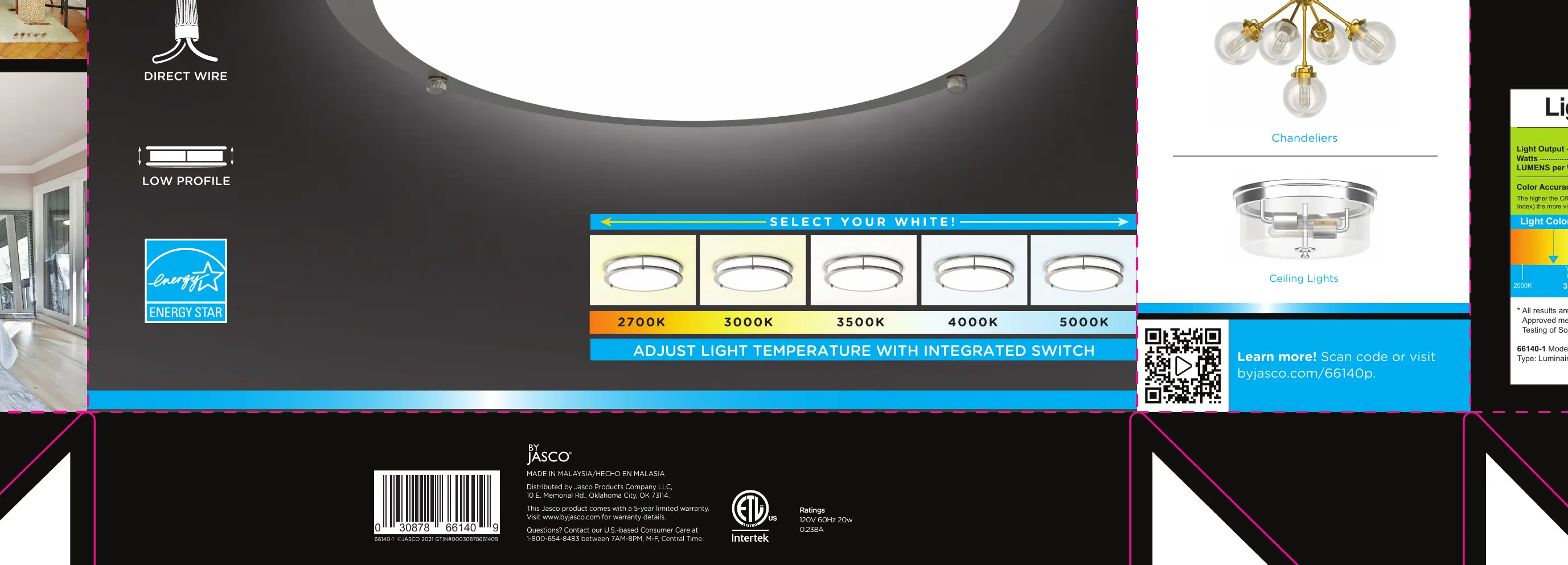

- The color temperature section illustrates the switch used to select the light warmth.
Model compatibility
- Designed for direct-wire installation.
- Operates on standard 120V, 60Hz household power.
