ESAB Rogue ES Series Pulsed Stick Welders

Product Overview

The ESAB Rogue ES series represents a robust and durable power source designed for professional welders. These machines utilize high-performance power electronics and digital micro-processor control to ensure a precise, consistent arc. They provide smooth DC welding power suitable for alloyed and non-alloyed steel, stainless steel, and cast iron.

Key Features

• Pulse MMA Functionality: Enhances heat input control, minimizes distortion in thin materials, reduces spatter, and facilitates out-of-position welding.
• Versatile Performance: Supports electrodes up to 4.0 mm (3.2 mm for 151iP) and offers LIVE TIG functionality for mild or stainless steel.
• Advanced Control: Features adjustable Arc Force and Hot Start settings for superior arc management.
• Portability and Durability: Lightweight design with a carrying handle, rated IP23S for fabrication shop or site applications.
• Power Flexibility: PRO versions support dual voltage (120 V/230 V) and include PFC for stable performance during power fluctuations or when using long extension cables.

Technical Specifications

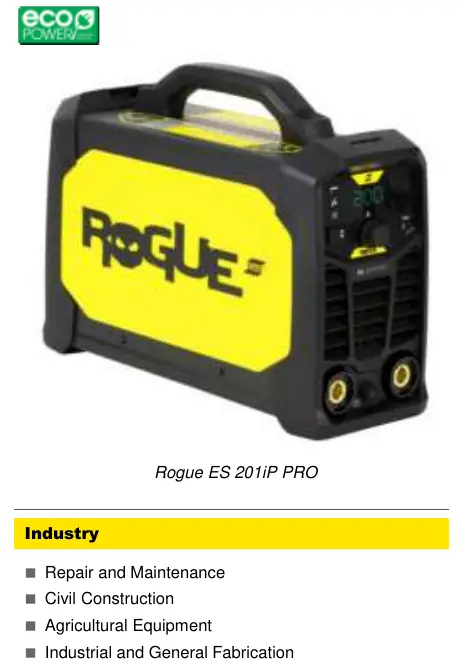

The Rogue ES series is available in four models: 151iP, 181iP, 181iP PRO, and 201iP PRO. All units feature an operating temperature range of -10 to +40 °C and an IP23S enclosure class. Dimensions for all models are 403 x 153 x 264 mm, with weights ranging from 6.8 kg to 8.4 kg depending on the model.

Operation and Maintenance

The machines are designed for ease of use with a digital control panel for adjusting arc parameters. Standard delivery includes the power source, a 3 m mains cable with plug, a shoulder strap, an electrode holder, and a 3 m return cable with clamp. Optional accessories include an analogue remote control, TIG torches, and foot controls for enhanced versatility.

Safety and Compliance

The equipment is generator compliant (7 kW recommended) and designed to withstand demanding environments. Users should refer to the specific instruction manual for 120 V operation details and ensure proper maintenance of cables and connections to avoid welding defects.
