FLEX PE 2 18-EC Cordless Polisher

The FLEX PE 2 18-EC is a professional cordless polisher designed for industrial and trade applications. It features a powerful 18V motor, variable speed control, and is compatible with various polishing accessories like sponges, lambskins...

Table of contents

Product Description

The FLEX PE 2 18-EC is a high-performance cordless polisher engineered for professional use in industrial and trade environments. It is designed for a wide range of polishing tasks using sponges, lambskins, woolskins, felt plates, and buffing discs. The tool is compatible with polishing accessories rated for at least 1800 rpm.

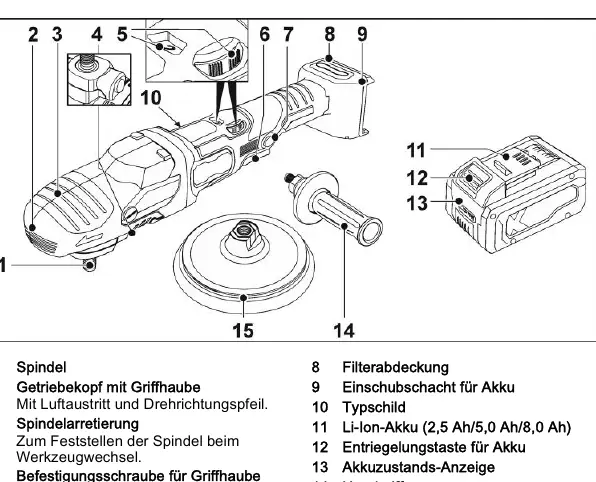

Overview of the FLEX PE 2 18-EC components
Overview of the FLEX PE 2 18-EC components

Technical Specifications

  • Voltage: 18V
  • Tool Holder: M14
  • Max. Tool Diameter: 160 mm
  • Rated Speed: 1800 rpm
  • No-load Speed: 550 - 1800 rpm
  • Weight (without battery): 2.1 kg

Safety Information

WARNING! Before using the power tool, read and follow the operating instructions, the provided general safety booklet, and local accident prevention regulations. The tool must be used only as intended and in perfect working order. Immediately repair any faults that impair safety.

Operation

Ensure the battery is fully charged before initial use. The auxiliary handle can be attached for improved handling. To attach the tool holder, press and hold the spindle lock, screw the holder clockwise onto the spindle, and tighten by hand. Always ensure tools are centered on the holder to prevent imbalances that could damage the tool or impair results.

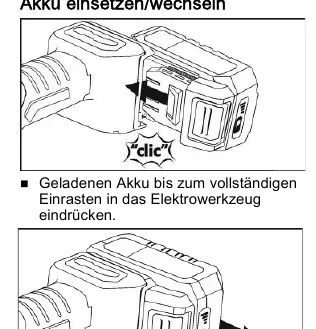

Inserting and removing the battery
Inserting and removing the battery

Maintenance and Care

WARNING! Remove the battery before performing any work on the power tool. Regularly clean the tool and the grille in front of the vent slots. Blow out the housing interior and motor with dry compressed air. Regularly clean the filter cover and blow it out with dry compressed air.

Troubleshooting and Disposal

If the tool shuts down due to overload or overheating, switch it off and back on to continue. Dispose of the tool, batteries, and packaging in an environmentally friendly manner according to local regulations. Do not dispose of power tools or batteries in household waste.
