FLEX SE 125 18.0-EC Cordless Angle Grinder

The FLEX SE 125 18.0-EC is a professional-grade cordless surface sander designed for dry surface grinding of metal, stone, and wood, as well as removing paint. It features a 18V battery system, variable speed control, and an integrated...

Table of contents

Product Description

The FLEX SE 125 18.0-EC is a high-performance cordless surface sander engineered for professional use in industry and trade. It is specifically designed for dry surface grinding of metal, stone, and wood, as well as for the dry sanding of paintwork. The tool is compatible with Velcro sandpaper on backing pads and flap sanding discs offered by FLEX.

Technical Specifications

  • Voltage: 18 V
  • Idling Speed: 660–1500 min-1 (4 levels)
  • Max. Grinding Tool Diameter: 125 mm
  • Tool Holder: M14
  • Weight (without battery): 2.2 kg

Safety Information

WARNING! Before using the power tool, read and follow all safety instructions, including the general safety guidelines provided in the enclosed booklet. Always wear personal protective equipment, such as safety goggles, dust masks, and hearing protection. Ensure bystanders maintain a safe distance. Do not use the tool near flammable materials or with liquid coolants.

Operation

Before initial use, ensure the battery is fully charged. Insert the battery until it clicks into place. The tool features a switch rocker for both brief and continuous operation. Speed can be preselected using the speed control button. Always hold the tool with both hands during operation. For corner sanding, the pivoted edge segment can be adjusted.

Maintenance and Care

Regularly clean the power tool and its ventilation slots using dry compressed air. The filter cover should also be cleaned periodically. Do not use water or liquid detergents for cleaning. Repairs must only be performed by an authorized customer service center. Do not loosen screws on the motor housing during the warranty period.

Disposal

Do not dispose of electric power tools in household waste. In accordance with European Directive 2012/19/EU, used tools must be collected separately and recycled in an environmentally friendly manner. Batteries must also be recycled according to Directive 2006/66/EC.

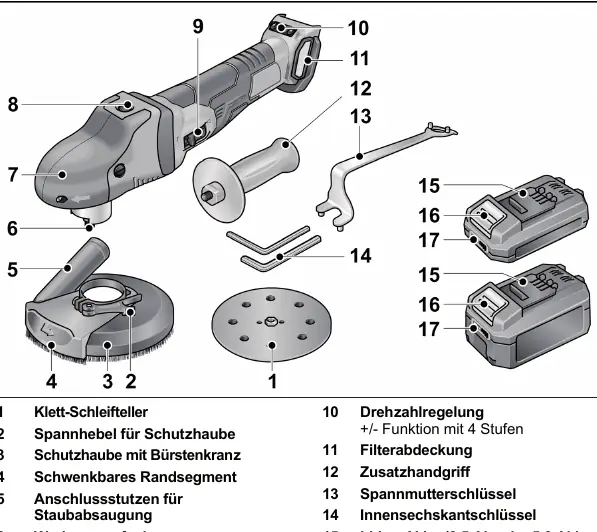

Overview of the FLEX SE 125 18.0-EC components
Overview of the FLEX SE 125 18.0-EC components
Battery insertion and removal
Battery insertion and removal

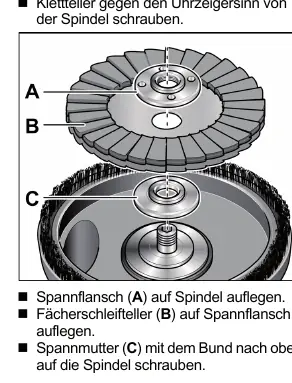

Assembly of flap sanding discs
Assembly of flap sanding discs
