FLEX PP 40 12 / PP 110 18-EC Battery Pipe Clamp

Product Description

The FLEX PP 40 12 and PP 110 18-EC are professional-grade cordless pipe presses designed for industrial and trade use. These tools are engineered for the precise pressing of pipes and fittings using compatible pressing jaws, intermediate jaws, and press collars.

Technical Data

The PP 40 12 operates at 12V with a nominal force of 19 kN, while the PP 110 18-EC operates at 18V with a nominal force of 32 kN. Both models feature Bluetooth connectivity for device management via the FLEX Presscontrol app. They are rated IP20 and designed for operation within a temperature range of -10°C to +40°C.

Safety Information

Users must read all safety warnings and instructions before operation. The tool must only be used by specialists in perfect technical condition. Always remove the battery before performing any maintenance or adjustments. Protect the battery from heat, fire, water, and moisture to prevent explosion risks. Use only original FLEX batteries and recommended chargers.

Operation

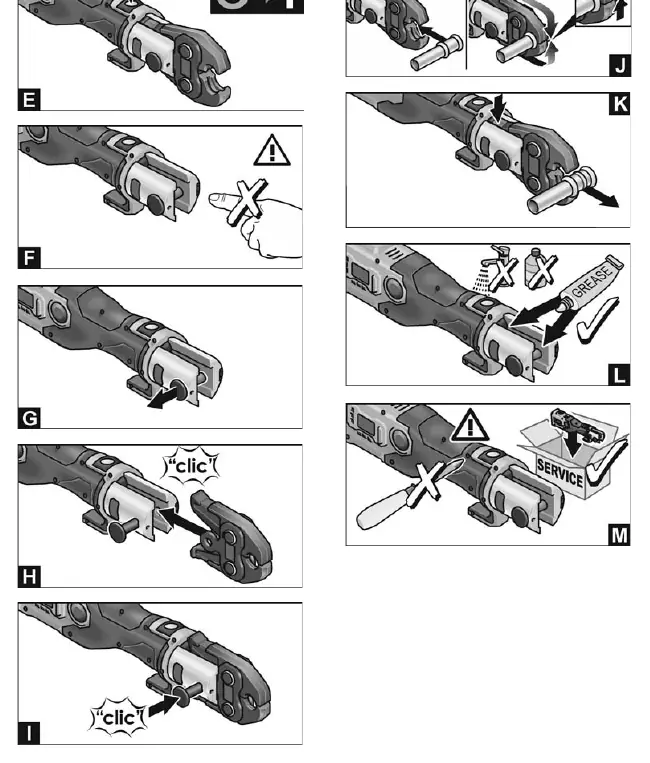

To operate, insert a charged battery until it clicks into place. Press the start button to activate the tool. The press features an automatic pressing system that ensures complete compression. The process can be interrupted at any time by pressing and holding the release button. The tool includes LED indicators for operational status, faults, and battery charge levels.

Maintenance and Care

Regular maintenance is essential for safe operation. The next service date is indicated on the device; maintenance must be performed at least every two years. Repairs should only be carried out by authorized service centers. Do not use water or liquid cleaning agents for cleaning. Keep lubrication points maintained as specified.

Troubleshooting

The tool uses LED indicators to signal status. A flashing green LED indicates the retaining bolt is not closed correctly. A flashing red LED indicates the device is outside the permitted temperature range. A solid red LED indicates a device error; if pressing the start button does not resolve the issue, the device must be sent for repair.

Disposal

At the end of their service life, power tools and batteries must be disposed of in an environmentally friendly manner. Do not dispose of tools or batteries in household waste. Follow local regulations for recycling electrical and electronic equipment.
