Flomasta 1200MM Steel Panel Radiator Instruction Manual

Quick guide from the manual

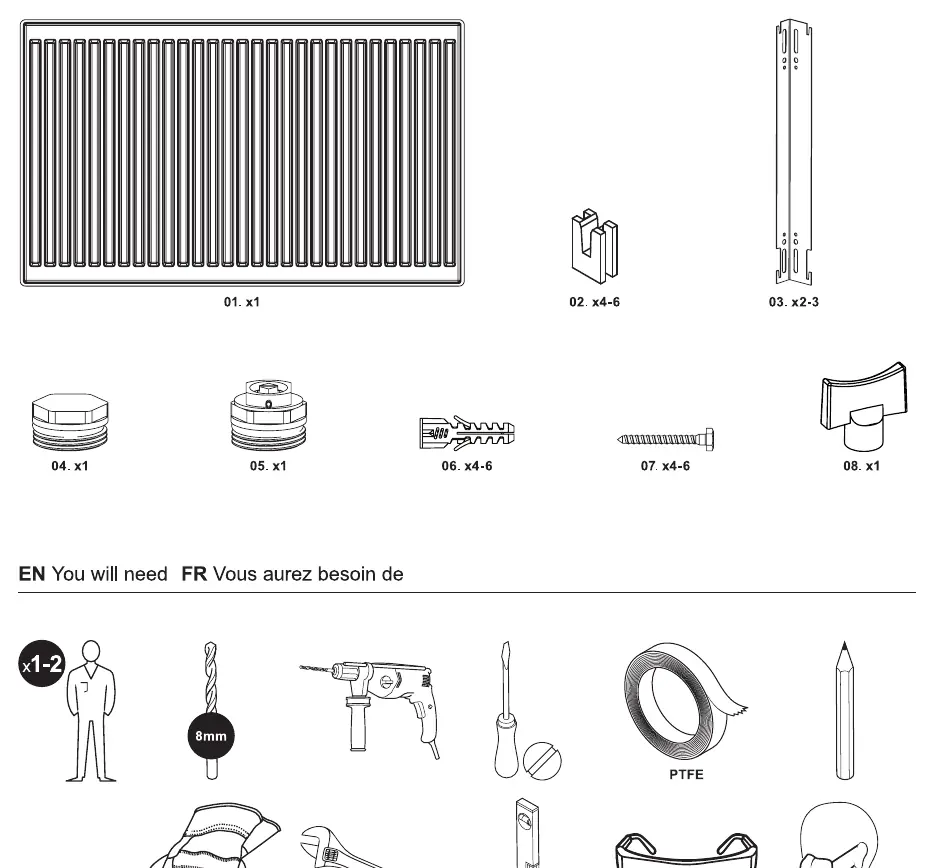

This document provides essential instructions for the installation and maintenance of the Flomasta steel panel radiator. Ensure all components are present before starting. The radiator must be installed by a qualified professional in accordance with relevant standards. It is designed for closed central heating systems; using it in systems with oxygenated water or centralized heating may void the warranty.

Safety

• Keep children and vulnerable persons away from the radiator during and after installation.
• Do not hang heavy objects on the radiator or lean against it.
• Do not cover the radiator, as this reduces heating efficiency and poses a fire risk.
• Ensure the system is isolated before starting any work.
• Use appropriate PPE during installation.

Installation

The radiator is supplied with brackets. Ensure it is mounted on solid walls; for hollow walls, use appropriate fixings. Follow the dimensioned sketches to drill holes at the correct positions. Use a spirit level to ensure the brackets are aligned correctly before securing them to the wall. Once mounted, attach the radiator to the brackets and install the radiator valve and bleed valve.

First use

To put the radiator into operation, open the radiator valve and ensure the central heating system is running. If the radiator does not heat up, bleed the air from the system using the bleed valve until water flows out.

Care and Maintenance

Clean the surface with a soft, damp cloth. Never use solvents, scourers, abrasives, bleach, acids, or strong detergents. When disposing of the radiator, take it to a metal recycling center.

Technical Data

• Maximum operating pressure: 10 Bars.
• Maximum operating temperature: 120°C.
• Compliance: EN 442.
