Flomasta 1298BTU Steel Panel Radiator Installation and User Guide
A comprehensive guide for the Flomasta 1298BTU steel panel radiator, covering installation steps, safety precautions, technical specifications, and maintenance instructions.
Table of contents
Quick guide from the manual
This document provides essential instructions for the installation, operation, and maintenance of the Flomasta steel panel radiator. Before starting, ensure all parts are present and the wall is suitable for mounting. The radiator must be installed by a qualified professional in accordance with relevant standards.
Product description
The radiator is manufactured under quality management systems approved by EN ISO 9001 and environmental management systems approved by EN ISO 14001. It complies with EN 442 standards. Maximum operating pressure is 10 bars, and the maximum operating temperature is 120°C.
Safety
- Keep children away from the appliance.
- Do not use in outdoor areas or centralized heating systems where the product may be damaged by corrosion.
- The surface can reach high temperatures; use caution.
- Do not hang heavy objects on the radiator or cover it, as this restricts air circulation and reduces efficiency.
- Ensure the central heating system is isolated before starting any work.
Assembly

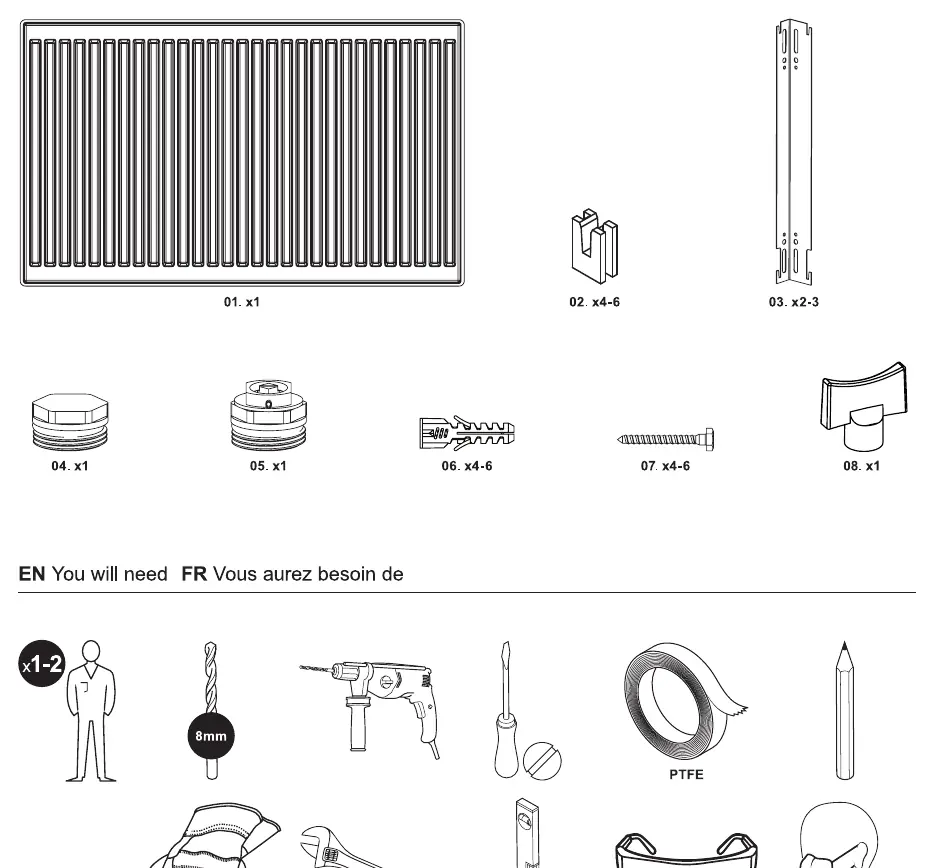

- Identify the required tools: drill with 8mm bit, spirit level, wrench, pencil, PTFE tape, and protective gear.
- Mark the wall positions for the brackets based on the radiator dimensions.
- Drill holes (60mm deep) and insert the provided wall plugs.
- Secure the brackets to the wall using the provided screws.
- Mount the radiator onto the brackets.
- Install the radiator valve and bleed plug.
First use and operation
To put the radiator into use, open the radiator valve and ensure the central heating system is operating. If the radiator does not warm up, bleed the air from the system using a bleed key or screwdriver until water flows out.
Care and Maintenance
Clean the surface with a soft, damp cloth. Never use solvents, scourers, abrasives, bleach, acids, or strong detergents. When disposing of the radiator, take it to a metal recycling center.
Manufacturer information
Flomasta
Practical help
Common problems
Radiator does not get warm
Ensure the central heating system is operating and bleed the radiator to remove trapped air using a bleed key or screwdriver.
Before use
- Verify all parts are present and undamaged.
- Ensure the wall is solid and suitable for mounting.
- Check for pipes and wires before drilling.
- Ensure the central heating system is isolated.
- Wear appropriate PPE (gloves, goggles, mask).
Specs in practice
- Max Operating Pressure
- 10 Bars; do not exceed this pressure.
- Max Operating Temperature
- 120°C; do not exceed this temperature.
- Standard Compliance
- EN 442; ensures quality and safety standards.
Images and diagrams
- Page 3 provides dimension tables (L, X, Y, Z) for different radiator types (11, 21, 22).
- Page 7 shows the wall clearance distances for different radiator types.
- Page 8 illustrates the drilling and bracket mounting process.
Model compatibility
- Not suitable for centralized heating systems.
- Use only in systems where the water circuit has a chemical inhibitor added.
- Not suitable for direct central heating systems (e.g., kitchen/bathroom taps).
