FMS 1700MM P-47 Thunderbolt Operating Manual

Product Overview

The FMS 1700MM P-47 Thunderbolt is a high-performance radio-controlled aircraft designed for hobbyists. This sophisticated model requires careful handling and assembly to ensure safe and reliable operation. It is not a toy and is intended for users aged 14 and older.

Technical Specifications

• Wingspan: 1700mm (66.9in)
• Length: 1520mm (59.8in)
• Weight: 4300g
• Motor: 5060-KV300
• ESC: 85A
• Battery: 22.2V 3300mAh-4000mAh Li-Po
• Center of Gravity (CG): 90mm from the leading edge of the top main wing

Safety Precautions

Always operate the model in open areas away from people, traffic, and buildings. Never operate with low transmitter batteries. Ensure all electrical components are kept dry and away from children. Always perform a pre-flight check of all control surfaces and ensure the propeller is installed securely before operation.

Assembly and Setup

The assembly process involves installing control horns, connecting linkage rods, mounting the horizontal and vertical stabilizers, and attaching the main wing to the fuselage. Ensure all screws are tightened and control surfaces are aligned with the trailing edges. The propeller assembly must be balanced and secured firmly to the motor shaft.

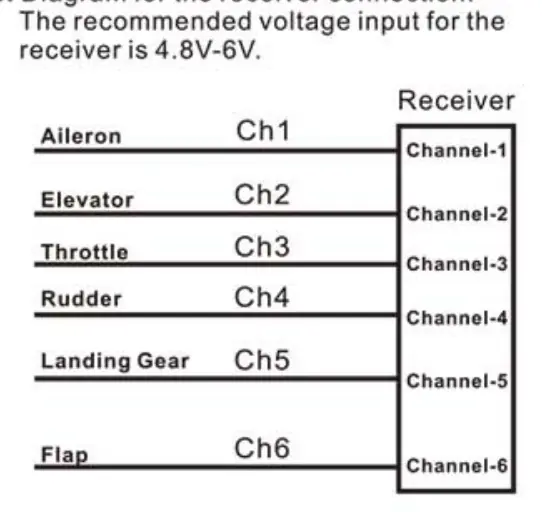

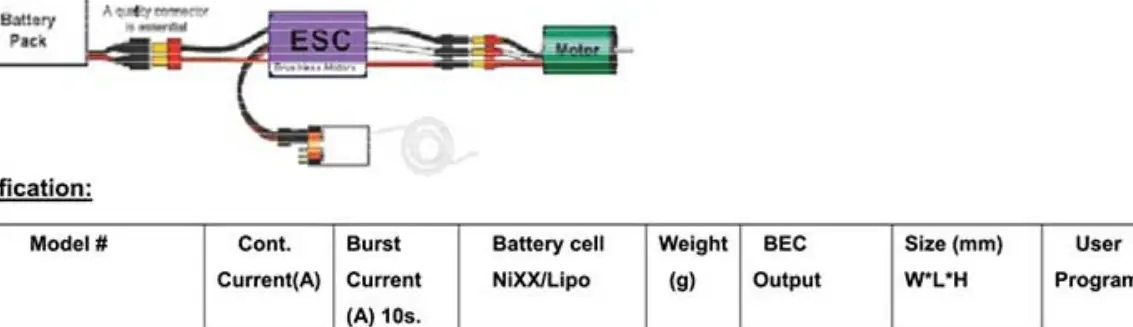

Wiring and ESC Configuration

The aircraft utilizes a multiple connector system for wing electronics. The Electronic Speed Controller (ESC) is pre-programmed but can be adjusted for specific needs, such as brake settings, battery type, and low voltage cutoff thresholds. Always ensure correct polarity when connecting the battery to the ESC to avoid damage.

Maintenance and Troubleshooting

Regularly inspect all linkages, hinges, and electrical connections for wear or looseness. If the motor fails to start, check for loose connections, verify battery charge, and ensure the throttle channel is correctly calibrated on your transmitter. If the ESC overheats, ensure adequate ventilation and check that servos are not drawing excessive current.
